HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) FAN COVER Parts Diagram

Riding Mower, Made in Japan

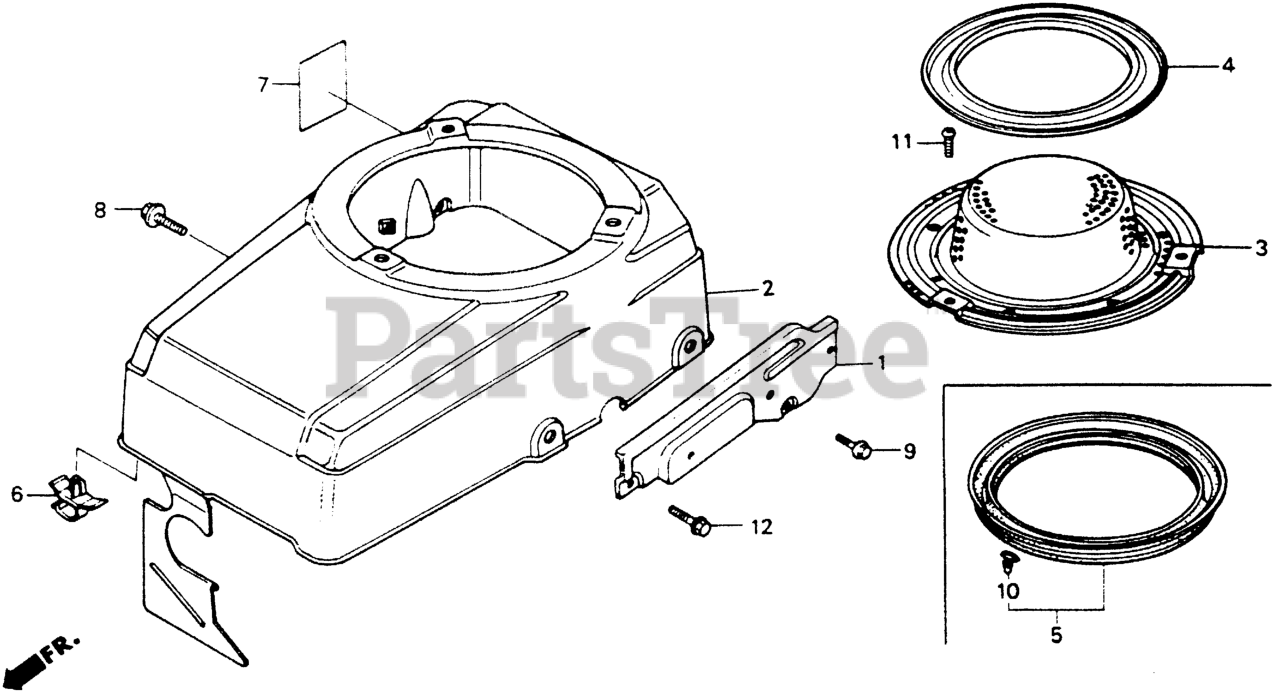

FAN COVER Parts Diagram

  • Title
1

Honda 17520-ZE8-701

STAY, TANK

$

$

Currently unavailable

2

Honda 19610-ZE8-702

COVER, FAN

$

$

Currently unavailable

5

Honda 19635-ZE8-702

SEAL, LAWN COVER

$33.99

$

Usually ships in 3-6 days

0

6

Honda 32161-393-003

CLIP, WIRE HARNESS

$3.99

$

Usually ships in 3-6 days

0

7

Honda 87594-ZE8-000

MARK, OIL CAUTION (Honda Code 2092930).

$

$

Not available

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

9

Honda 90061-161-000

BOLT, FLANGE (6X16) (Honda Code 0810069).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90664-671-003

CLIP, CANOE

$9.49

$

Usually ships in 3-6 days

0

11

Honda 93500-06008-0A

SCREW, PAN (6X8) (Honda Code 0182352).

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93500-06008-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X8) (Honda Code 2421378).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 95701-08022-08

BOLT, FLANGE (8X22)

$2.99

$

In Stock, only 3 left!

0
