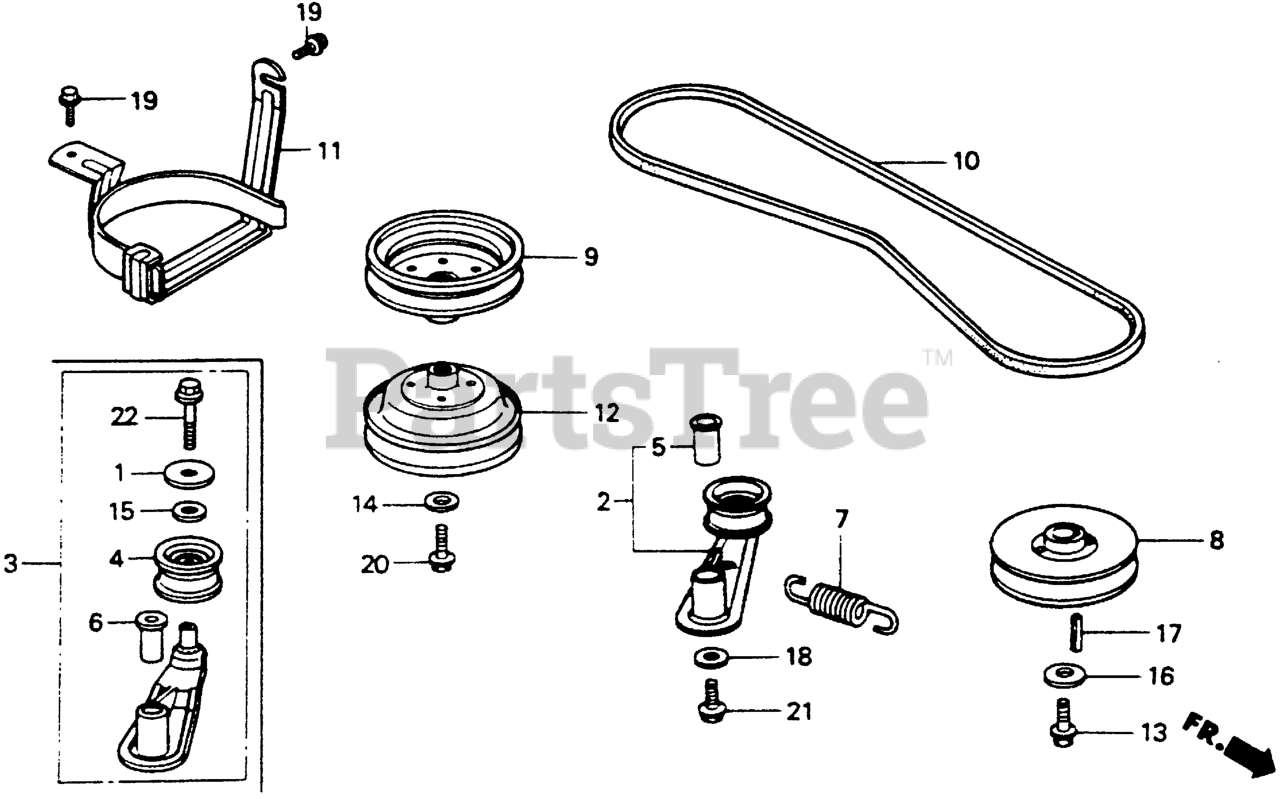

HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) ENGINE PULLEY Parts Diagram

Riding Mower, Made in Japan

ENGINE PULLEY Parts Diagram

  • Title

1

Honda 22465-751-000

GUARD, TENSION ROLLER

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

2

Honda 22510-763-A00

SEE PART DETAILS - PRI; ARM ASSY., TENSIONER

$107.99

$

In Stock, only 1 left!

0

3

Honda 22510-763-A00

SEE PART DETAILS - PRI; ARM ASSY., TENSIONER

Note: (Optional)

$107.99

$

In Stock, only 1 left!

0

4

Honda 22521-751-000

ROLLER, TENSIONER

Note: (Optional)

$40.99

$

Usually ships in 3-6 days

0

5

Honda 22525-751-300

BUSH (15X19X39.5)

Note: Use from Frame SN 5102518.

$11.99

$

In Stock, only 3 left!

0

6

Honda 22525-751-300

BUSH (15X19X39.5)

Note: (Optional)

$11.99

$

In Stock, only 3 left!

0

7

Honda 22531-751-000

SPRING, PRIMARY BELT TENSION

$12.99

$

Usually ships in 3-6 days

0

8

Honda 75170-763-A00

SEE PART DETAILS - PRI; PULLEY, ENGINE (120MM)

$74.99

$

Usually ships in 3-6 days

0

9

Honda 76140-751-700

PULLEY, DRIVEN

$

$

Currently unavailable

10

Honda 76182-751-023

SEE PART DETAILS - PRI; V-BELT, PRIMARY (SB-51)

$65.99

$

In Stock, only 1 left!

0

11

Honda 76183-751-700

STOPPER, BELT (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 76240-751-700

PULLEY, TRANSMISSION
(Superseded to 76240-763-A00)

$

$

Not available

13

Honda 90107-751-003

BOLT, FLANGE (7/16"X28)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90474-704-000

WASHER (6X17) (Honda Code 0181321).

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90501-751-000

WASHER, PLAIN (12MM)

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90761-751-000

KEY (6.3X6.3X30)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.49

$

In Stock, only 2 left!

0

19

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

20

Honda 90012-752-000

BOLT, FLANGE (8X20)

Note: Use from Frame SN 5110968.

$3.99

$

In Stock, only 4 left!

0

20

Honda 90103-751-700

BOLT, FLANGE (8X20)

Note: Use up to Frame SN 5110967.

$

$

Not available

21

Honda 95701-10020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20) (Honda Code 2619153).

$2.99

$

In Stock, only 2 left!

0

22

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

Note: (Optional)

$1.99

$

In Stock, Qty 5

0
