HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CYLINDER HEAD Parts Diagram

Riding Mower, Made in Japan

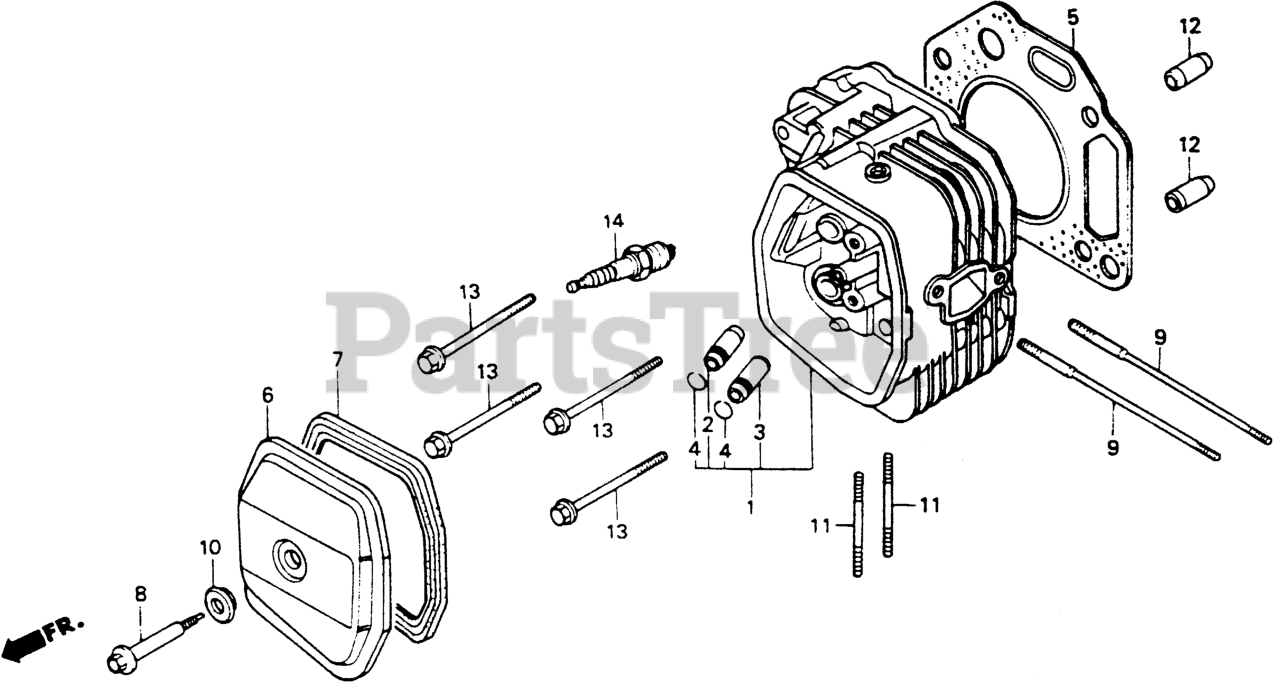

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE8-010

CYLINDER HEAD (Honda Code 2388395).

$

$

Currently unavailable

2

Honda 12204-ZE2-315

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12204-ZE2-306)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE8-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 2546182).

$

$

Not available

6

Honda 12310-ZE8-000

COVER, HEAD (Honda Code 2089613).

$23.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE8-000

GASKET, CYLINDER HEAD COVER (Honda Code 2089670).

$18.99

$

In Stock, only 2 left!

0

8

Honda 90014-ZE8-000

BOLT, HEAD COVER (Honda Code 2092955).

$6.99

$

Usually ships in 3-6 days

0

9

Honda 90042-ZE8-700

BOLT, STUD (8X138.5)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.49

$

In Stock, Qty 14

0

11

Honda 92900-08022-0B

BOLT, STUD (8X22) (Honda Code 1411610).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
