HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CYLINDER Parts Diagram

Riding Mower, Made in Japan

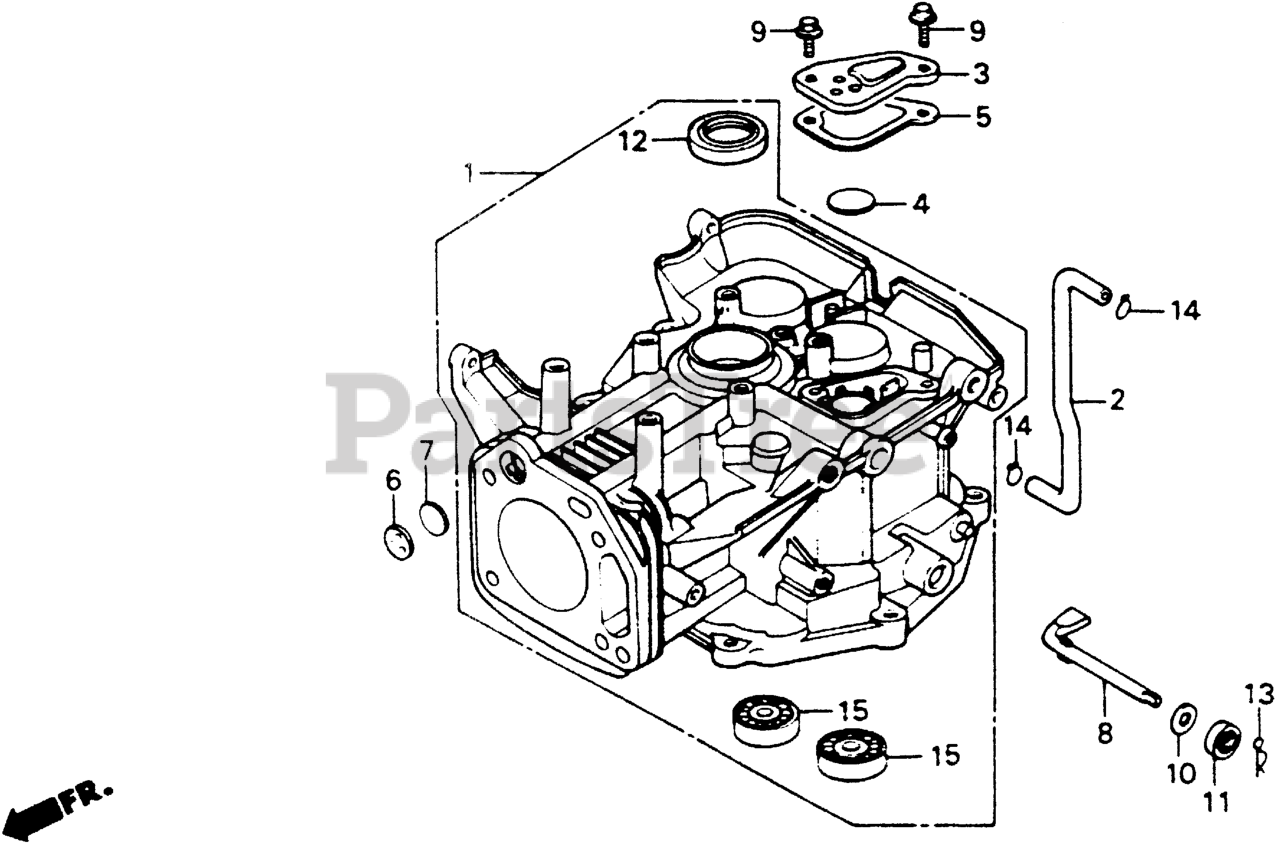

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZE8-000

CYLINDER ASSY.

$

$

Currently unavailable

2

Honda 12315-ZE8-010

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 2324010).

$

$

Currently unavailable

3

Honda 12370-ZE8-000

CAP, BREATHER CHAMBER (Honda Code 2089639).

$

$

Not available

4

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$3.99

$

In Stock, Qty 6

0

5

Honda 12373-ZE8-000

GASKET, BREATHER CAP (Honda Code 2089647).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 12375-ZE8-010

SEE PART DETAILS - PRI; PLATE, ONE-WAY VALVE (Honda Code 2489680).

$

$

Not available

7

Honda 12376-ZE8-000

VALVE, ONE-WAY (Honda Code 2089662).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16541-ZE8-000

SHAFT, GOVERNOR ARM

$14.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 19

0

10

Honda 90406-VM6-000

WASHER, THRUST (8.1MM) (Honda Code 1806934).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

12

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

13

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

14

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 9

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
