HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CUTTER PULLEY Parts Diagram

Riding Mower, Made in Japan

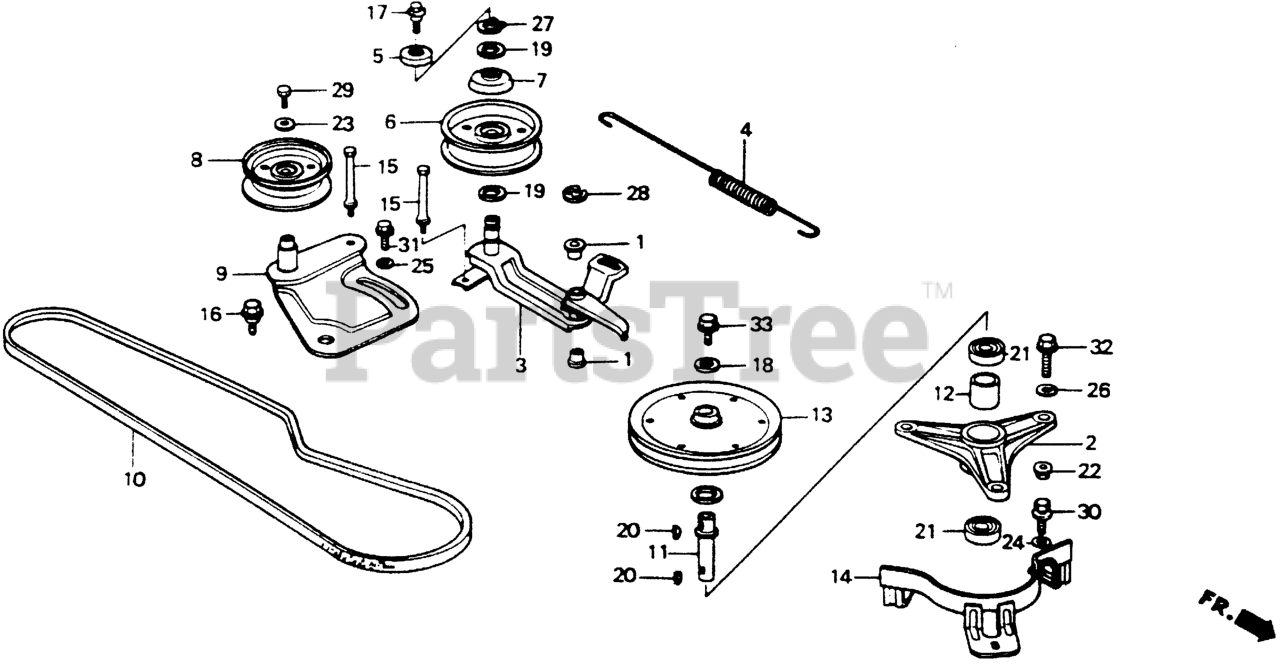

CUTTER PULLEY Parts Diagram

  • Title

1

Honda 24132-750-000

BUSH (15X19X22)

$13.99

$

Usually ships in 3-6 days

0

2

Honda 72711-751-701

SEE PART DETAILS - PRI; HOUSING, BEARING

$

$

Not available

3

Honda 76120-751-020

SEE PART DETAILS - PRI; ARM, TENSION (DECK) (NOT AVAILABLE)

$

$

Not available

4

Honda 76122-751-000

SPRING, TENSIONER ARM

$32.99

$

Usually ships in 3-6 days

0

5

Honda 76126-751-000

GRIP, TENSION ARM (NOT AVAILABLE)

$

$

Not available

6

Honda 76130-751-000

ROLLER, TENSIONER

$55.99

$

Usually ships in 3-6 days

0

7

Honda 76135-751-000

DUST COVER, TENSION PULLEY (NOT AVAILABLE)

$

$

Not available

8

Honda 76160-751-000

PULLEY, TENSIONER

$70.99

$

In Stock, only 2 left!

0

9

Honda 76180-751-000

ARM, BELT ADJUSTING

$

$

Not available

10

Honda 76181-751-003

V-BELT, BLADE (SB-70)

$76.99

$

Usually ships in 3-6 days

0

11

Honda 76214-751-306

SHAFT, BLADE

Note: (Optional)

$

$

Not available

11

Honda 76214-751-700

SHAFT, BLADE (112.5MM)

$95.99

$

Usually ships in 3-6 days

0

12

Honda 76213-751-700

COLLAR, BLADE SHAFT

$13.99

$

In Stock, Qty 5

0

13

Honda 76221-763-A00

PULLEY, CUTTER DECK (120MM)

$113.99

$

Usually ships in 3-6 days

0

14

Honda 76251-751-A00

COVER, DECK PULLEY

$

$

Currently unavailable

15

Honda 90109-751-000

BOLT, BELT STOPPER

$6.49

$

Usually ships in 3-6 days

0

16

Honda 90110-751-000

BOLT, ADJUSTING ARM

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90111-KE1-000

BOLT, FLANGE (6MM)

$

$

Not available

18

Honda 90521-427-770

WASHER (10.3MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90503-751-000

WASHER (17.3X25)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$28.99

$

In Stock, only 2 left!

0

23

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 10

0

24

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

25

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

In Stock, Qty 7

0

28

Honda 94540-12018

E-RING (12MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

32

Honda 95701-10028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X28)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$3.49

$

Usually ships in 3-6 days

0
