HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CLUTCH Parts Diagram

Riding Mower, Made in Japan

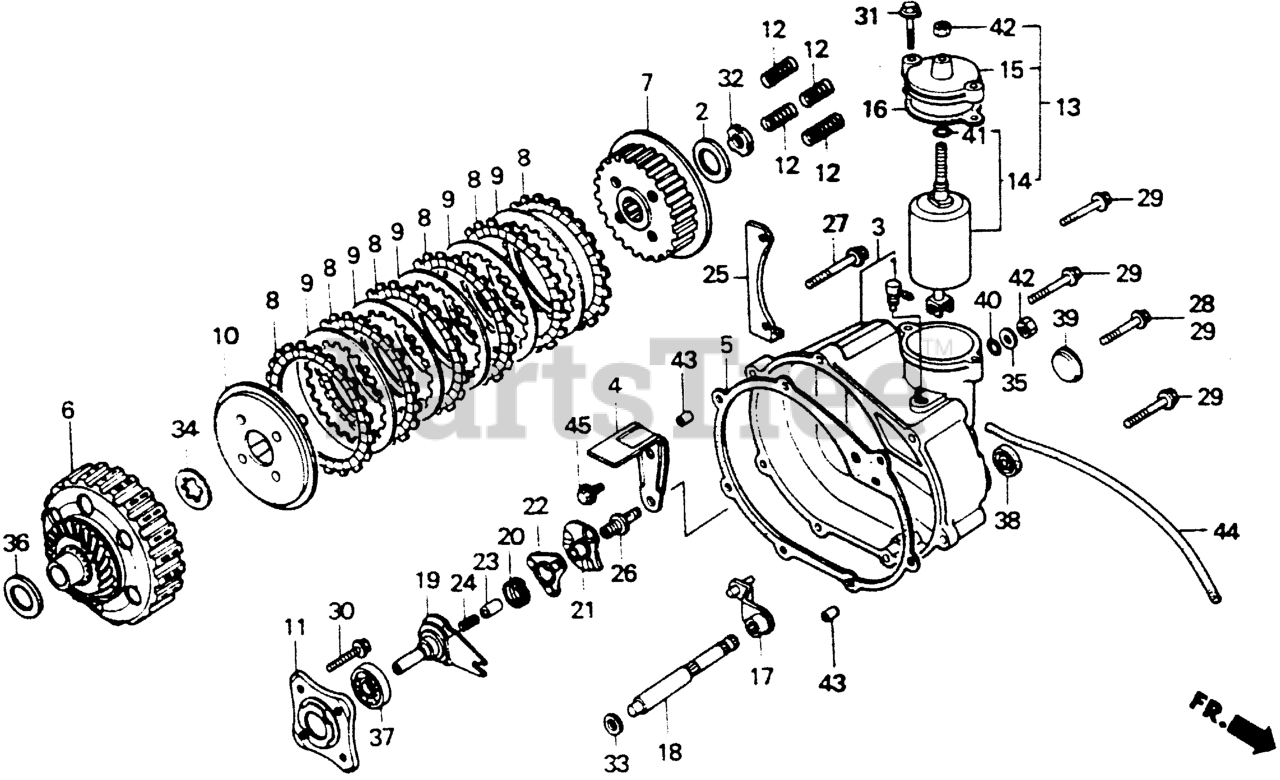

CLUTCH Parts Diagram

  • Title

1

Honda 11106-GM2-300

JOINT, BREATHER

$8.49

$

Usually ships in 3-6 days

0

2

Honda 15451-107-000

WASHER, OIL FILTER ROTOR LOCKING

$5.49

$

Usually ships in 3-6 days

0

3

Honda 213A1-751-000

COVER, CLUTCH

$

$

Not available

4

Honda 21314-751-000

GUIDE, OIL

$

$

Not available

5

Honda 21123-763-A40

GASKET, CLUTCH COVER

$24.99

$

Usually ships in 3-6 days

0

6

Honda 22100-751-003

CLUTCH (OUTER)

$

$

Not available

7

Honda 22121-KCS-650

SEE PART DETAILS - PRI; CENTER, CLUTCH

$47.99

$

Usually ships in 3-6 days

0

8

Honda 22201-751-003

DISK, CLUTCH FRICTION

$

$

Not available

9

Honda 22311-KN4-680

SEE PART DETAILS - PRI; PLATE, CLUTCH

$8.99

$

Usually ships in 3-6 days

0

10

Honda 22350-751-013

PLATE, CLUTCH PRESSURE

$47.99

$

Usually ships in 3-6 days

0

11

Honda 22361-437-000

PLATE, CLUTCH LIFTER

$18.99

$

Usually ships in 3-6 days

0

12

Honda 22401-751-701

SPRING, CLUTCH

$4.99

$

Usually ships in 3-6 days

0

13

Honda 22700-751-013

DAMPER SET, CLUTCH (N/A: SEE COMPONENTS)

$

$

Currently unavailable

14

Honda 22710-751-013

DAMPER ASSY., CLUTCH

$95.99

$

Usually ships in 3-6 days

0

15

Honda 22711-751-000

BRACKET, DAMPER (UPPER)

$

$

Not available

16

Honda 22715-751-010

SEE PART DETAILS - PRI; GASKET, CLUTCH DAMPER

$7.49

$

Usually ships in 3-6 days

0

17

Honda 22811-751-000

LEVER, CLUTCH

$

$

Not available

18

Honda 22814-751-000

SHAFT, CLUTCH

$

$

Not available

19

Honda 22820-751-700

PLATE, CLUTCH CAM

$

$

Not available

20

Honda 22825-046-000

SPRING, CAM PLATE SIDE

$2.99

$

Usually ships in 3-6 days

0

21

Honda 22830-957-670

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

$

$

Not available

22

Honda 22860-046-000

RETAINER, CLUTCH BALL

$9.49

$

Usually ships in 3-6 days

0

23

Honda 25551-GEL-A80

THROUGH, OIL

$8.49

$

Usually ships in 3-6 days

0

23

Honda 25551-918-007

SEE PART DETAILS - PRI; THROUGH, OIL

$

$

Not available

24

Honda 25555-065-000

SPRING, OIL THROUGH

$1.99

$

Usually ships in 3-6 days

0

25

Honda 50135-751-700

STAY C, TRANSMISSION

$

$

Not available

26

Honda 50673-751-000

BOLT, CLUTCH ADJUSTING

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90018-ZG0-000

BOLT, FLANGE (6X42)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

29

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

30

Honda 90050-751-000

BOLT, SPECIAL FLANGE (6X28) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

32

Honda 90231-KCS-651

SEE PART DETAILS - PRI; NUT, LOCK (16MM)

$5.49

$

In Stock, only 1 left!

0

33

Honda 90412-KZL-840

WASHER (10MM)

$0.99

$

In Stock, only 2 left!

0

33

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

34

Honda 90461-751-700

WASHER, SPLINE (20MM)

$

$

Not available

35

Honda 90485-GB4-790

WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90540-751-000

SHIM, MAINSHAFT (20.2X30X1.25) (A)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90541-751-000

SHIM, MAINSHAFT (20.2X30X1.30) (B)

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

36

Honda 90542-751-000

SHIM, MAINSHAFT (20.2X30X1.35) (C)

Note: (Optional)

$

$

Not available

36

Honda 90543-751-000

SHIM, MAINSHAFT (20.2X30X1.40) (D)

Note: (Optional)

$

$

Not available

36

Honda 90544-751-000

SHIM, MAINSHAFT (20.2X30X1.45) (E)

Note: (Optional)

$

$

Not available

36

Honda 90545-751-000

SHIM, MAINSHAFT (20.2X30X1.50) (F)

Note: (Optional)

$

$

Not available

36

Honda 90546-751-000

SHIM, MAINSHAFT (20.2X30X1.55) (G)

Note: (Optional)

$

$

Not available

36

Honda 90547-751-000

SHIM, MAINSHAFT (20.2X30X1.60) (H)

Note: (Optional)

$

$

Not available

36

Honda 90548-751-000

SHIM, MAINSHAFT (20.2X30X1.65) (I)

Note: (Optional)

$

$

Not available

36

Honda 90549-751-000

SHIM, MAINSHAFT (20.2X30X1.70) (J)

Note: (Optional)

$

$

Not available

36

Honda 90550-751-000

SHIM, MAINSHAFT (20.2X30X1.75)

Note: (Optional)

$

$

Not available

37

Honda 91010-HC0-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (16003)
(Superseded to 91011-KK6-013)

$20.99

$

In Stock, only 1 left!

0

37

Honda 91011-KK6-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (16003)

$20.99

$

In Stock, only 1 left!

0

38

Honda 91201-VA4-801

SEE PART DETAILS - PRI; OIL SEAL (10X20X5)

$5.49

$

In Stock, only 2 left!

0

39

Honda 91255-751-003

SEAL, PLUG (25X7)

$5.99

$

Usually ships in 3-6 days

0

40

Honda 91306-HB3-003

SEE PART DETAILS - PRI; O-RING (8X1.7) (ARAI)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 91306-PJ4-000

SEE PART DETAILS - PRI; O-RING (6.8X1.9)

$4.99

$

Usually ships in 3-6 days

0

42

Honda 94030-08000

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

44

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X250)

$31.99

$

Usually ships in 3-6 days

0

45

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
