HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CHANGE LEVER Parts Diagram

Riding Mower, Made in Japan

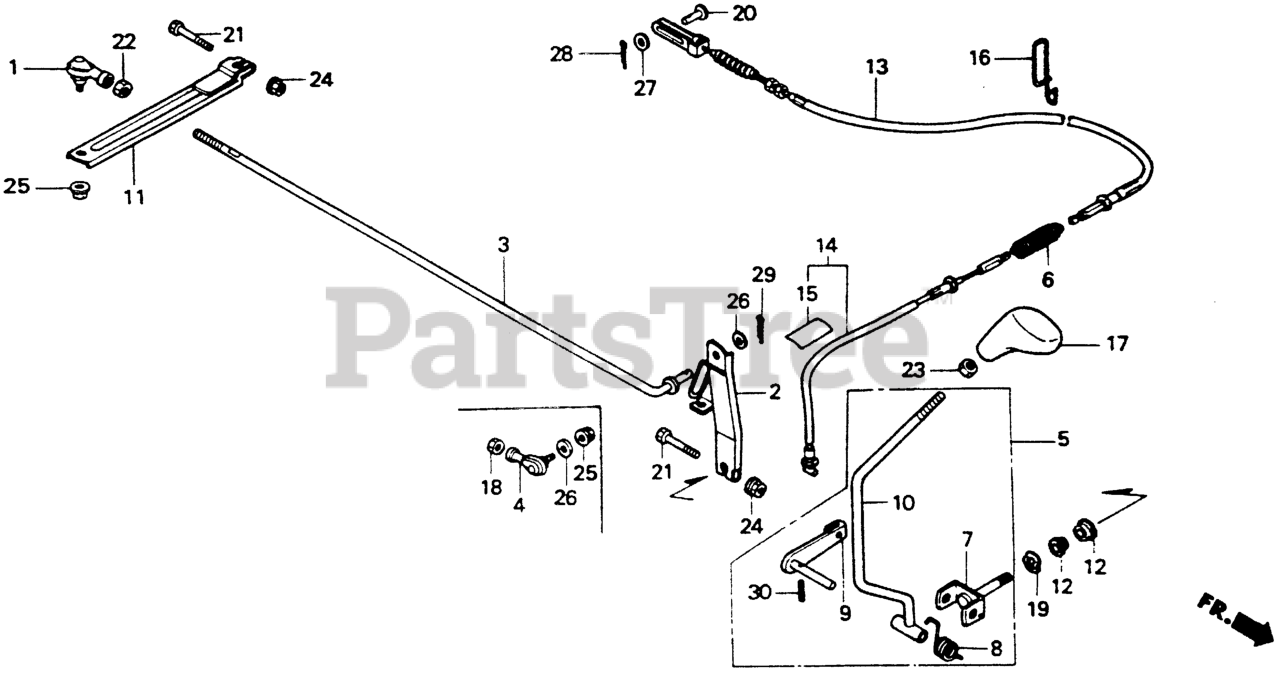

CHANGE LEVER Parts Diagram

  • Title

1

Honda 52352-GM6-003

JOINT, R. BALL

Note: Use up to Frame SN 5107214.

$31.99

$

Usually ships in 3-6 days

0

1

Honda 24125-751-013

JOINT, R. BALL

Note: Use from Frame SN 5107215.

$40.99

$

Usually ships in 3-6 days

0

2

Honda 24126-751-700

ARM, CHANGE

$

$

Currently unavailable

3

Honda 24128-751-700

ROD, GEARSHIFT

Note: Use up to Frame SN 5107214.

$

$

Not available

3

Honda 24128-751-701

ROD, GEARSHIFT (NOT AVAILABLE)

Note: Use from Frame SN 5107215.

$

$

Currently unavailable

5

Honda 24130-751-700

SEE PART DETAILS - PRI; SHAFT, CHANGE LEVER

$

$

Currently unavailable

6

Honda 24132-751-000

SPRING, CLUTCH DAMPER

$

$

Not available

7

Honda 24133-751-700

SEE PART DETAILS - PRI; SHAFT, CHANGE LEVER

$38.99

$

Usually ships in 3-6 days

0

8

Honda 24134-751-010

SPRING, CHANGE LEVER

$

$

Not available

9

Honda 24135-751-310

LINK, CLUTCH

$

$

Not available

10

Honda 24137-751-010

LEVER, CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 24138-751-000

ARM, TRANSMISSION CHANGE

$22.99

$

Usually ships in 3-6 days

0

12

Honda 24141-751-000

BUSH (15X19X18)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 24150-751-700

CABLE C, CLUTCH (CHANGE) (NOT AVAILABLE)

$

$

Not available

14

Honda 24160-751-700

CABLE D, CLUTCH (CHANGE) (NOT AVAILABLE)

$

$

Not available

15

Honda 24161-751-000

TAPE, PROTECTOR

$

$

Currently unavailable

16

Honda 24165-751-000

GUIDE, CLUTCH CABLE

$

$

Not available

17

Honda 54130-750-003ZA

SEE PART DETAILS - SUP; KNOB, SHIFT LEVER *NH105* (MAT BLACK)
(Superseded to 54130-750-013ZA)

$

$

Not available

19

Honda 90405-ZA8-800

WASHER, WAVE (15MM)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90755-751-010

PIN, CLUTCH JOINT

$4.99

$

Usually ships in 3-6 days

0

21

Honda 92200-06032-0H

BOLT, HEX. (6X32)

$

$

Not available

22

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 6

0

23

Honda 94002-12020-0S

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

25

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

26

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

27

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 16

0

28

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

29

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

30

Honda 94305-50251

PIN, SPRING (5X25)

$2.99

$

Usually ships in 3-6 days

0
