HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CARBURETOR Parts Diagram

Riding Mower, Made in Japan

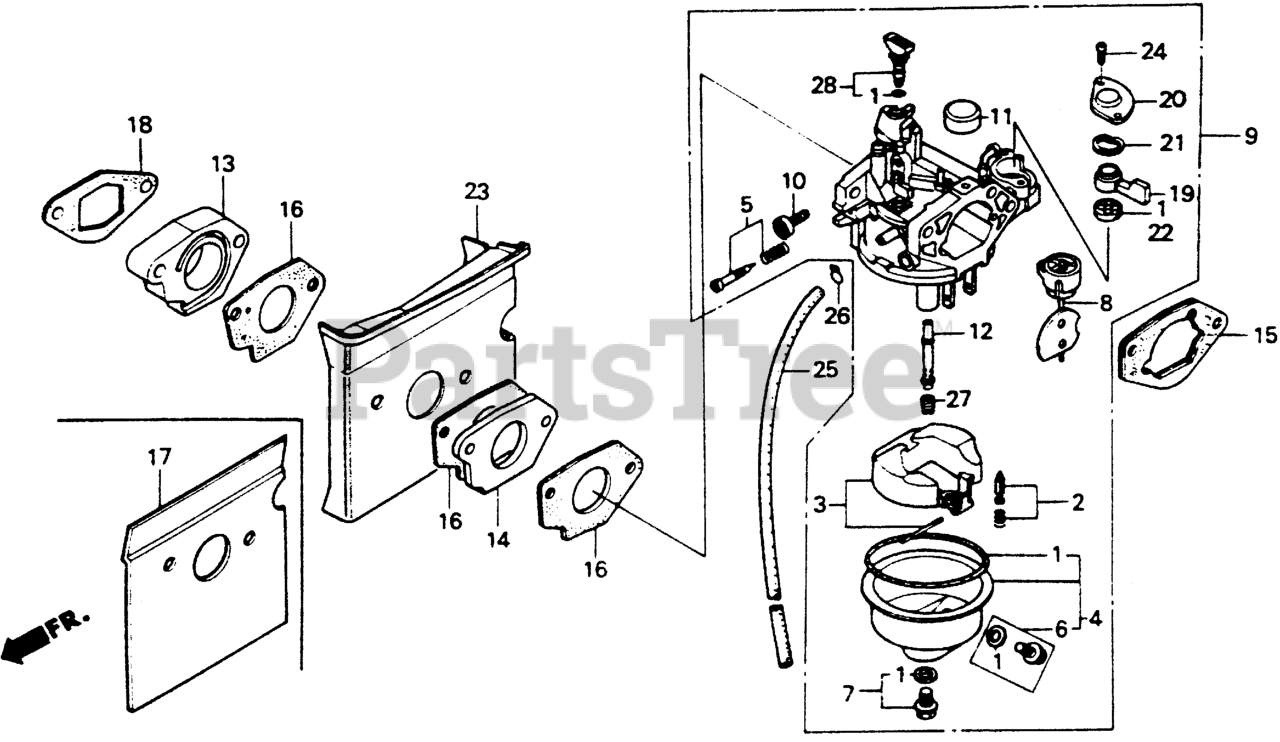

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-005

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2089985).
(Superseded to 16010-ZE2-015)

$19.99

$

In Stock, only 2 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXC. 16173-001-004) (CARBURETOR NO.) (EXCEPT 16173-001-004)

$19.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA0-931

SCREW SET, PILOT (Honda Code 2090009).

$15.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

9

Honda 16100-ZE8-702

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE23B B)
(Superseded to 16100-ZE8-704)

$

$

Not available

9

Honda 16100-ZE8-703

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE23B C)
(Superseded to 16100-ZE8-704)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZE8-005

NOZZLE, MAIN (Honda Code 2090033).

$30.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE8-000

INSULATOR, CARBURETOR (Honda Code 2090041).

$

$

Not available

14

Honda 16211-ZE8-700

INSULATOR, CARBURETOR

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

Note: Use from Engine SN 1060086. Use up to Engine SN 1060085.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357307).
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

18

Honda 16223-ZE8-000

GASKET, INSULATOR (Honda Code 2090074). (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 16953-ZE1-711

SEE PART DETAILS - SUP; LEVER, VALVE (Honda Code 1950666).

$8.99

$

Usually ships in 0 days

0

20

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

22

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

$4.49

$

In Stock, Qty 20+

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

23

Honda 19625-ZE8-700

GUIDE, AIR

$

$

Not available

24

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

$0.99

$

In Stock, Qty 8

0

25

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

26

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

27

Honda 99101-124-0800

JET, MAIN (#80) (Honda Code 0714519).

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

27

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

$11.99

$

Usually ships in 3-6 days

0

27

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (Honda Code 2060465).

$23.99

$

In Stock, only 1 left!

0
