HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) BATTERY Parts Diagram

Riding Mower, Made in Japan

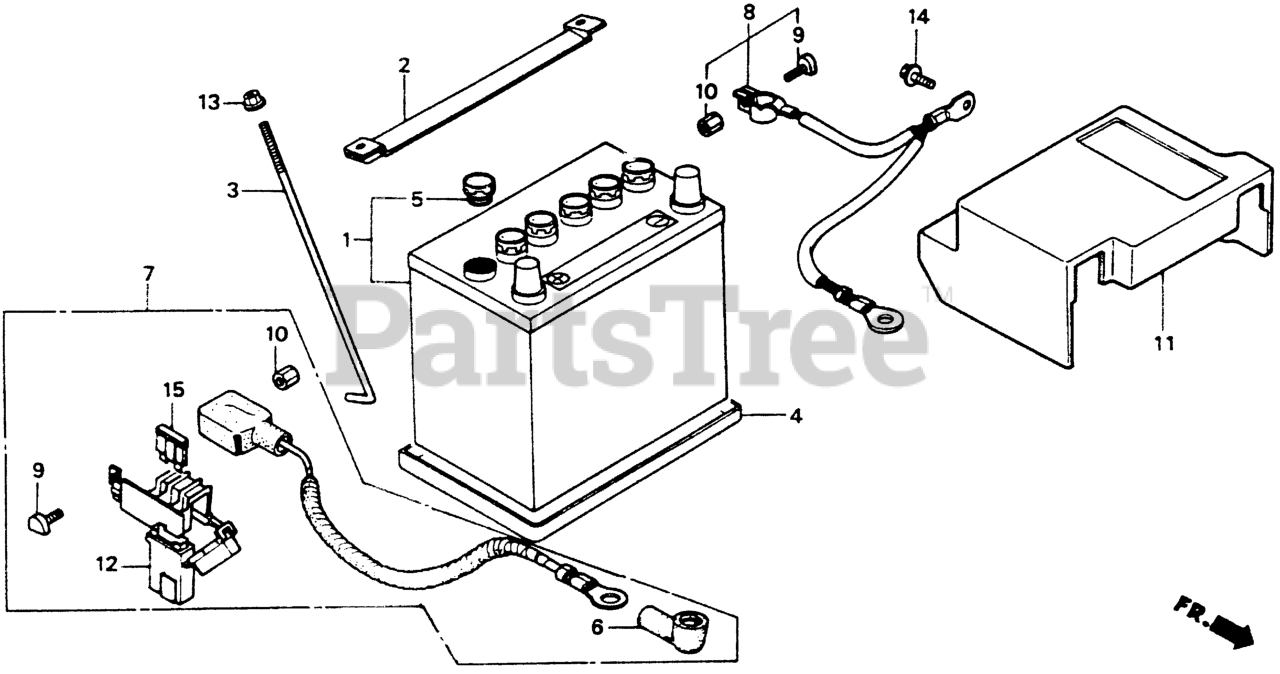

BATTERY Parts Diagram

  • Title

1

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

1

Honda 31500-750-023

SEE PART DETAILS - PRI; BTTRY, MF (34A19RT) (S) (MSDS)

$145.99

$

Usually ships in 3-6 days

0

1

Honda 31500-751-013

SEE PART DETAILS - SUP; BATTERY (26A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

2

Honda 31512-751-010

SEE PART DETAILS - PRI; PLATE, BATTERY SETTING

$23.99

$

In Stock, only 1 left!

0

3

Honda 31513-751-000

BOLT, BATTERY SETTING

$

$

Not available

4

Honda 31523-ZA0-800

TRAY, BATTERY

$16.99

$

Usually ships in 3-6 days

0

5

Honda 31542-538-007

PLUG, VENT (YUASA)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 32136-659-000

COVER, TERMINAL

$7.49

$

Usually ships in 3-6 days

0

7

Honda 32410-751-000

CABLE ASSY., STARTER

$

$

Currently unavailable

8

Honda 32600-751-000

CABLE ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 38210-751-003

CASE, MAIN FUSE

$23.99

$

In Stock, only 1 left!

0

13

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

14

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

15

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

$1.99

$

In Stock, Qty 5

0
