HT 818r (41AF818G034) - Ryobi Hedge Trimmer, Electric Single Action Hedge Trimmer Parts Diagram

Hedge Trimmer, Electric

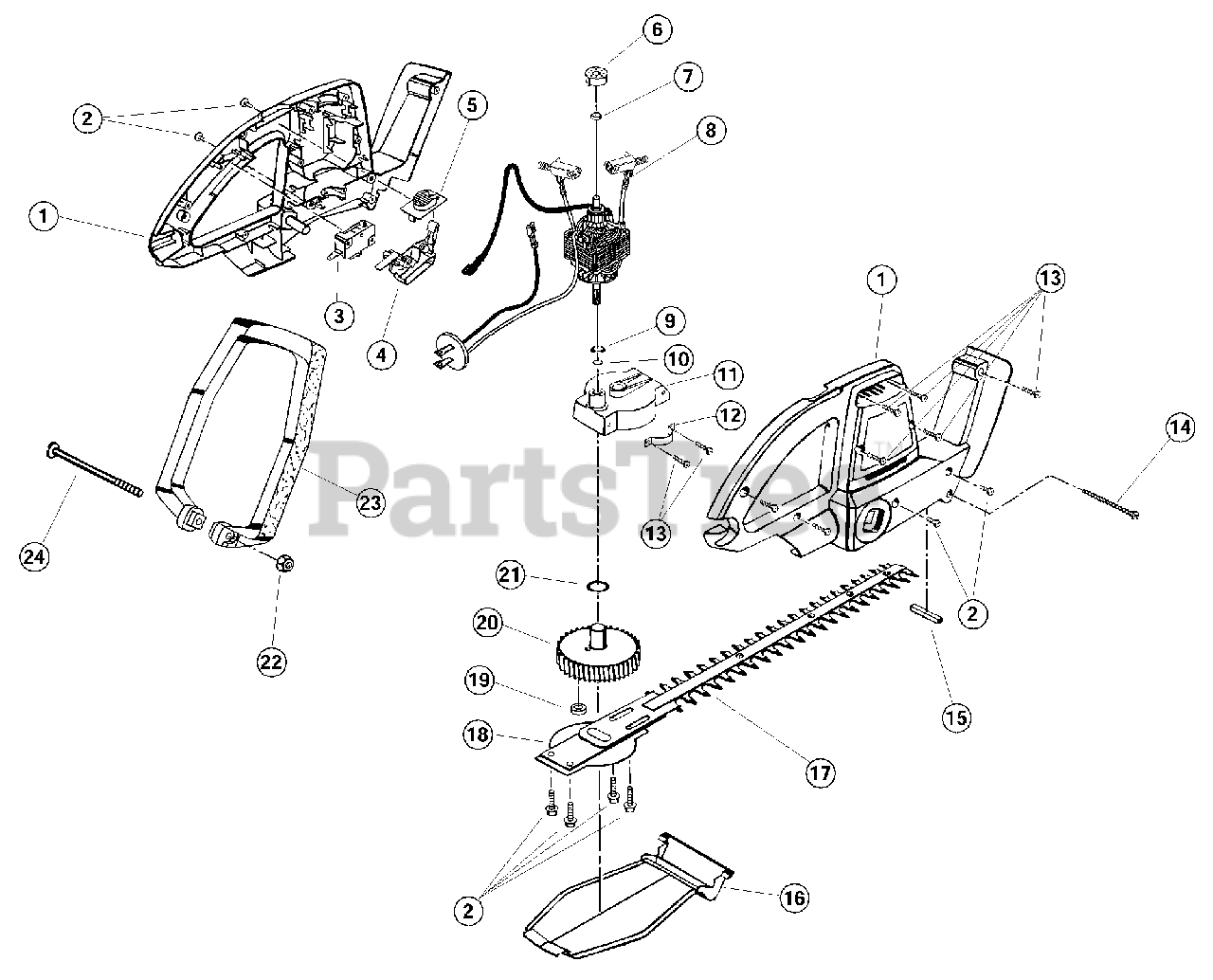

Single Action Hedge Trimmer Parts Diagram

  • Title

1

MTD 791-182884

Housing Assembly

$

$

Not available

2

MTD 791-182886

Screw

$

$

Not available

3

MTD 791-182855

Switch

$

$

Not available

4

MTD 791-182856

Switch Trigger Assembly

$

$

Not available

5

MTD 791-182857

Lock-On Button

$

$

Not available

6

MTD 791-182906

Sleeve Bearing

$

$

Not available

7

MTD 791-182905

Washer

$

$

Not available

8

MTD 791-00037

Motor Assembly

$

$

Not available

9

MTD 791-182890

Spring Washer

$

$

Not available

10

MTD 791-182891

Washer

$

$

Not available

11

MTD 791-182892

Gear Housing w/Bearings

$

$

Not available

12

MTD 791-182894

Bearing Strap

$

$

Not available

13

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

14

MTD 791-181424

Screw

$

$

Not available

15

MTD 791-182632

Blade Seal

$

$

Not available

16

MTD 791-181422

Blade Cover

$

$

Currently unavailable

17

MTD 791-180183

Blade Assembly

$

$

Not available

18

MTD 791-180185

Grease Cover

$

$

Currently unavailable

19

MTD 791-182637

Drive Washer
(Superseded to 791-180180)

$6.99

$

Usually ships in 3-6 days

0

20

MTD 791-182635

Gear Assembly (HT816r)

$

$

Not available

21

MTD 791-182633

Washer

$

$

Not available

22

MTD 791-180050

Lock Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

23

MTD 791-180049

Front Handle

Note: (includes 22 & 24)

$

$

Not available

24

MTD 791-180048

Screw

$5.49

$

Usually ships in 3-6 days

0
