HT 3000 - Swisher Hedge Trimmer Valve Train Parts Diagram

Hedge Trimmer

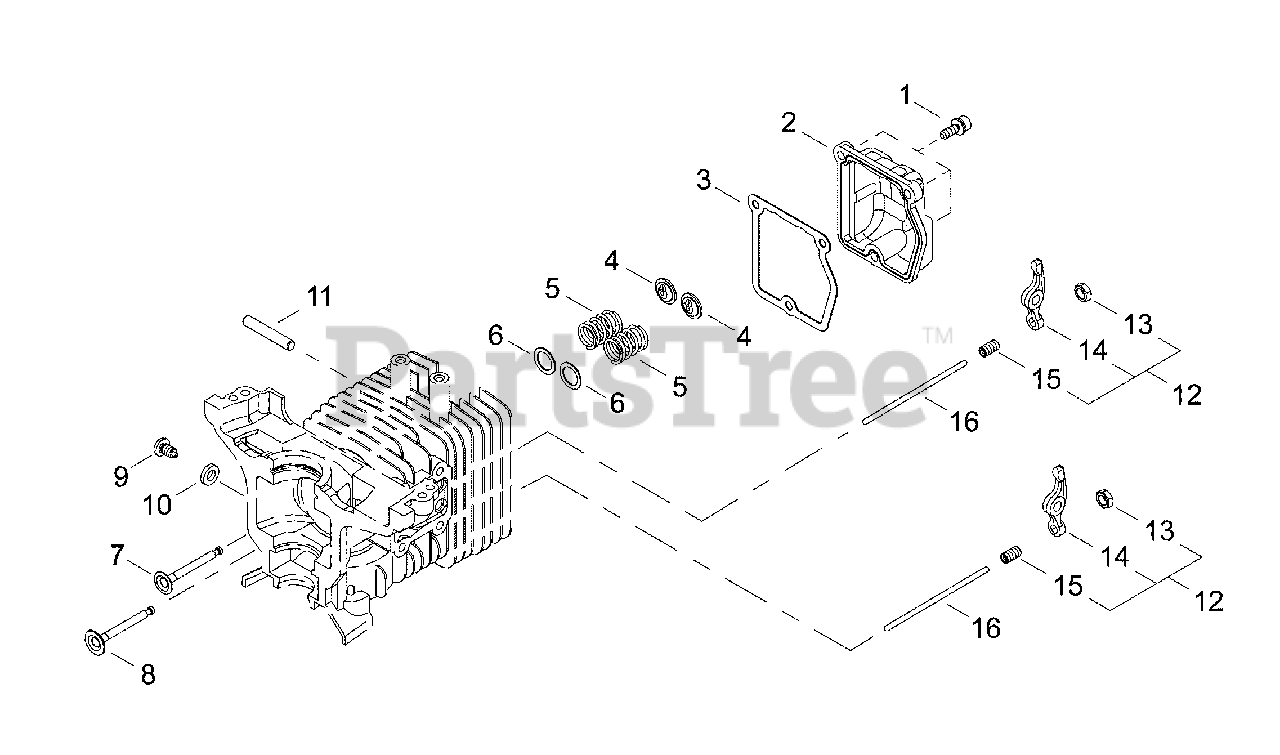

Valve Train Parts Diagram

  • Title
1

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 62901-44241

COVER, ROCKER ARM
(Superseded to A137000020)

$9.99

$

Usually ships in 2-4 days

0

3

Echo 62901-44250

GASKET
(Superseded to V109000120)

$1.99

$

In Stock, only 1 left!

0

4

Echo 62908-44140

RETAINER, VALVE
(Superseded to A606000040)

$7.99

$

Usually ships in 2-4 days

0

5

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, Qty 5

0

6

Echo 62908-44310

WASHER, VALVE - 9
(Superseded to V392000030)

$0.99

$

In Stock, only 4 left!

0

7

Echo 62902-44121

VALVE, EXHAUST
(Superseded to A603000050)

$19.99

$

Usually ships in 2-4 days

0

8

Echo 62902-44111

VALVE, INTAKE
(Superseded to A603000040)

$15.99

$

Usually ships in 2-4 days

0

9

Echo 62901-43310

SCREW - 5
(Superseded to V253000540)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15401-10028

WASHER
(Superseded to V303000120)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12492-50310

SHAFT, ROCKER ARM - 5X31.8
(Superseded to V623000040)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)

$30.99

$

Usually ships in 2-4 days

0

13

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 62901-44210

ARM, ROCKER
(Superseded to A610000060)

$27.99

$

Usually ships in 2-4 days

0

15

Echo 62907-44220

SCREW, ADJUST
(Superseded to A613000010)

$2.99

$

Usually ships in 2-4 days

0

16

Echo 62908-43220

PUSHROD
(Superseded to A607000010)

$1.99

$

In Stock, only 4 left!

0
