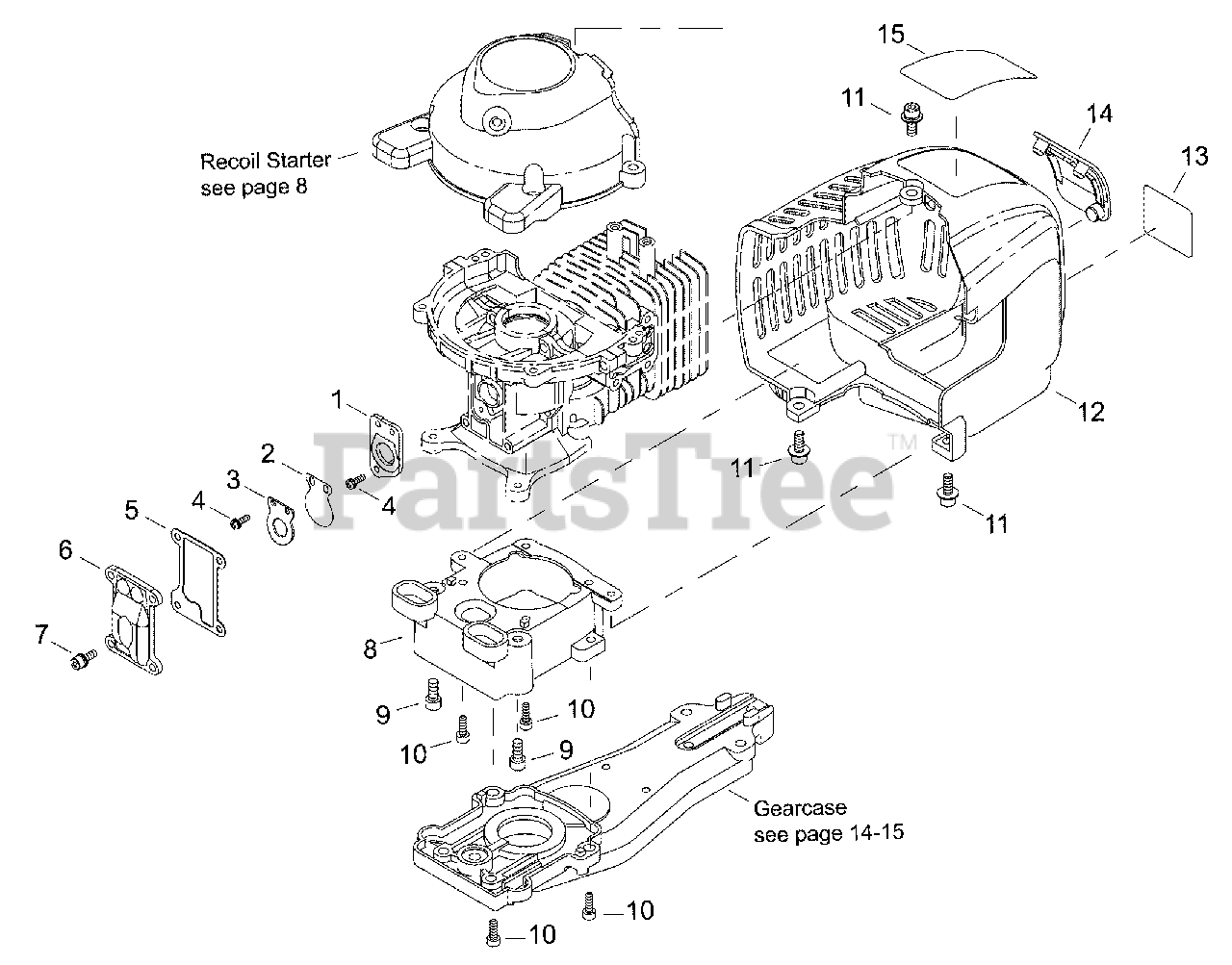

HT 3000 - Swisher Hedge Trimmer Engine Cover, Gearcase Adapter, Reed Valve Parts Diagram

Hedge Trimmer

Engine Cover, Gearcase Adapter, Reed Valve Parts Diagram

  • Title

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$11.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 6

0

6

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$5.99

$

Usually ships in 2-4 days

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 62600-33310

ADAPTOR, GEAR CASE
(Superseded to A570000250)

$22.99

$

Usually ships in 2-4 days

0

9

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

10

Echo 01020-04120

SCREW - 4X12
(Superseded to 90010504012)

$1.49

$

Usually ships in 2-4 days

0

11

Echo 11060-05141

SCREW - 5X14
(Superseded to V203001020)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 62604-32110

COVER, ENGINE
(Superseded to A160002270)

$29.99

$

Usually ships in 2-4 days

0

13

Echo 62604-91320

LABEL - MODEL HT3000

$

$

Not available

14

Echo 62901-32312

COVER, SPARK PLUG
(Superseded to A429000140)

$2.49

$

Usually ships in 2-4 days

0

15

Echo 62917-91330

LABEL - E4

$

$

Not available
