HT 254 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T11112001001 - T11112999999) Throttle Control Parts Diagram

Hedge Trimmer, Single-Sided

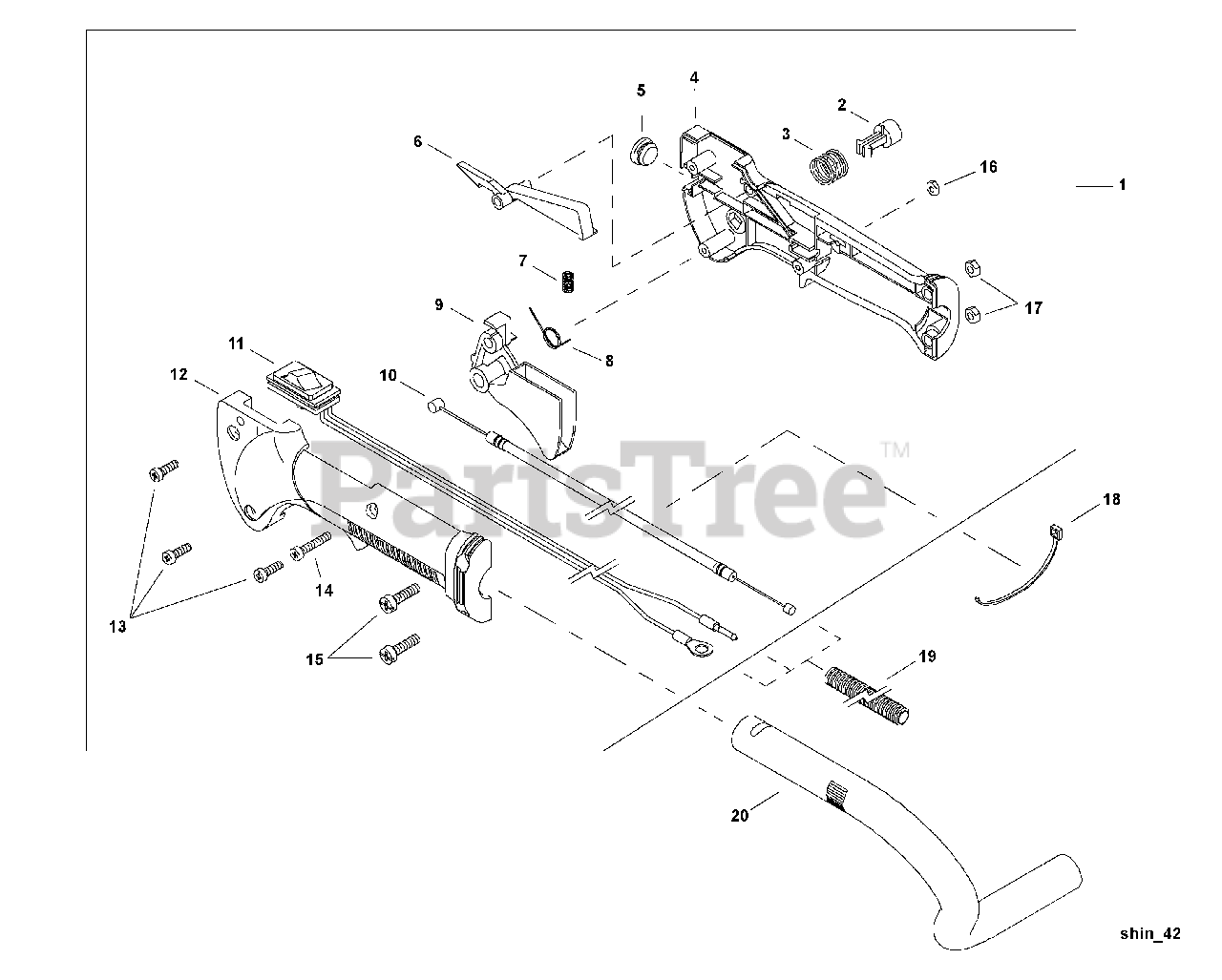

Throttle Control Parts Diagram

  • Title

1

Echo C041000540

THROTTLE CONTROL ASSY
(Superseded to C041000543)

Note: INCLUDES ITEMS 2-17

$124.99

$

Usually ships in 2-4 days

0

2

Echo C461000080

LOCK, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo V450001010

SPRING

$0.99

$

In Stock, Qty 6

0

4

Echo C412000510

HANDLE, CONTROL - RIGHT

$20.99

$

Usually ships in 2-4 days

0

5

Echo V162000410

PLUG

$2.49

$

In Stock, only 4 left!

0

6

Echo C460000240

LEVER, TRIGGER LOCKOUT
(Superseded to C460000241)

$1.99

$

In Stock, only 1 left!

0

7

Echo V450001020

SPRING

$0.99

$

In Stock, Qty 9

0

8

Echo V452000690

SPRING, TRIGGER

$0.99

$

In Stock, Qty 9

0

9

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

$3.99

$

Usually ships in 2-4 days

0

10

Echo V430003420

CABLE, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

11

Echo A440001530

IGNITION SWITCH ASSY

$24.99

$

Usually ships in 2-4 days

0

12

Echo C412000520

HANDLE, CONTROL - LEFT
(Superseded to P021044940)

$20.99

$

Usually ships in 2-4 days

0

13

Echo V252000360

SCREW - 4X16 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

14

Echo V252000370

SCREW - 4X23

$1.99

$

In Stock, Qty 6

0

15

Echo V253000580

SCREW - 5X20

$0.99

$

In Stock, Qty 10

0

16

Echo V262000100

NUT - 4

$0.99

$

In Stock, Qty 20+

0

17

Echo 9201705000

NUT - 5

$0.99

$

In Stock, Qty 13

0

18

Echo V495002400

TIE, CABLE

$0.99

$

Usually ships in 2-4 days

0

19

Echo V475005080

TUBE, PROTECTIVE - CORRUGATED

$1.99

$

Usually ships in 2-4 days

0

20

Echo C410000700

HANDLE - REAR

$37.99

$

Usually ships in 2-4 days

0
