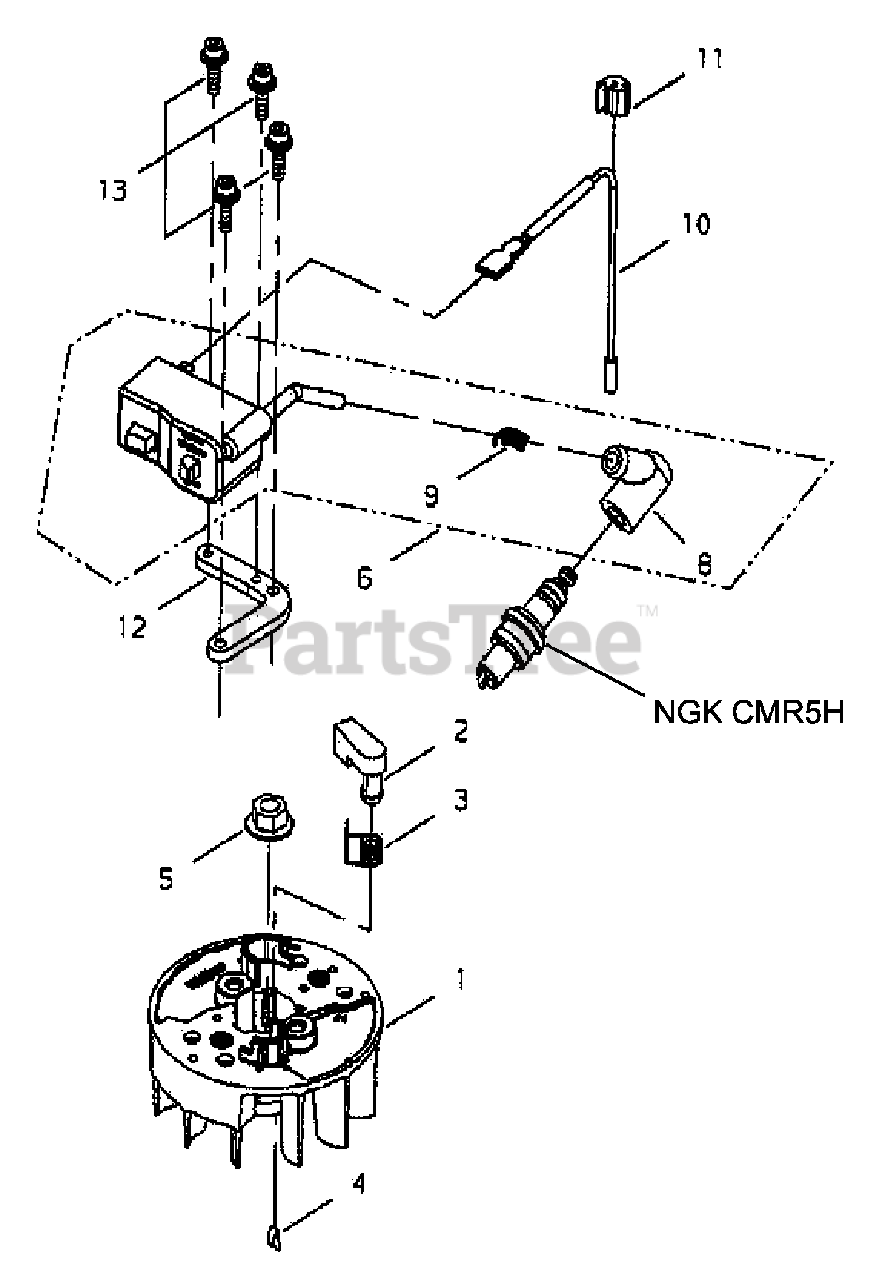

HT 2510 - Shindaiwa Hedge Trimmer, Single-Sided Flywheel, Ignition Parts Diagram

Hedge Trimmer, Single-Sided

Flywheel, Ignition Parts Diagram

  • Title
1

Echo 62600-71110

FLYWHEEL
(Superseded to 62600-71111)

$53.99

$

Usually ships in 2-4 days

0

2

Echo 20870-71120

PAWL, STARTER
(Superseded to A514000190)

$1.99

$

In Stock, only 4 left!

0

3

Echo 20870-71130

SPRING
(Superseded to V452000620)

$0.99

$

In Stock, Qty 5

0

4

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

5

Echo 20035-71220

NUT - 8
(Superseded to V265000140)

$0.99

$

In Stock, Qty 8

0

6

Echo 62600-71020

IGNITION COIL ASSY
(Superseded to 62600-71320)

$81.99

$

Usually ships in 2-4 days

0

8

Echo 62905-71250

CAP, SPARK PLUG
(Superseded to A427000110)

$6.49

$

Usually ships in 2-4 days

0

9

Echo 62905-71320

TERMINAL, SPARK PLUG CAP
(Superseded to A426000070)

$1.49

$

In Stock, only 2 left!

0

10

Echo 14350-02001

LEAD - IGNITION
(Superseded to V485001910)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 62901-71310

GROMMET
(Superseded to V136000100)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 62905-71330

STAY
(Superseded to Discontinued)

$

$

Not available

13

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0
