HT 25 - Jonsered Hedge Trimmer (2008-01) ENGINE Parts Diagram

Hedge Trimmer

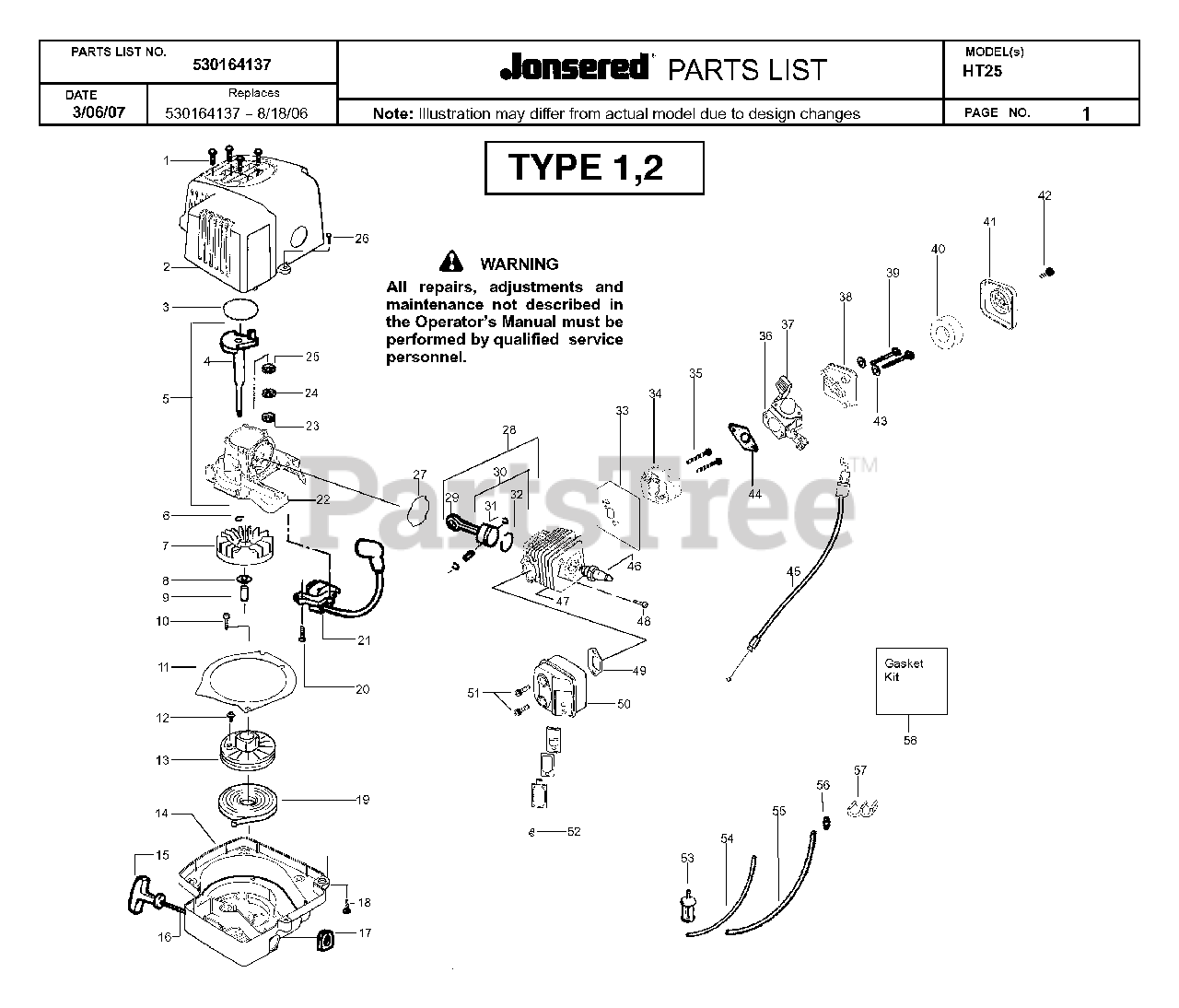

ENGINE Parts Diagram

  • Title

$8.99

$

In Stock, only 1 left!

0

2

Jonsered 530056620

ASSY-SHROUD

$36.99

$

Usually ships in 3-10 days

0

3

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

4

Jonsered 530012571

CRANKSHAFT ASSY
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Jonsered 530071681

CRANKCASE

$

$

Not available

6

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 530071487

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

8

Jonsered 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

$9.22

$

Usually ships in 3-10 days

0

10

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 530055681

PLATE-BAFFLE

$

$

Not available

$

$

Not available

13

Jonsered 530069353

STARTER PULLEY

$

$

Not available

14

Jonsered 545024813

No Description Available

$46.99

$

Usually ships in 3-10 days

0

15

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

16

$7.49

$

In Stock, Qty 20+

0

17

$3.99

$

Usually ships in 3-10 days

0

$8.99

$

In Stock, only 1 left!

0

19

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 4 left!

0

21

Jonsered 530054137

IGNITION MODULE

$

$

Not available

22

Jonsered 530012510

CRANKCASE

$

$

Not available

23

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

25

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

27

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

28

Jonsered 530071785

PISTON KIT

$47.99

$

Usually ships in 3-10 days

0

29

Jonsered 530069945

No Description Available
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

30

Jonsered 530071833

PISTON KIT

$37.99

$

Usually ships in 3-10 days

0

31

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

32

Jonsered 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

34

$12.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

36

Jonsered 530071776

No Description Available

$

$

Not available

37

Jonsered 530059280

No Description Available

$9.99

$

Usually ships in 3-10 days

0

38

$4.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 6

0

40

Jonsered 530047932

No Description Available

$5.99

$

In Stock, only 1 left!

0

41

Jonsered 530055679

AIR FILTER COVER

$

$

Not available

$4.99

$

In Stock, Qty 6

0

43

Jonsered 530015158

WASHER
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

44

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

45

Jonsered 530058756

THROTTLE WIRE

$20.99

$

Usually ships in 3-10 days

0

46

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

47

$20.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 7

0

49

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

50

Jonsered 530071805

No Description Available

$21.99

$

In Stock, only 1 left!

0

51

Jonsered 530016338

SCREW MUFFLER

$3.99

$

Usually ships in 3-10 days

0

52

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

53

Jonsered 530095647

ASSY-FUEL PICK-UP

$7.49

$

In Stock, only 3 left!

0

54

$7.99

$

In Stock, Qty 20+

0

55

$11.99

$

In Stock, Qty 20+

0

56

Jonsered 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 18

0

57

$6.49

$

In Stock, Qty 5

0

58

Jonsered 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0
