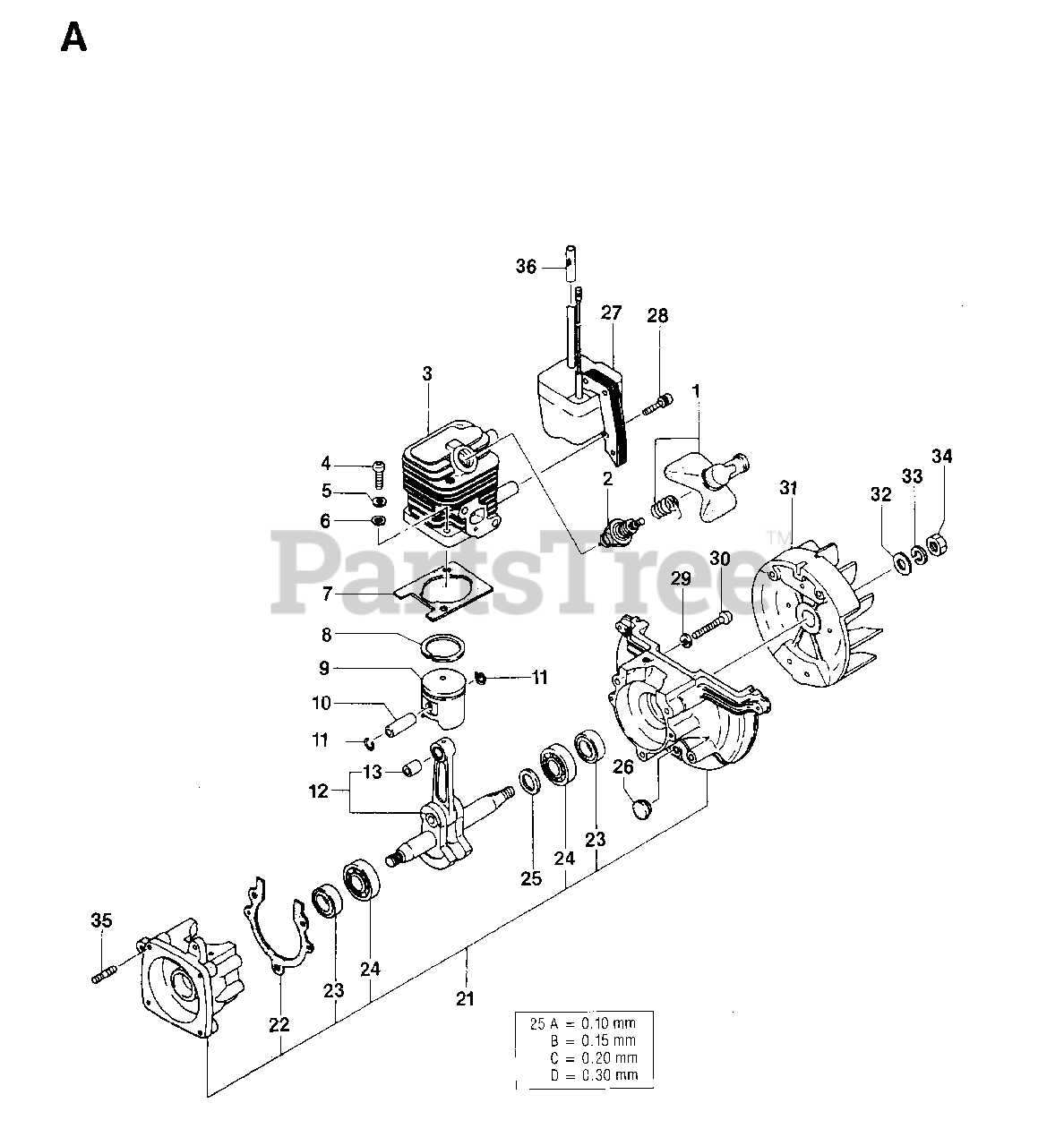

HT 24 - Jonsered Hedge Trimmer (1995-03) ENGINE Parts Diagram

Hedge Trimmer

ENGINE Parts Diagram

  • Title
3

Jonsered 501364401

No Description Available

$

$

Not available

4

Jonsered 725533155

SCREW MC6S 5X20

$2.49

$

Usually ships in 3-10 days

0

5

Jonsered 735114601

SPRING WASHER
(Superseded to 734114601)

$6.99

$

In Stock, only 1 left!

0

6

Jonsered 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

7

Jonsered 501364402

No Description Available

$

$

Not available

8

Jonsered 501362014

No Description Available

$

$

Not available

9

Jonsered 501364403

No Description Available

$

$

Not available

10

Jonsered 501364404

No Description Available

$

$

Not available

11

Jonsered 501363101

No Description Available

$

$

Not available

12

Jonsered 501364405

No Description Available

$

$

Not available

35

Jonsered 501361503

No Description Available

$

$

Not available

22

Jonsered 501364407

No Description Available

$

$

Not available

23

Jonsered 501362005

No Description Available

$

$

Not available

24

Jonsered 501362004

No Description Available

$

$

Not available

21

Jonsered 501364406

No Description Available

$

$

Not available

25A

Jonsered 501362176

No Description Available

Note: 0 10 MM

$

$

Not available

25B

Jonsered 501362177

No Description Available

Note: 0 15 MM

$

$

Not available

25C

Jonsered 501362178

No Description Available

Note: 0 20 MM

$

$

Not available

25D

Jonsered 501362131

No Description Available

Note: 0 30 MM

$

$

Not available

24

Jonsered 501362004

No Description Available

$

$

Not available

23

Jonsered 501362005

No Description Available

$

$

Not available

13

Jonsered 501361856

No Description Available

$

$

Not available

11

Jonsered 501363101

No Description Available

$

$

Not available

36

Jonsered 501364808

No Description Available

$

$

Not available

27

Jonsered 501364408

No Description Available

$

$

Not available

28

Jonsered 501364806

No Description Available

$

$

Not available

2

Jonsered 503235008

SPARK PLUG CJ8 NLA

$

$

Not available

26

Jonsered 501362008

No Description Available

$

$

Not available

29

Jonsered 735114601

SPRING WASHER
(Superseded to 734114601)

$6.99

$

In Stock, only 1 left!

0

30

Jonsered 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

31

Jonsered 501364409

No Description Available

$

$

Not available

32

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

33

Jonsered 735116401

SPRING WASHER

$1.99

$

In Stock, only 3 left!

0

34

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

1

Jonsered 501364400

No Description Available

$

$

Not available
