HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: U45415001001 - U45415999999) INTAKE Parts Diagram

Hedge Trimmer, Single-Sided

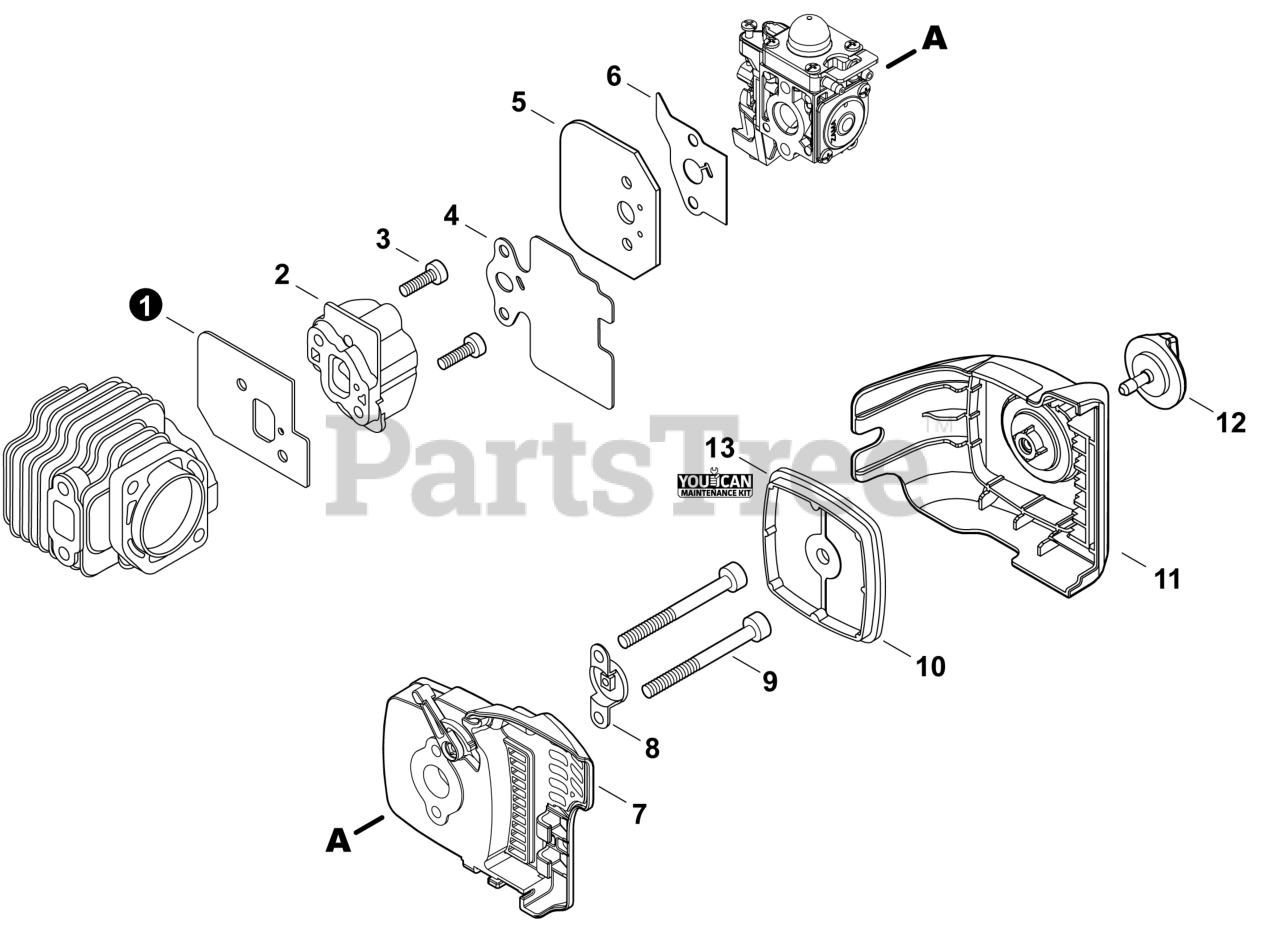

INTAKE Parts Diagram

  • Title
1

Echo V103002030

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

2

Echo A200001200

INSULATOR, INTAKE

$4.99

$

In Stock, Qty 5

0

3

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103001410

HEAT SHIELD, INTAKE

$3.99

$

In Stock, Qty 10

0

5

Echo A209000610

PLATE, INSULATOR

$3.99

$

Usually ships in 2-4 days

0

6

Echo V103001740

GASKET, INTAKE

$5.49

$

In Stock, only 4 left!

0

7

Echo P100008830

CASE, AIR FILTER

$9.99

$

Usually ships in 2-4 days

0

8

Echo A244000070

PLATE, PREVENT

$4.99

$

In Stock, Qty 20+

0

9

Echo V805000100

BOLT, TORX 5x65

$1.99

$

In Stock, Qty 5

0

10

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

11

Echo A232001630

COVER, AIR FILTER

$5.99

$

In Stock, only 1 left!

0

12

Echo V299000410

THUMBSCREW

$6.49

$

In Stock, only 4 left!

0

13

Echo 84014Y

TUNE-UP KIT - YOUCANT

$18.99

$

Usually ships in 2-4 days

0
