HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T29411001001 - T29411999999) RECOIL STARTER Parts Diagram

Hedge Trimmer, Single-Sided

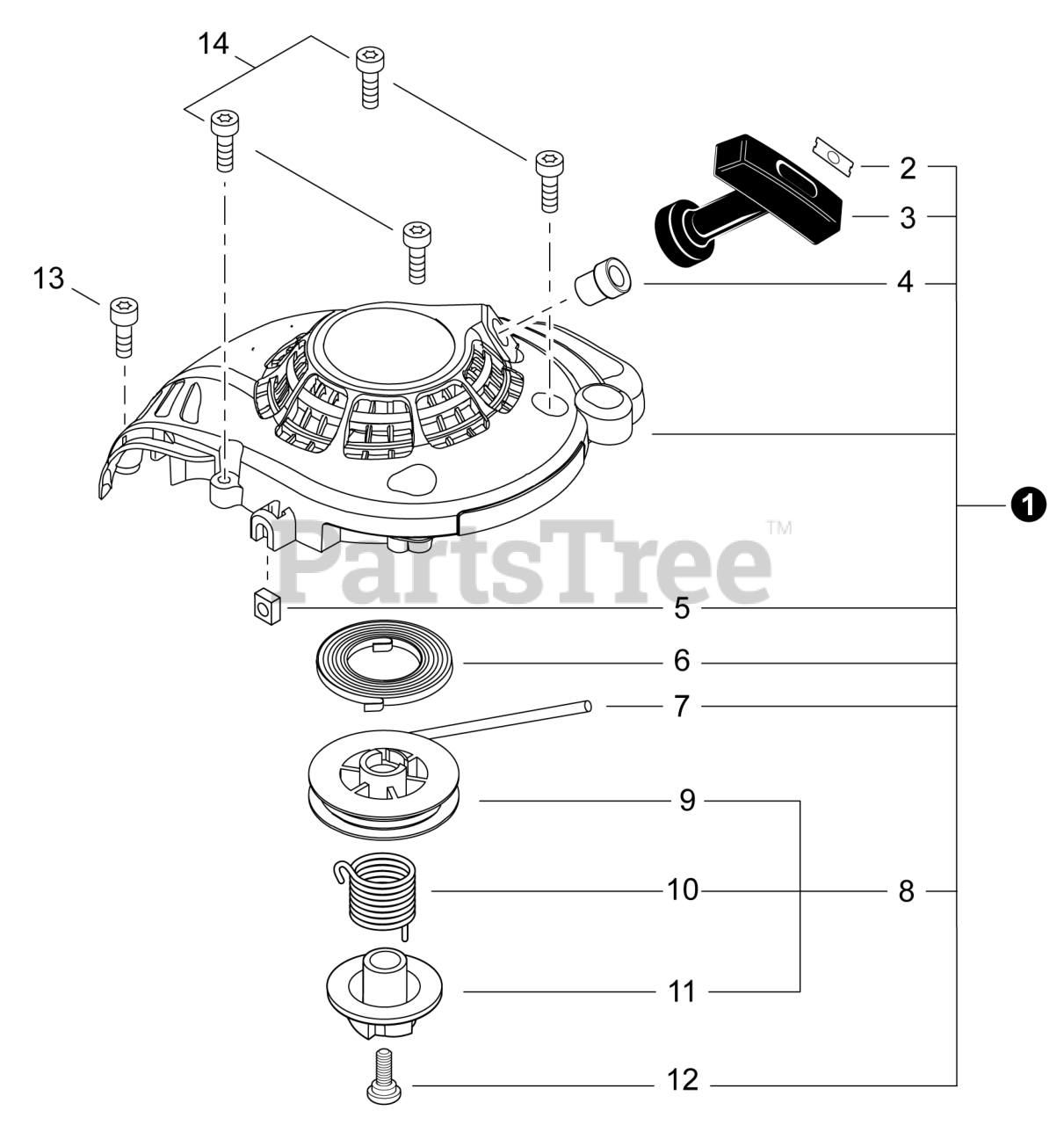

RECOIL STARTER Parts Diagram

  • Title

1

Echo A051002682

STARTER ASSY, RECOIL

Note: Includes Items 2-12

$38.99

$

In Stock, only 1 left!

0

2

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

3

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

4

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

5

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

7

Echo P022006800

ROPE, STARTER

$6.49

$

Usually ships in 2-4 days

0

8

Echo P050009940

REEL/CAM PLATE SET

Note: Includes Items 9-11

$21.99

$

Usually ships in 2-4 days

0

9

Echo P022027980

REEL, ROPE

$6.49

$

In Stock, only 3 left!

0

10

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, Qty 20+

0

11

Echo P022037310

PLATE, CAM

$7.99

$

In Stock, only 1 left!

0

12

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

13

Echo V804000010

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 16

0

14

Echo V804000060

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 20+

0
