HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T29411001001 - T29411999999) EXHAUST Parts Diagram

Hedge Trimmer, Single-Sided

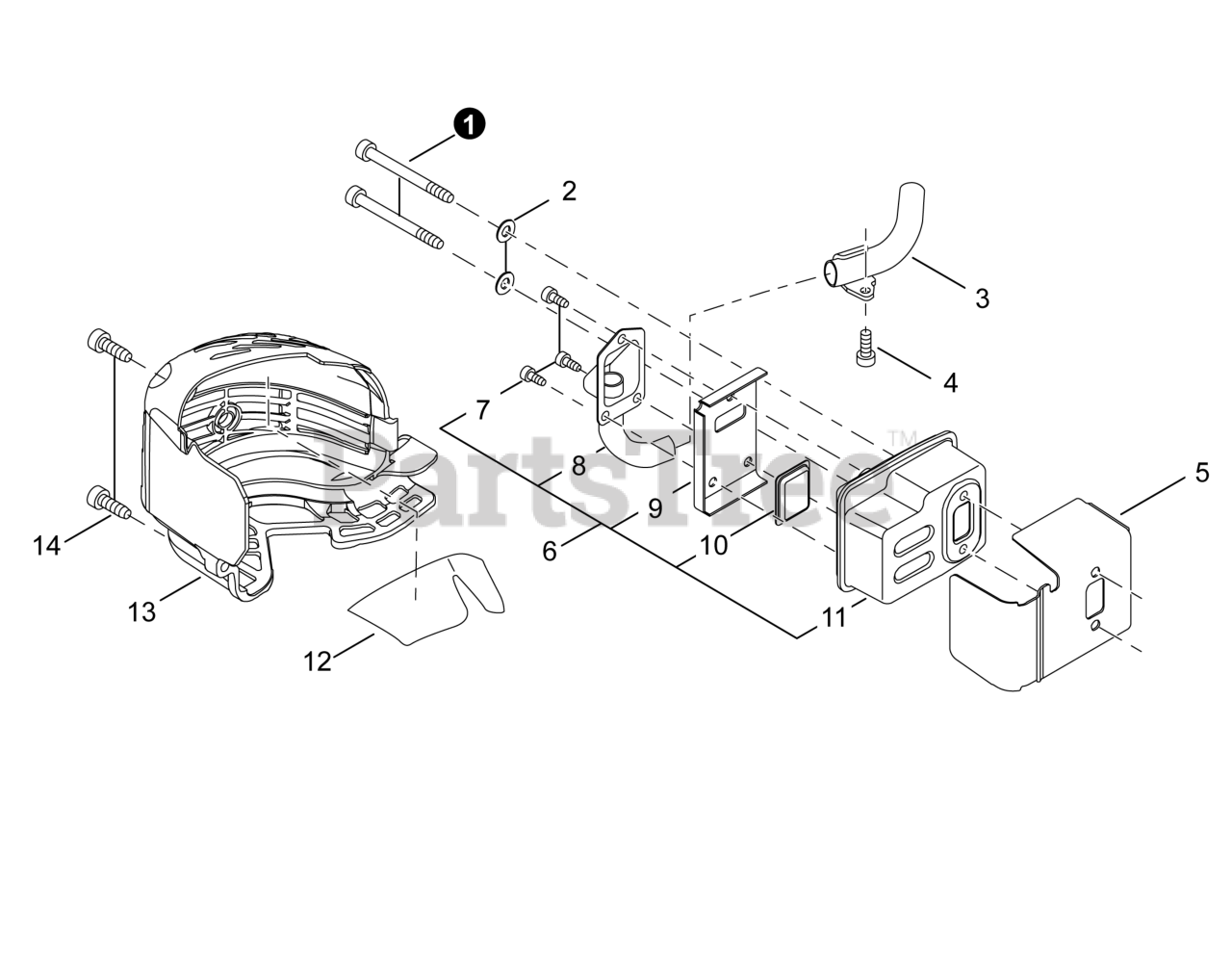

EXHAUST Parts Diagram

  • Title

1

Echo V805000190

BOLT, TORX 5x55

$1.49

$

In Stock, Qty 20+

0

2

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo A313001730

GUIDE, EXHAUST

$17.99

$

In Stock, only 1 left!

0

4

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

5

Echo V104001831

HEAT SHIELD, EXHAUST

$15.99

$

Usually ships in 2-4 days

0

6

Echo P021041970

MUFFLER ASSY

Note: Includes Items 7-11

$79.99

$

Usually ships in 2-4 days

0

7

Echo V804000030

BOLT, TORX 4x8

$0.99

$

In Stock, Qty 20+

0

8

Echo A313001741

GUIDE, EXHAUST

$15.99

$

In Stock, only 1 left!

0

9

Echo V104000072

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

10

Echo A310000070

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

11

Echo A300001600

MUFFLER

$83.99

$

Usually ships in 2-4 days

0

12

Echo A209000620

PLATE, INSULATOR
(Superseded to A209000621)

$5.99

$

Usually ships in 2-4 days

0

13

Echo A320000990

COVER, MUFFLER

$13.99

$

In Stock, only 1 left!

0

14

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0
