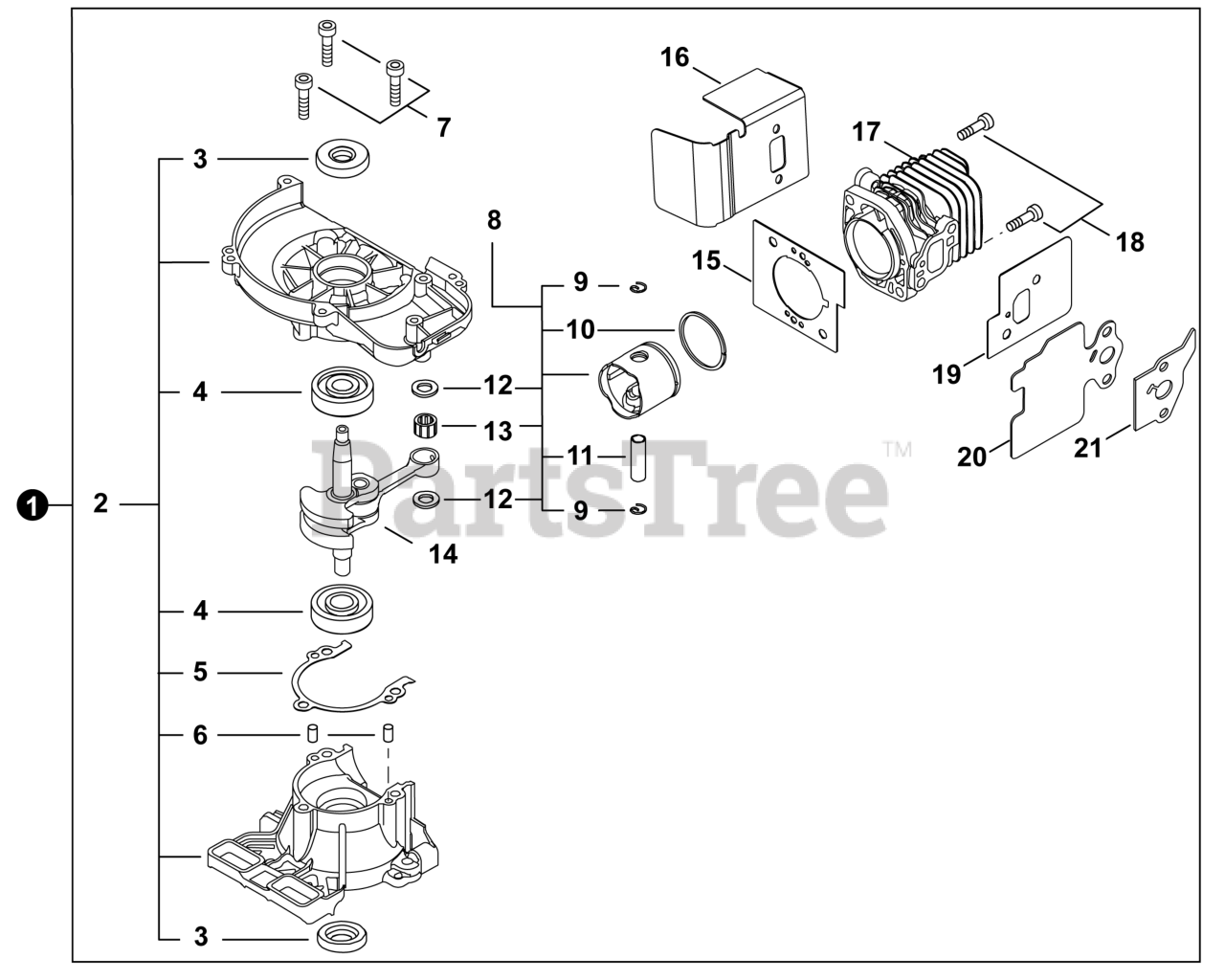

HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T29411001001 - T29411999999) ENGINE Parts Diagram

Hedge Trimmer, Single-Sided

ENGINE Parts Diagram

  • Title

1

Echo SB1117

SHORT BLOCK

Note: Includes Items 2-21

$343.99

$

Usually ships in 2-4 days

0

2

Echo P021048540

CRANKCASE KIT

Note: Includes Items 3-6

$75.99

$

Usually ships in 2-4 days

0

3

Echo 10021261830

SEAL, OIL

$7.99

$

In Stock, only 2 left!

0

4

Echo 90081036000

BEARING, BALL

$6.99

$

Usually ships in 2-4 days

0

5

Echo V102000240

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

6

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

7

Echo 9112805028

BOLT 5x28

$1.49

$

Usually ships in 2-4 days

0

8

Echo P021037930

PISTON KIT

Note: Includes Items 9-13

$52.99

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

10

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo V606000020

PIN, PISTON 8

$6.49

$

Usually ships in 2-4 days

0

12

Echo 10001408960

WASHER, THRUST

$3.49

$

Usually ships in 2-4 days

0

13

Echo 10011305930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

14

Echo A011001180

CRANKSHAFT ASSY

$184.99

$

Usually ships in 2-4 days

0

15

Echo V100000720

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

16

Echo V104001831

HEAT SHIELD, EXHAUST

$15.99

$

Usually ships in 2-4 days

0

17

Echo A130001960

CYLINDER

$114.99

$

In Stock, Qty 6

0

18

Echo V203000170

BOLT 5

$0.99

$

Usually ships in 2-4 days

0

19

Echo V103001401

GASKET, INTAKE
(Superseded to V103002030)

$1.49

$

In Stock, Qty 20+

0

20

Echo V103001410

HEAT SHIELD, INTAKE

$3.99

$

In Stock, Qty 10

0

21

Echo V103001740

GASKET, INTAKE

$5.49

$

In Stock, only 4 left!

0
