HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T25213001001 - T25213999999) Rear Handle, Throttle Control Parts Diagram

Hedge Trimmer, Single-Sided

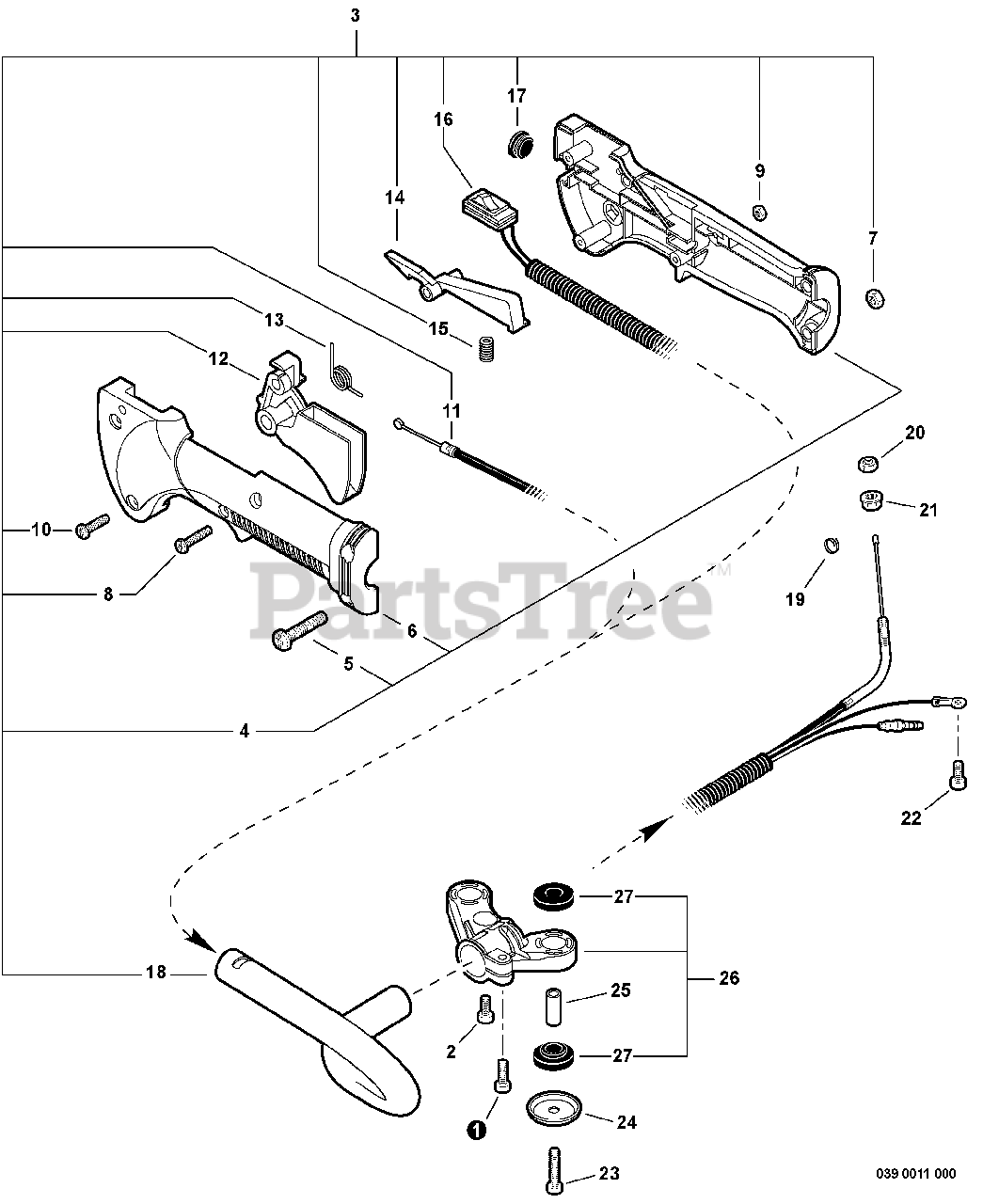

Rear Handle, Throttle Control Parts Diagram

  • Title

1

Echo V805000150

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo V805000140

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

3

Echo C041000690

CONTROL HANDLE ASSY
(Superseded to C041000691)

Note: Includes ITEMS 4-18

$126.99

$

Usually ships in 2-4 days

0

4

Echo P021044940

CONTROL HANDLE KIT

Note: Includes ITEMS 5-6

$20.99

$

Usually ships in 2-4 days

0

5

Echo 9133505022

SCREW - 5X20

$0.99

$

In Stock, Qty 9

0

6

Echo C412000410

HANDLE, CONTROL - LEFT
(Superseded to P021044940)

$20.99

$

Usually ships in 2-4 days

0

7

Echo 9211405000

LOCKNUT
(Superseded to P022037470)

$5.99

$

In Stock, Qty 5

0

8

Echo V252000370

SCREW - 4X23

$1.99

$

In Stock, Qty 6

0

9

Echo V262000100

NUT - 4

$0.99

$

In Stock, Qty 20+

0

10

Echo V252000360

SCREW - 4X16 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

11

Echo V430004400

CABLE, THROTTLE

$15.99

$

In Stock, only 2 left!

0

12

Echo C450000581

TRIGGER, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

13

Echo V452000690

SPRING, TRIGGER

$0.99

$

In Stock, Qty 9

0

14

Echo C460000241

LEVER, TRIGGER LOCKOUT

$1.99

$

In Stock, only 1 left!

0

15

Echo V450001020

SPRING

$0.99

$

In Stock, Qty 9

0

16

Echo P021041710

IGNITION SWITCH ASSY
(Superseded to P021041711)

$26.99

$

In Stock, only 1 left!

0

17

Echo V162000410

PLUG

$2.49

$

In Stock, only 4 left!

0

18

Echo C410000710

HANDLE - REAR
(Superseded to P200000200)

$51.99

$

In Stock, only 2 left!

0

19

Echo V490001100

CLIP

$0.99

$

In Stock, Qty 12

0

20

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

21

Echo 90051500006

NUT - 6 -- FLANGE

$0.99

$

Usually ships in 2-4 days

0

22

Echo V804000030

SCREW - 4X8

$0.99

$

In Stock, Qty 20+

0

23

Echo V806000110

SCREW - 6

$0.99

$

In Stock, Qty 20+

0

24

Echo V304000230

WASHER - CUP

$3.99

$

Usually ships in 2-4 days

0

25

Echo V354000310

COLLAR - 6

$3.49

$

Usually ships in 2-4 days

0

26

Echo P021040660

HANDLE BRACKET ASSY
(Superseded to P021040661)

Note: Include ITEM 27

$44.99

$

Usually ships in 2-4 days

0

27

Echo V420004390

CUSHION

$2.49

$

Usually ships in 2-4 days

0
