HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T25113001001 - T25113999999) Intake Parts Diagram

Hedge Trimmer, Single-Sided

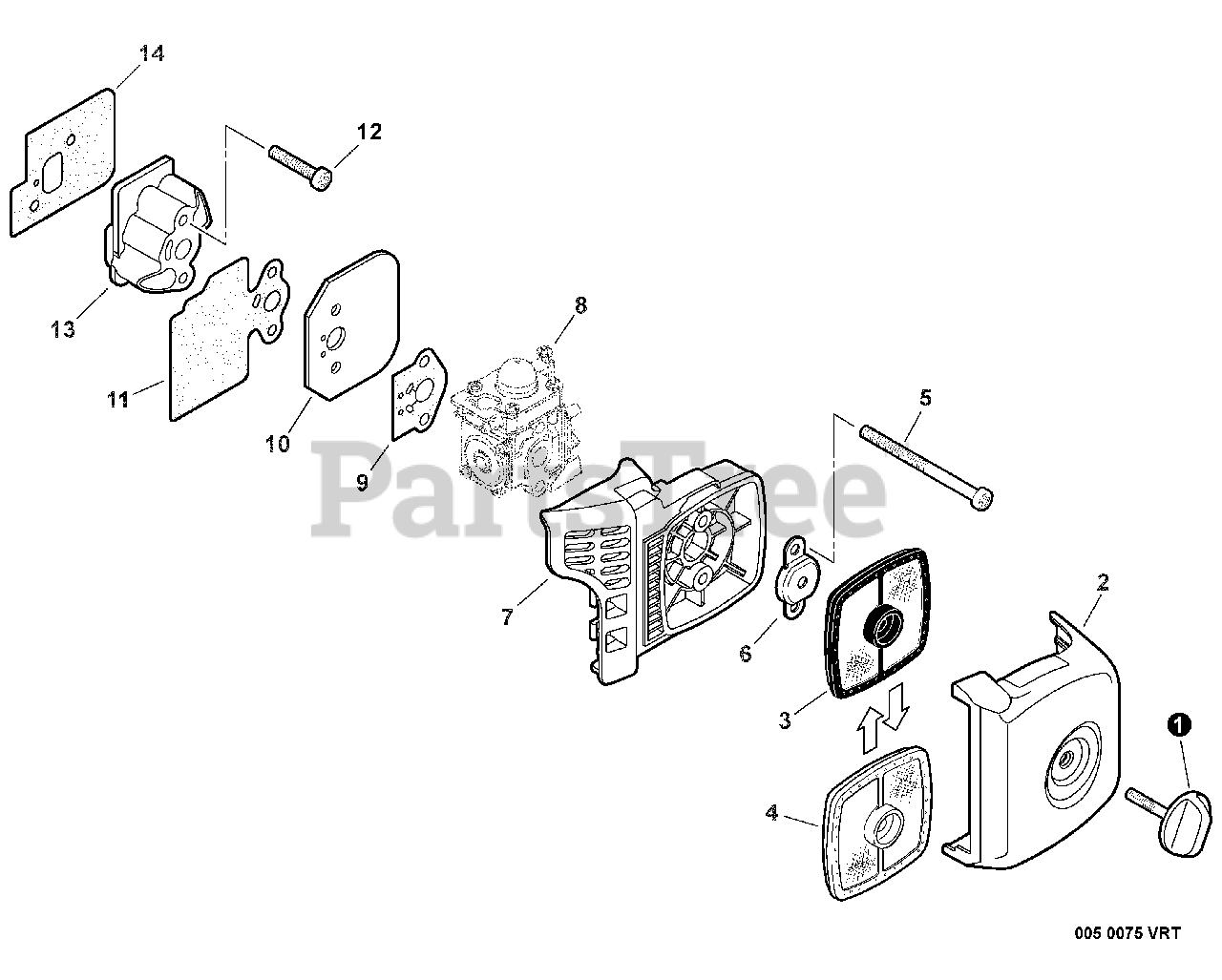

Intake Parts Diagram

  • Title

1

Echo V299000410

THUMBSCREW

$6.49

$

In Stock, only 4 left!

0

2

Echo A232001630

COVER, AIR FILTER

$5.99

$

In Stock, only 1 left!

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

5

Echo V805000100

SCREW - 5X65

$1.99

$

In Stock, Qty 5

0

6

Echo A244000070

PLATE, PREVENT

$4.99

$

In Stock, Qty 20+

0

7

Echo P021041570

CASE, AIR FILTER

$9.99

$

In Stock, only 4 left!

0

8

------------------

CARBURETOR

Note: See CARBURETOR Diagram For Details

$

$

Not available

9

Echo V103001420

GASKET, INTAKE

$0.99

$

In Stock, Qty 5

0

10

Echo A209000610

PLATE, INSULATOR

$3.99

$

Usually ships in 2-4 days

0

11

Echo V103001410

GASKET, INTAKE

$3.99

$

In Stock, Qty 10

0

12

Echo V805000170

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo A200000940

INSULATOR, INTAKE
(Superseded to A200000941)

$4.99

$

In Stock, Qty 5

0

14

Echo V103001401

GASKET, INTAKE
(Superseded to V103002030)

$1.49

$

In Stock, Qty 20+

0
