HT 232 - RedMax Hedge Trimmer (1992-12) 008 - CUTTER GROUP Parts Diagram

Hedge Trimmer

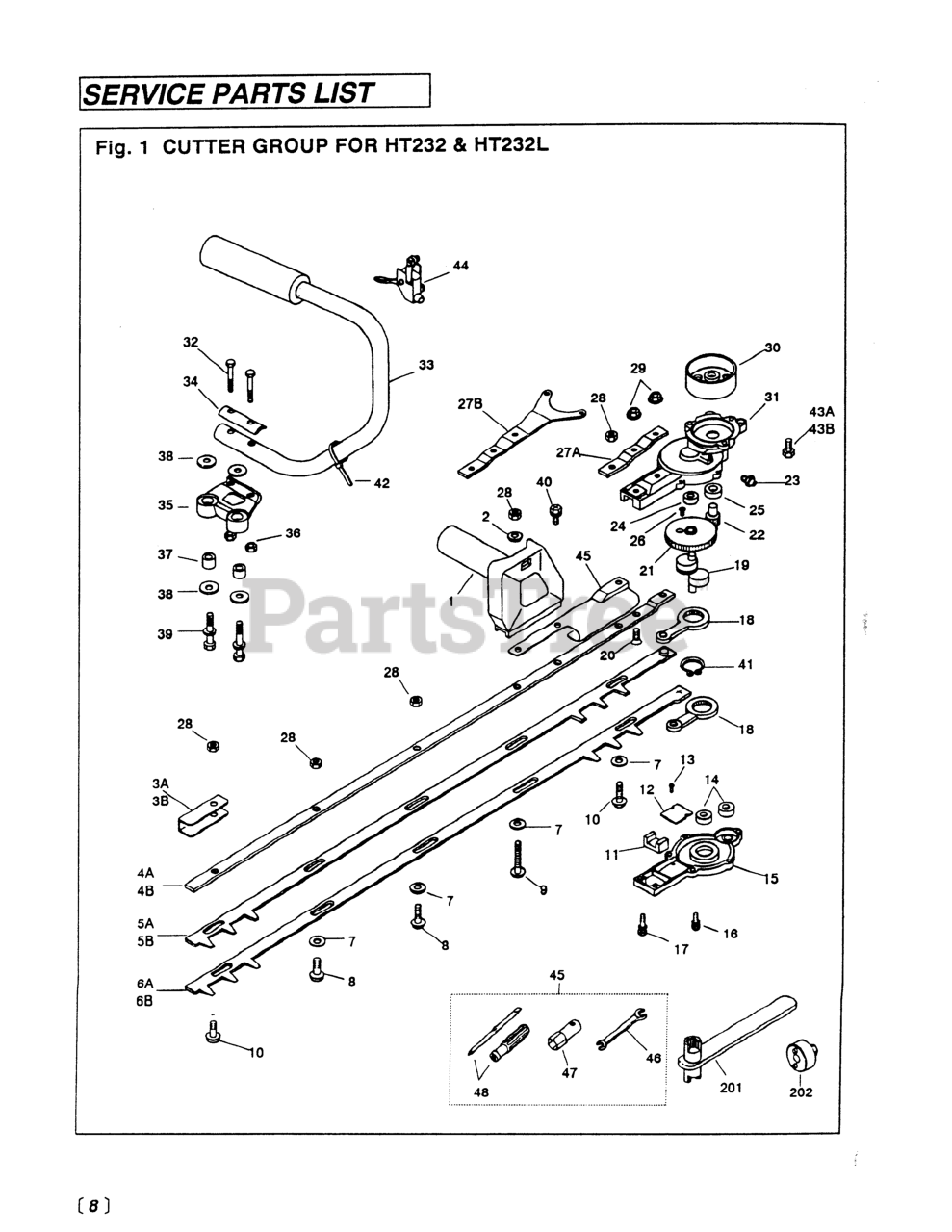

008 - CUTTER GROUP Parts Diagram

  • Title
1

RedMax 388312101

HANDLE (RPLS -12100)
(Superseded to 515235601)

$37.99

$

Usually ships in 3-10 days

0

2

$0.67

$

Usually ships in 3-10 days

0

3A

RedMax 388011750

REINFORCE, END

$

$

Not available

4A

RedMax 388311610

3883-11612

$

$

Not available

5A

RedMax 388011720

BLADE, UPPER, 30
(Superseded to 515231501)

$133.99

$

Usually ships in 3-10 days

0

6A

RedMax 388011730

BLADE, LOWER, 30
(Superseded to 515231701)

$133.99

$

Usually ships in 3-10 days

0

7

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

8

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 609511810

6095-11810-10
(Superseded to 521415401)

$

$

Not available

10

RedMax 388411660

3884-11660-10
(Superseded to 521297201)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 387311320

FELT
(Superseded to 521286401)

$14.99

$

Usually ships in 3-10 days

0

12

RedMax 388011340

PLATE
(Superseded to 521291301)

$

$

Not available

13

RedMax 026000305

SCREW, M3 x 5
(Superseded to 516093501)

$

$

Not available

14

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

15

RedMax 387311210

CASE, LOWER
(Superseded to 515223301)

$43.99

$

Usually ships in 3-10 days

0

16

RedMax 022510516

BOLT, M5 x 16
(Superseded to 516088601)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 022510520

BOLT, M5 X 20
(Superseded to 510454001)

$

$

Not available

18

RedMax 387311500

ROD
(Superseded to 515223901)

$72.99

$

Usually ships in 3-10 days

0

19

RedMax 388611450

CRANKSHAFT

$69.57

$

Usually ships in 3-10 days

0

20

RedMax 387311630

SCREW
(Superseded to 521287401)

$1.49

$

Usually ships in 3-10 days

0

21

RedMax 388411440

GEAR
(Superseded to 521297001)

$

$

Not available

22

RedMax 388411420

PINION
(Superseded to 515236201)

$

$

Not available

23

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

24

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

25

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

26

RedMax 387311460

SCREW
(Superseded to 521286801)

$1.49

$

Usually ships in 3-10 days

0

27A

RedMax 387611670

PLATE (RPLS 3880-11130)
(Superseded to 515227201)

$11.99

$

Usually ships in 3-10 days

0

28

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

29

RedMax 388011140

NUT
(Superseded to 521290901)

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 388411410

DRUM, CLUTCH
(Superseded to 521296801)

$43.99

$

Usually ships in 3-10 days

0

31

RedMax 388711110

3887-11111

$

$

Not available

32

RedMax 021250350

0212-50530

$

$

Not available

33

RedMax 388713100

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

34

$6.10

$

Usually ships in 3-10 days

0

35

RedMax 609513320

BRACKET
(Superseded to 521416501)

$

$

Not available

36

RedMax 387614470

NUT (RPLS 3873-14470)
(Superseded to 521290101)

$

$

Not available

37

$11.84

$

Usually ships in 3-10 days

0

38

$0.46

$

Usually ships in 3-10 days

0

39

RedMax 022510625

0225-50625

$

$

Not available

40

RedMax 388312140

BOLT
(Superseded to 521296701)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 0406402512

RING, SNAP, M25 X 1.2
(Superseded to 516124701)

$3.99

$

Usually ships in 3-10 days

0

42

RedMax 388013350

BAND, CABLE

$0.77

$

Usually ships in 3-10 days

0

43A

RedMax 022510614

BOLT, M6 X 14
(Superseded to 510454301)

$

$

Not available

44

RedMax 388113210

LEVER ASSEMBLY
(Superseded to 515235101)

$27.99

$

Usually ships in 3-10 days

0

45

RedMax 388791170

PROTECTOR
(Superseded to 515243201)

$39.99

$

Usually ships in 3-10 days

0

NI

RedMax 111191003

TOOL SET

$12.58

$

Usually ships in 3-10 days

0

46

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

47

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

48

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

201

$98.66

$

Usually ships in 3-10 days

0

202

RedMax 388095010

WRENCH (TOOL)

$97.99

$

Usually ships in 3-10 days

0
