HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T08511001001 - T08511999999) Cylinder / Crankcase / Piston Parts Diagram

Hedge Trimmer, Single-Sided

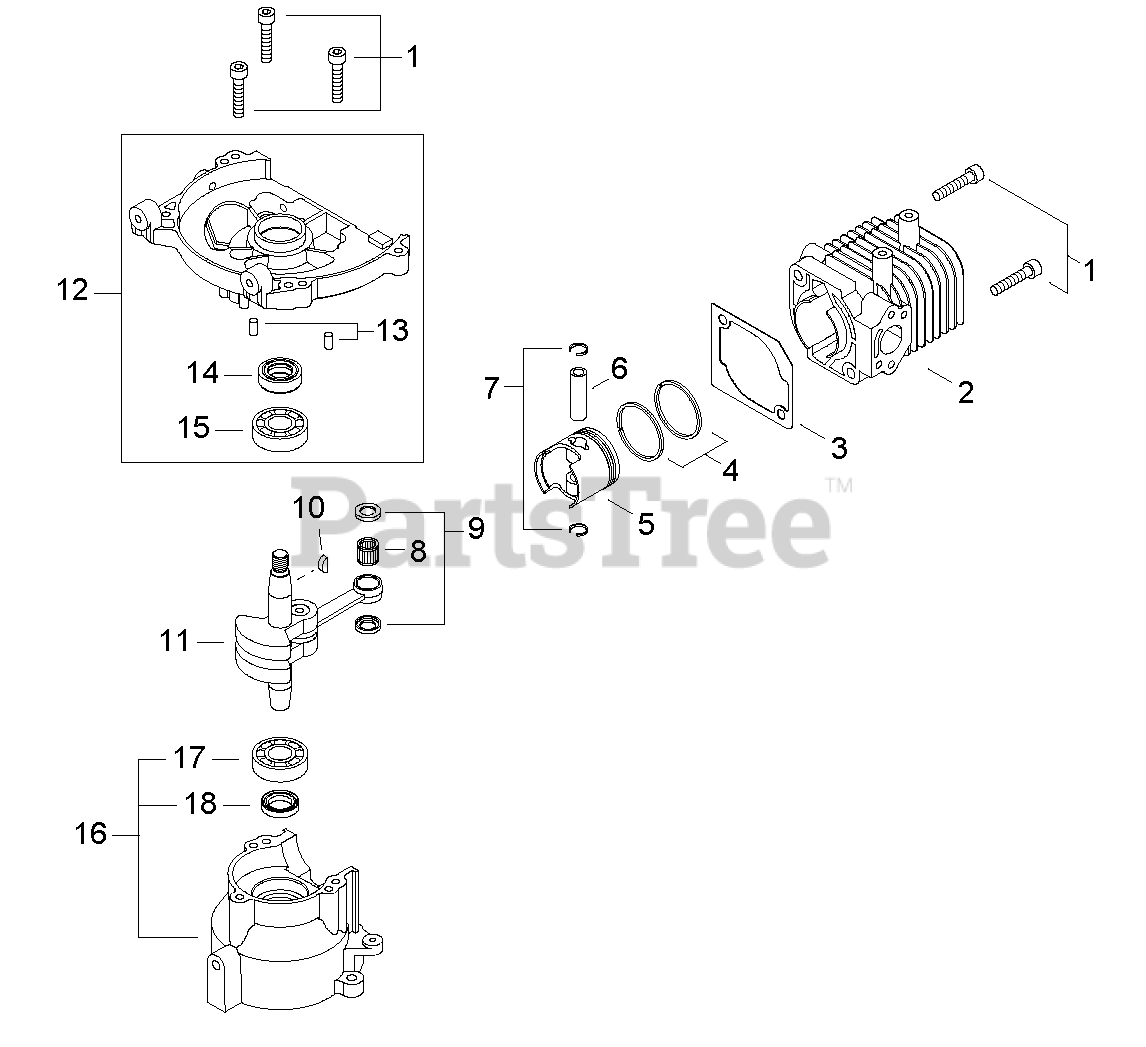

Cylinder / Crankcase / Piston Parts Diagram

  • Title

1

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

2

Echo A130001380

CYLINDER
(Superseded to A130001381)

$59.99

$

Usually ships in 2-4 days

0

3

Echo V100000480

GASKET, CYLINDER

$1.99

$

In Stock, only 3 left!

0

4

Echo A101000400

RING, PISTON

$6.49

$

In Stock, only 4 left!

0

5

Echo A100000720

PISTON

$40.99

$

Usually ships in 2-4 days

0

6

Echo V606000060

PIN, PISTON

$3.49

$

In Stock, only 1 left!

0

7

Echo V580000070

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo V553000080

BEARING, NEEDLE - 8

$6.49

$

Usually ships in 2-4 days

0

9

Echo V306000250

SPACER, PISTON

$2.49

$

Usually ships in 2-4 days

0

10

Echo 9311503010

KEY - 3X10

$0.99

$

In Stock, Qty 20+

0

11

Echo A011000910

CRANKSHAFT ASSY

$59.99

$

Usually ships in 2-4 days

0

12

Echo P021018910

CRANKCASE ASSY - FRONT

$29.99

$

Usually ships in 2-4 days

0

13

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

14

Echo V505000080

SEAL, OIL - 12

$2.99

$

In Stock, Qty 13

0

15

Echo V592000310

BEARING, BALL - 6001C3

$5.99

$

In Stock, only 3 left!

0

16

Echo P021018900

CRANKCASE ASSY

$27.99

$

Usually ships in 2-4 days

0

17

Echo V592000310

BEARING, BALL - 6001C3

$5.99

$

In Stock, only 3 left!

0

18

Echo V505000140

SEAL, OIL - 12

$3.49

$

In Stock, only 3 left!

0
