HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T08412001001 - T08412999999) Intake Parts Diagram

Hedge Trimmer, Single-Sided

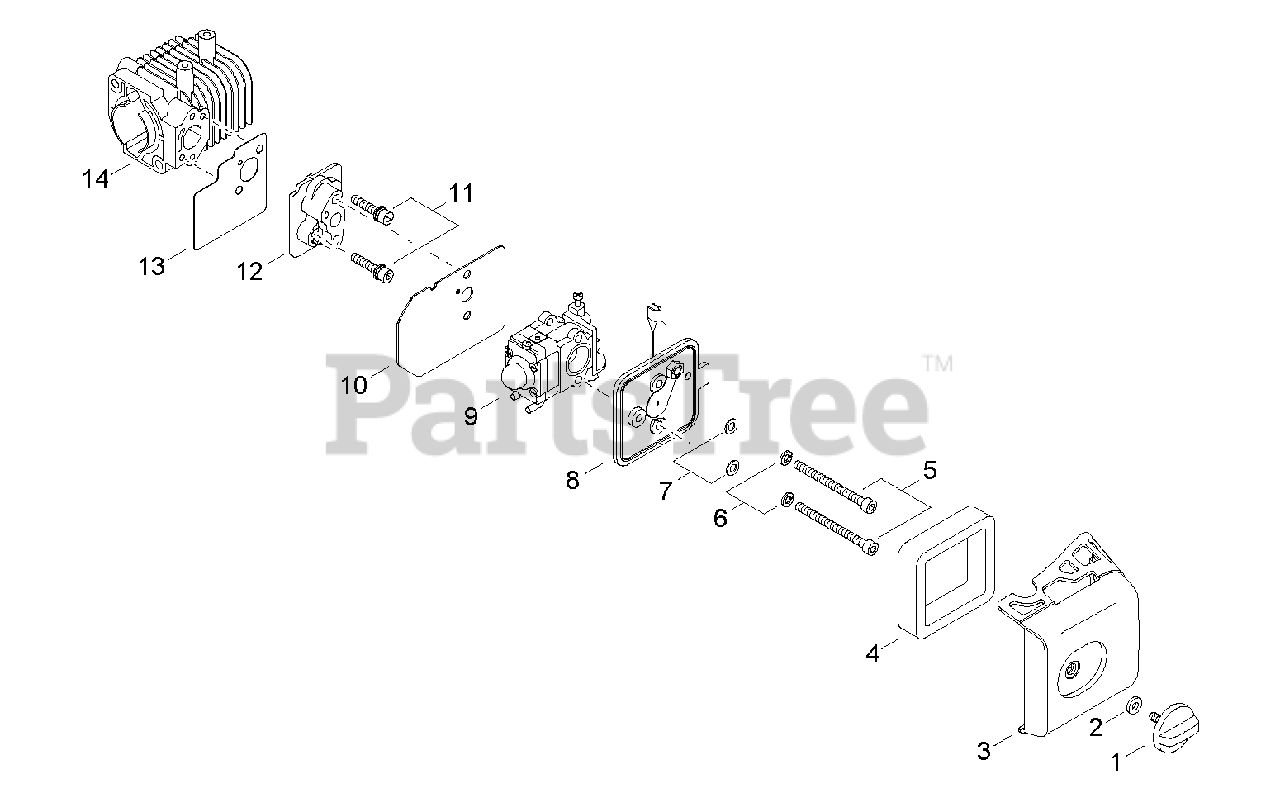

Intake Parts Diagram

  • Title

1

Echo V299000410

THUMBSCREW

$6.49

$

In Stock, only 4 left!

0

2

Echo V323000080

WASHER - VINYL

$0.99

$

In Stock, Qty 12

0

3

Echo A232000931

COVER, AIR FILTER

$8.99

$

Usually ships in 2-4 days

0

4

Echo A226000730

FILTER, AIR

$2.49

$

In Stock, Qty 20+

0

5

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

6

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo A023000220

AIR FILTER CASE ASSY

$20.99

$

Usually ships in 2-4 days

0

9

Echo A021003270

CARBURETOR WYJ-488
(Superseded to A021003271)

$98.99

$

Usually ships in 2-4 days

0

10

Echo V103001180

GASKET, INTAKE

$4.49

$

In Stock, only 4 left!

0

11

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

$

$

Not available

12

Echo A200000770

INSULATOR, INTAKE
(Superseded to A200000771)

$11.99

$

Usually ships in 2-4 days

0

13

Echo V103001170

GASKET, INTAKE

$1.99

$

In Stock, only 1 left!

0

14

Echo A130001380

CYLINDER
(Superseded to A130001381)

$59.99

$

Usually ships in 2-4 days

0
