HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T08412001001 - T08412999999) Fuel Tank Parts Diagram

Hedge Trimmer, Single-Sided

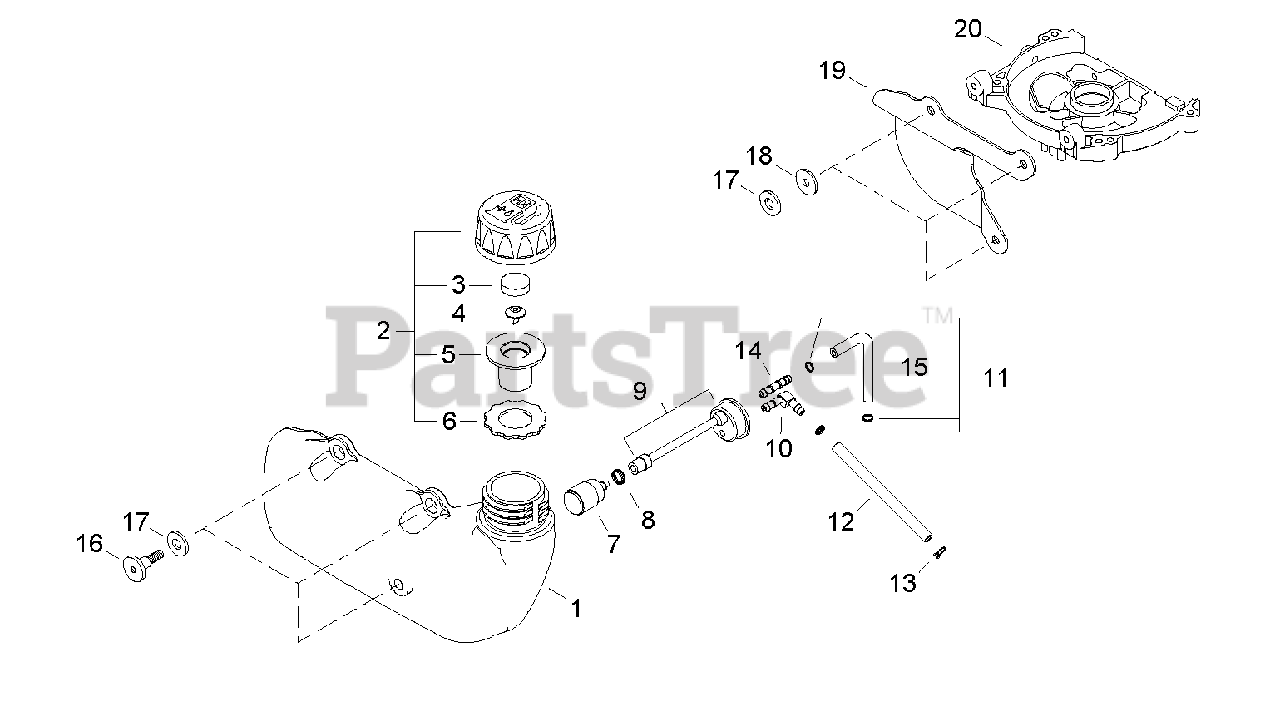

Fuel Tank Parts Diagram

  • Title

1

Echo A350001491

TANK, FUEL

$37.99

$

In Stock, only 3 left!

0

2

Echo A033000110

CAP ASSY

$18.99

$

In Stock, only 1 left!

0

3

Echo V540000280

SEAL

$0.99

$

Usually ships in 2-4 days

0

4

Echo E263000040

VENT, FUEL TANK

$11.99

$

Usually ships in 2-4 days

0

5

Echo P021035110

HOLDER, VENT

$4.49

$

Usually ships in 2-4 days

0

6

Echo V107000050

GASKET, CAP

$1.99

$

Usually ships in 2-4 days

0

7

Echo A369000000

FILTER, FUEL
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

8

Echo V490000610

CLIP - 7.8

$0.99

$

In Stock, Qty 12

0

9

Echo V470001190

FUEL PIPE ASSY

$8.99

$

In Stock, only 2 left!

0

10

Echo V186000270

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 17

0

11

Echo V490000500

CLIP - 6

$0.99

$

In Stock, Qty 19

0

12

Echo V471002760

PIPE - RETURN

$1.99

$

In Stock, Qty 8

0

13

Echo V490000510

CLIP - BUTTERFLY

$0.99

$

In Stock, Qty 13

0

14

Echo V186000210

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

15

Echo V471002770

PIPE - FUEL
(Superseded to V471002771)

$0.99

$

In Stock, Qty 12

0

16

Echo V203001690

BOLT - 5

$1.99

$

Usually ships in 2-4 days

0

17

Echo V324000000

WASHER - 6

$1.99

$

In Stock, Qty 5

0

18

Echo V303000240

WASHER - 5

$0.99

$

In Stock, only 4 left!

0

19

Echo A209000270

SHIELD, HEAT

$17.99

$

Usually ships in 2-4 days

0

20

Echo P021018910

CRANKCASE ASSY - FRONT

$29.99

$

Usually ships in 2-4 days

0
