HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T08412001001 - T08412999999) Exhaust Parts Diagram

Hedge Trimmer, Single-Sided

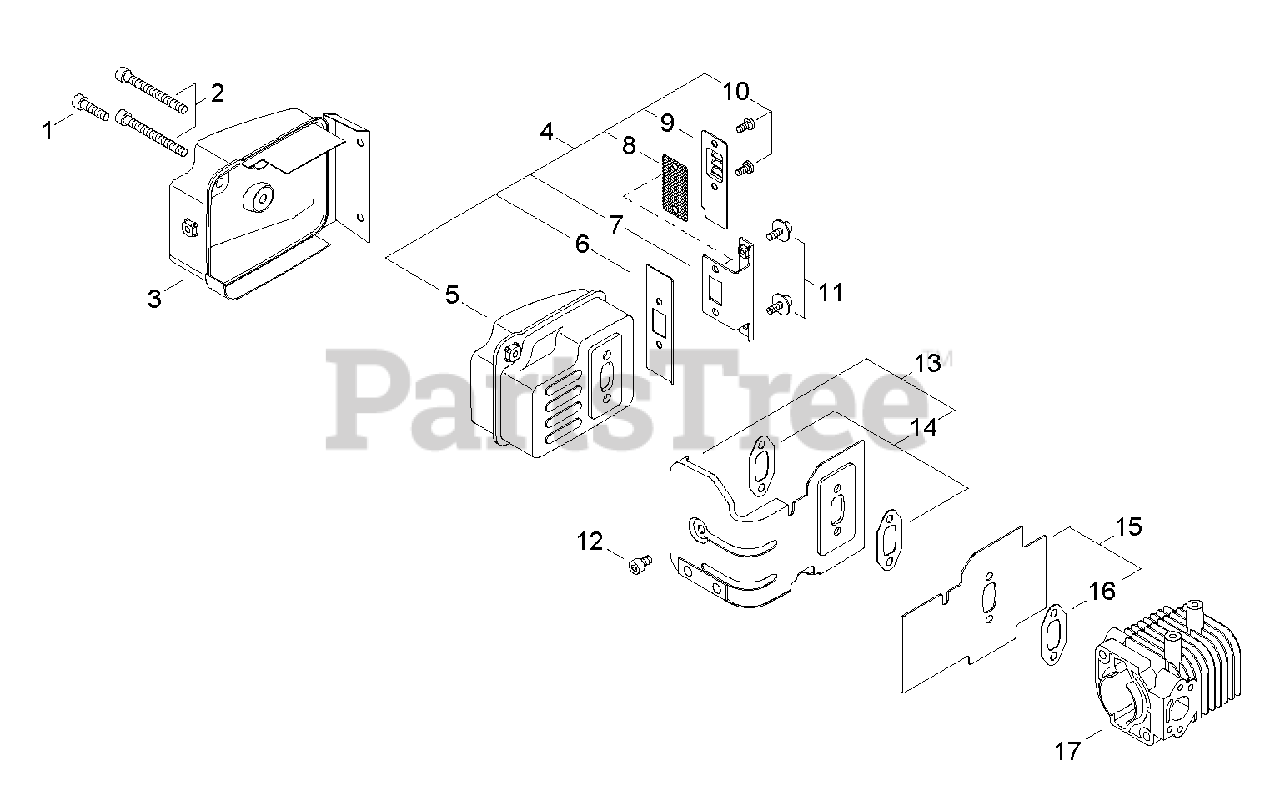

Exhaust Parts Diagram

  • Title
1

Echo 9110905020

SCREW - 5X20

$1.99

$

Usually ships in 2-4 days

0

2

Echo V203001110

SCREW - 5

$3.49

$

Usually ships in 2-4 days

0

3

Echo A308000010

COVER, MUFFLER

$23.99

$

Usually ships in 2-4 days

0

4

Echo A030000321

MUFFLER ASSY

$143.99

$

Usually ships in 2-4 days

0

5

Echo A300001270

MUFFLER

$163.99

$

Usually ships in 2-4 days

0

6

$1.99

$

Usually ships in 2-4 days

0

7

Echo A319000090

BRACKET, MUFFLER

$4.49

$

Usually ships in 2-4 days

0

8

Echo A310000250

SCREEN, SPARK ARRESTOR

$2.49

$

Usually ships in 2-4 days

0

9

Echo A313001371

GUIDE, EXHAUST

$3.49

$

In Stock, only 2 left!

0

10

Echo 9157804008

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0

11

Echo V252000350

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90010505008

SCREW - 5X8

$0.99

$

In Stock, Qty 20+

0

13

Echo V104001460

HEAT SHIELD KIT

$13.99

$

Usually ships in 2-4 days

0

14

Echo V104001470

HEAT SHIELD KIT

$1.99

$

In Stock, only 2 left!

0

15

Echo V104001490

EXHAUST SHIELD KIT

$8.49

$

Usually ships in 2-4 days

0

16

Echo V104001470

HEAT SHIELD KIT

$1.99

$

In Stock, only 2 left!

0

17

Echo A130001380

CYLINDER
(Superseded to A130001381)

$59.99

$

Usually ships in 2-4 days

0
