HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (Original Version) Gearcase Parts Diagram

Hedge Trimmer, Single-Sided

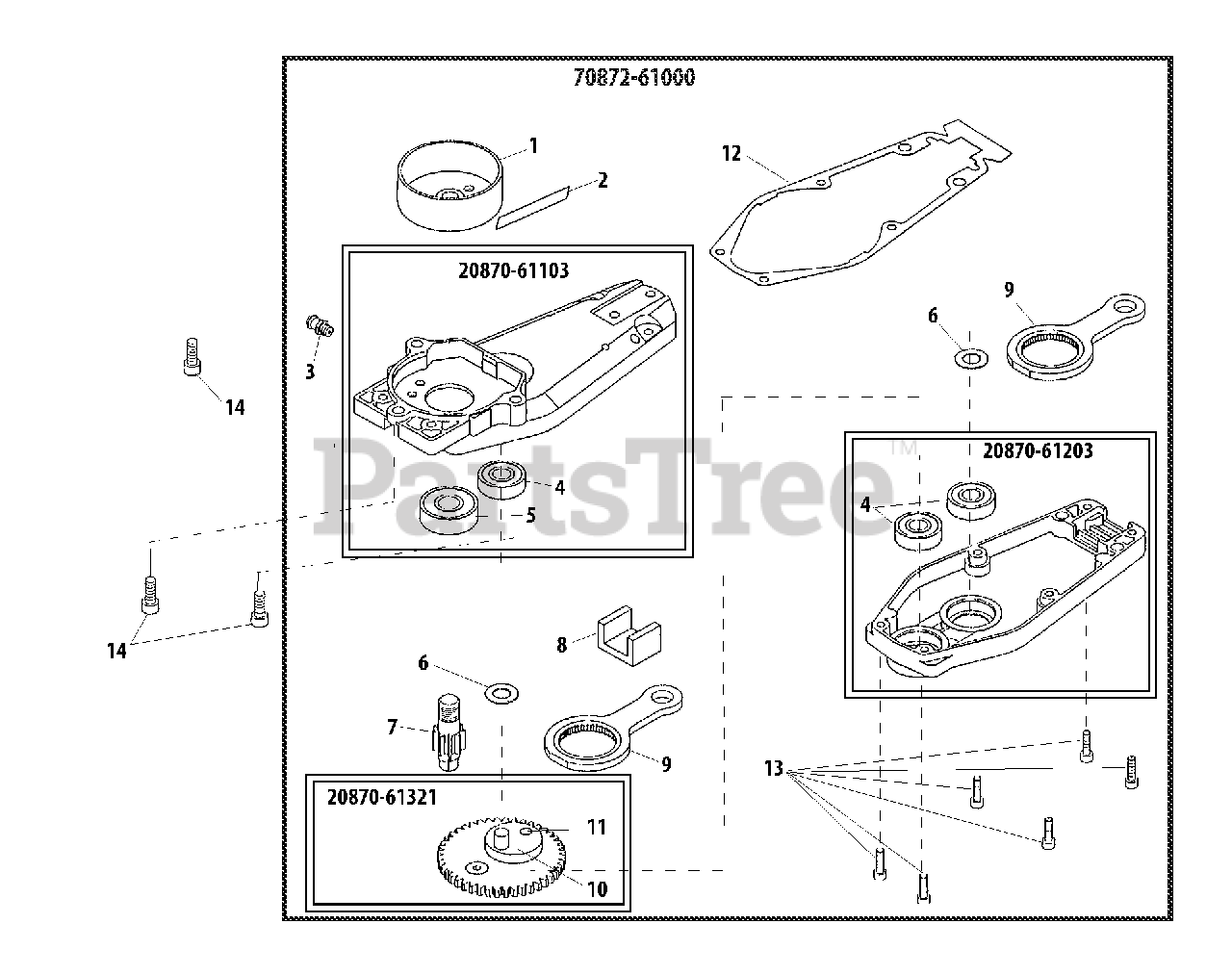

Gearcase Parts Diagram

  • Title
70872-61000

Echo 70872-61000

GEAR CASE ASSY
(Superseded to P021030590)

$365.99

$

Usually ships in 2-4 days

0

1

Echo 20870-61420

DRUM, CLUTCH
(Superseded to A556000930)

Note: LH Thread

$21.99

$

Usually ships in 2-4 days

0

2

Echo 19402-00134

LABEL - LUBRICATION
(Superseded to X505003390)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, Qty 14

0

20870-61103

Echo 20870-61103

GEAR CASE ASSY - UPPER
(Superseded to P021018920)

$60.99

$

Usually ships in 2-4 days

0

4

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 15

0

5

Echo 02006-06201

BEARING, BALL - 6201
(Superseded to 90081206201)

$12.99

$

In Stock, only 3 left!

0

20870-61203

Echo 20870-61203

GEAR CASE ASSY - LOWER
(Superseded to P021018930)

$43.99

$

In Stock, only 1 left!

0

4

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 15

0

6

Echo 15401-11008

SPACER, PISTON
(Superseded to V307000240)

$0.99

$

In Stock, only 4 left!

0

7

Echo 20870-61410

GEAR - SHAFT
(Superseded to V655000050)

$29.99

$

Usually ships in 2-4 days

0

8

Echo 20870-61630

SEAL, FELT
(Superseded to V541000210)

$3.49

$

In Stock, only 2 left!

0

9

Echo 20870-61500

ROD, CONNECTING
(Superseded to C532000210)

Note: 52 Bearings each

$64.99

$

In Stock, Qty 11

0

10

Echo 20870-61301

GEAR - SPUR
(Superseded to V060000080)

$80.99

$

Usually ships in 2-4 days

0

11

Echo 20870-61340

BOLT
(Superseded to V203001100)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 20870-61650

GASKET, GEAR CASE
(Superseded to V110000130)

$1.99

$

In Stock, Qty 13

0

13

Echo 20870-61340

BOLT
(Superseded to V203001100)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 01020-06160

SCREW - 6X16
(Superseded to 90010506016)

$0.99

$

In Stock, Qty 10

0

20870-61321

Echo 20870-61321

UNKNOWN
(Superseded to C533000150)

$21.99

$

In Stock, only 1 left!

0
