HT 2300 L - RedMax Hedge Trimmer (SN: 968060 & Above) (2001-03) 018 - CUTTER GROUP Parts Diagram

Hedge Trimmer

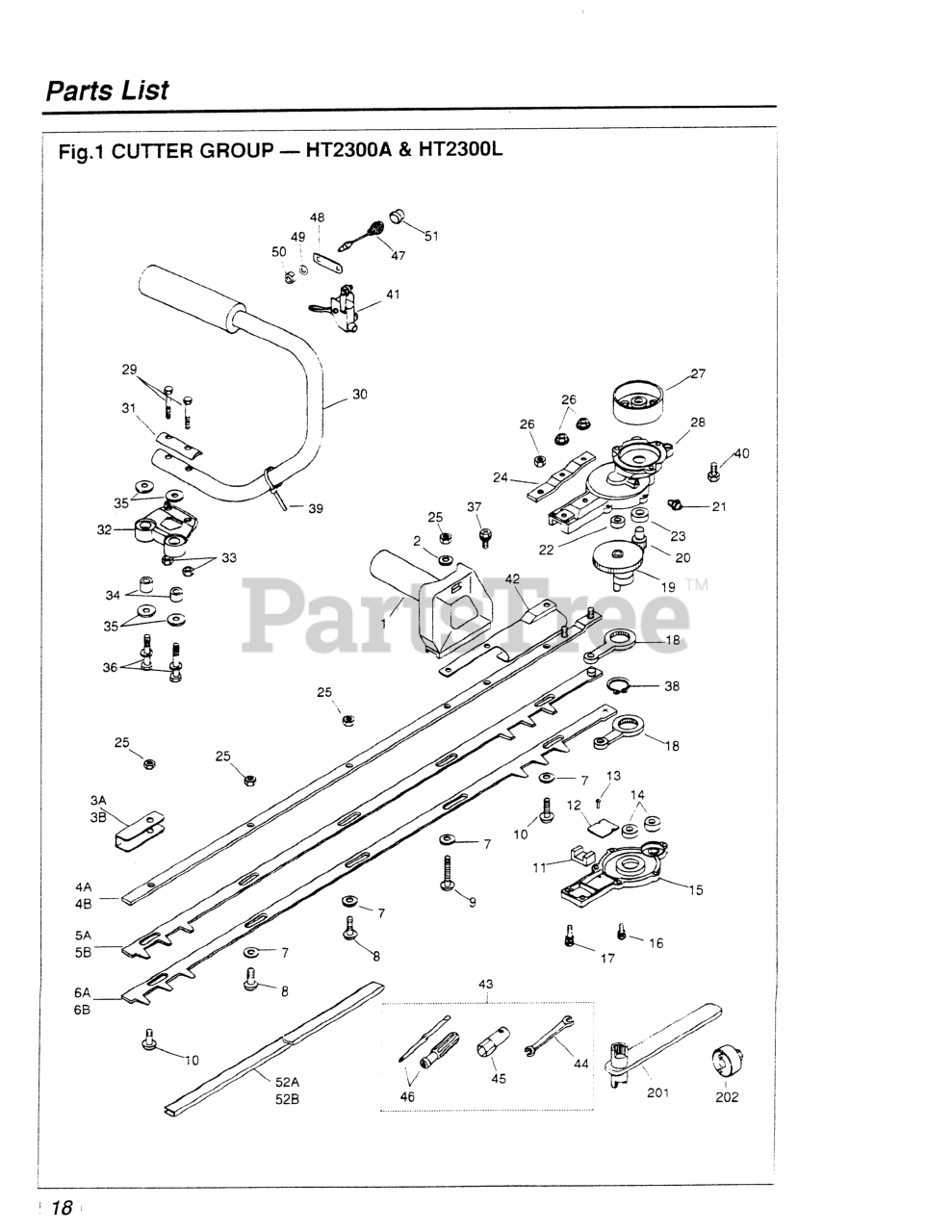

018 - CUTTER GROUP Parts Diagram

  • Title
1

RedMax 388312101

HANDLE (RPLS -12100)
(Superseded to 515235601)

$37.99

$

Usually ships in 3-10 days

0

2

$0.67

$

Usually ships in 3-10 days

0

3B

RedMax 388511750

REINFORCE
(Superseded to 574083001)

$9.99

$

Usually ships in 3-10 days

0

4B

RedMax 392711612

GUIDE PLATE (RPLS -11611) 40
(Superseded to 521312601)

$

$

Not available

5B

RedMax 392711720

BLADE, UPPER 40
(Superseded to 515293501)

$

$

Not available

6B

RedMax 392711730

BLADE, LOWER 40
(Superseded to 515293601)

$170.99

$

Usually ships in 3-10 days

0

7

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

8

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 609511810

6095-11810-10
(Superseded to 521415401)

$

$

Not available

10

RedMax 388411660

3884-11660-10
(Superseded to 521297201)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 387311320

FELT
(Superseded to 521286401)

$14.99

$

Usually ships in 3-10 days

0

12

RedMax 388011340

PLATE
(Superseded to 521291301)

$

$

Not available

13

RedMax 026000305

SCREW, M3 x 5
(Superseded to 516093501)

$

$

Not available

14

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

15

RedMax 387311210

CASE, LOWER
(Superseded to 515223301)

$43.99

$

Usually ships in 3-10 days

0

16

RedMax 022510516

BOLT, M5 x 16
(Superseded to 516088601)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 022510520

BOLT, M5 X 20
(Superseded to 510454001)

$

$

Not available

18

RedMax 387311500

ROD
(Superseded to 515223901)

$72.99

$

Usually ships in 3-10 days

0

19

RedMax 683011400

GEAR COMPLETE
(Superseded to 515708101)

$

$

Not available

20

RedMax 388411420

PINION
(Superseded to 515236201)

$

$

Not available

21

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

22

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

23

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

24

RedMax 387611670

PLATE (RPLS 3880-11130)
(Superseded to 515227201)

$11.99

$

Usually ships in 3-10 days

0

25

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

26

RedMax 388011140

NUT
(Superseded to 521290901)

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 388411410

DRUM, CLUTCH
(Superseded to 521296801)

$43.99

$

Usually ships in 3-10 days

0

28

RedMax 388711111

CASE, UPPER (RPLS -11110)
(Superseded to 521298201)

$

$

Not available

29

RedMax 021250530

BOLT, M5X30 (RPLS -50350)
(Superseded to 516081001)

$

$

Not available

30

RedMax 683013100

HANDLE, LEFT
(Superseded to 515708201)

$

$

Not available

31

$6.10

$

Usually ships in 3-10 days

0

32

RedMax 609513320

BRACKET
(Superseded to 521416501)

$

$

Not available

33

RedMax 387614470

NUT (RPLS 3873-14470)
(Superseded to 521290101)

$

$

Not available

34

$11.84

$

Usually ships in 3-10 days

0

35

$0.46

$

Usually ships in 3-10 days

0

36

RedMax 022510625

0225-50625

$

$

Not available

37

RedMax 388312140

BOLT
(Superseded to 521296701)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 0406402512

RING, SNAP, M25 X 1.2
(Superseded to 516124701)

$3.99

$

Usually ships in 3-10 days

0

39

RedMax 388013350

BAND, CABLE

$0.77

$

Usually ships in 3-10 days

0

40

RedMax 022510614

BOLT, M6 X 14
(Superseded to 510454301)

$

$

Not available

41

RedMax 388113210

LEVER ASSEMBLY
(Superseded to 515235101)

$27.99

$

Usually ships in 3-10 days

0

42

RedMax 388791170

PROTECTOR
(Superseded to 515243201)

$39.99

$

Usually ships in 3-10 days

0

43

RedMax 111191003

TOOL SET

$12.58

$

Usually ships in 3-10 days

0

44

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

45

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

46

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

47

RedMax 105972210

5602-74100
(Superseded to 560274100)

$

$

Not available

48

RedMax 112072110

PLATE
(Superseded to 516187601)

$

$

Not available

49

RedMax 152072220

WASHER
(Superseded to 516369801)

$

$

Not available

50

RedMax 152072230

NUT
(Superseded to 516369901)

$

$

Not available

51

RedMax 342272250

CAP
(Superseded to 521118301)

$

$

Not available

52B

RedMax 392791140

COVER, BLADE (40

$

$

Not available

201

$98.66

$

Usually ships in 3-10 days

0

202

RedMax 388095010

WRENCH (TOOL)

$97.99

$

Usually ships in 3-10 days

0
