HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Fuel Tank Parts Diagram

Hedge Trimmer, Single-Sided

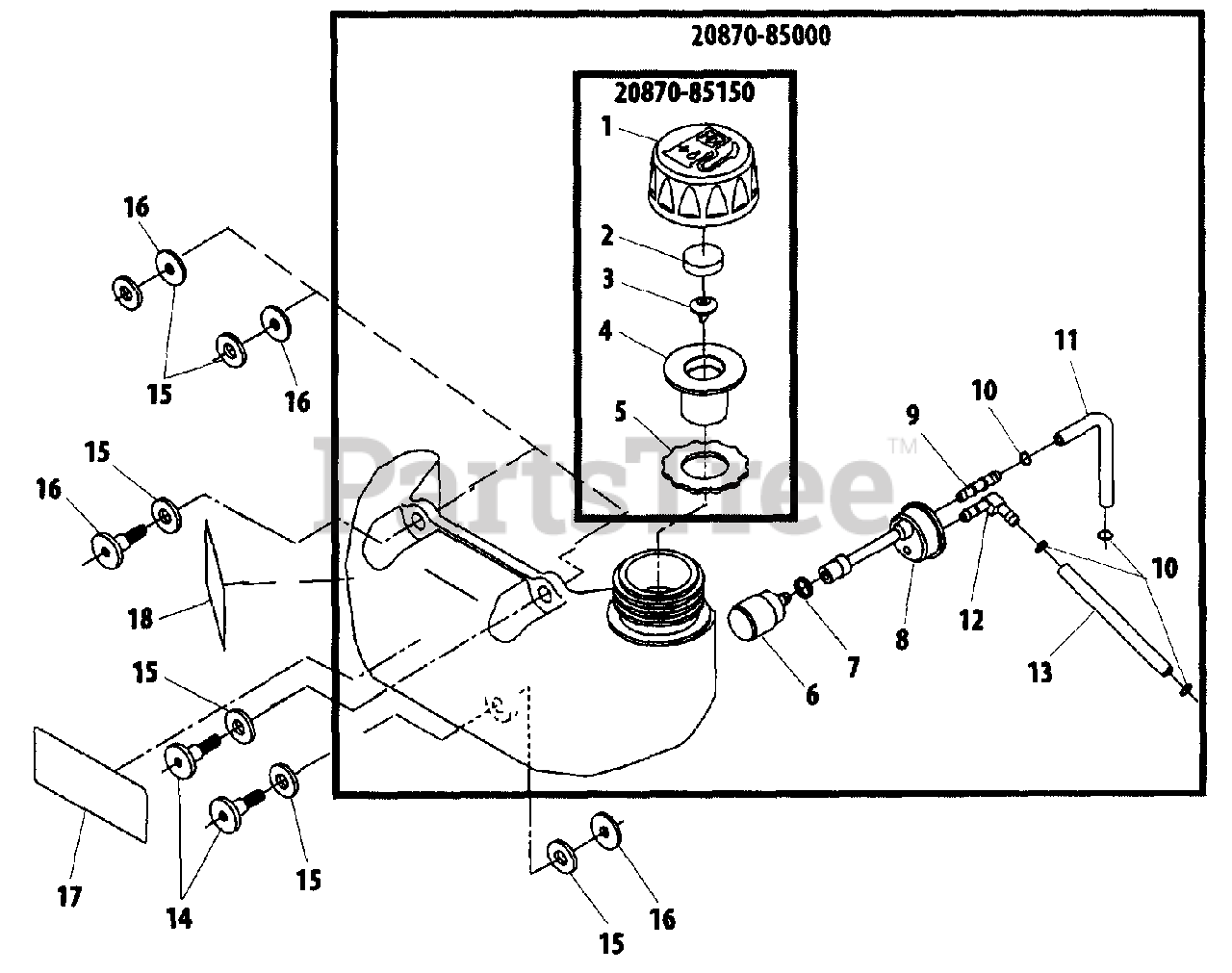

Fuel Tank Parts Diagram

  • Title

20870-85000

Echo 20870-85000

FUEL TANK ASSY
(Superseded to 20870-85102)

$51.99

$

In Stock, only 1 left!

0

20870-85150

Echo 20870-85150

CAP ASSY
(Superseded to 20870-85151)

$18.99

$

In Stock, only 1 left!

0

1

Echo 20040-85211

CAP, FUEL
(Superseded to 20870-85310)

$18.99

$

In Stock, only 1 left!

0

2

Echo 20870-85211

COVER, VENT
(Superseded to 20870-85210)

$0.99

$

Usually ships in 2-4 days

0

3

Echo 20040-85260

VENT
(Superseded to A356000070)

$9.49

$

Usually ships in 2-4 days

0

4

Echo 20870-85170

HOLDER, VENT
(Superseded to P021035110)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 20870-85160

GASKET, CAP
(Superseded to V107000050)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

7

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

8

Echo 20870-85121

FUEL PIPE ASSY
(Superseded to V470001190)

$8.99

$

In Stock, only 2 left!

0

9

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

10

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

11

Echo 20870-85140

PIPE - FUEL
(Superseded to V471002770)

$0.99

$

In Stock, Qty 12

0

12

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

13

Echo 20870-85131

PIPE - RETURN
(Superseded to 20870-85132)

$1.99

$

In Stock, Qty 8

0

14

Echo 20870-85240

BOLT
(Superseded to V203001690)

$1.99

$

Usually ships in 2-4 days

0

15

Echo 20870-85230

WASHER
(Superseded to V324000000)

$1.99

$

In Stock, Qty 5

0

16

Echo 20870-85220

WASHER
(Superseded to 15401-10022)

$0.99

$

In Stock, only 4 left!

0

17

Echo 19402-00144

LABEL - CAUTION
(Superseded to X505003380)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 19426-00036

LABEL
(Superseded to Discontinued)

$

$

Not available
