HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Flywheel Parts Diagram

Hedge Trimmer, Single-Sided

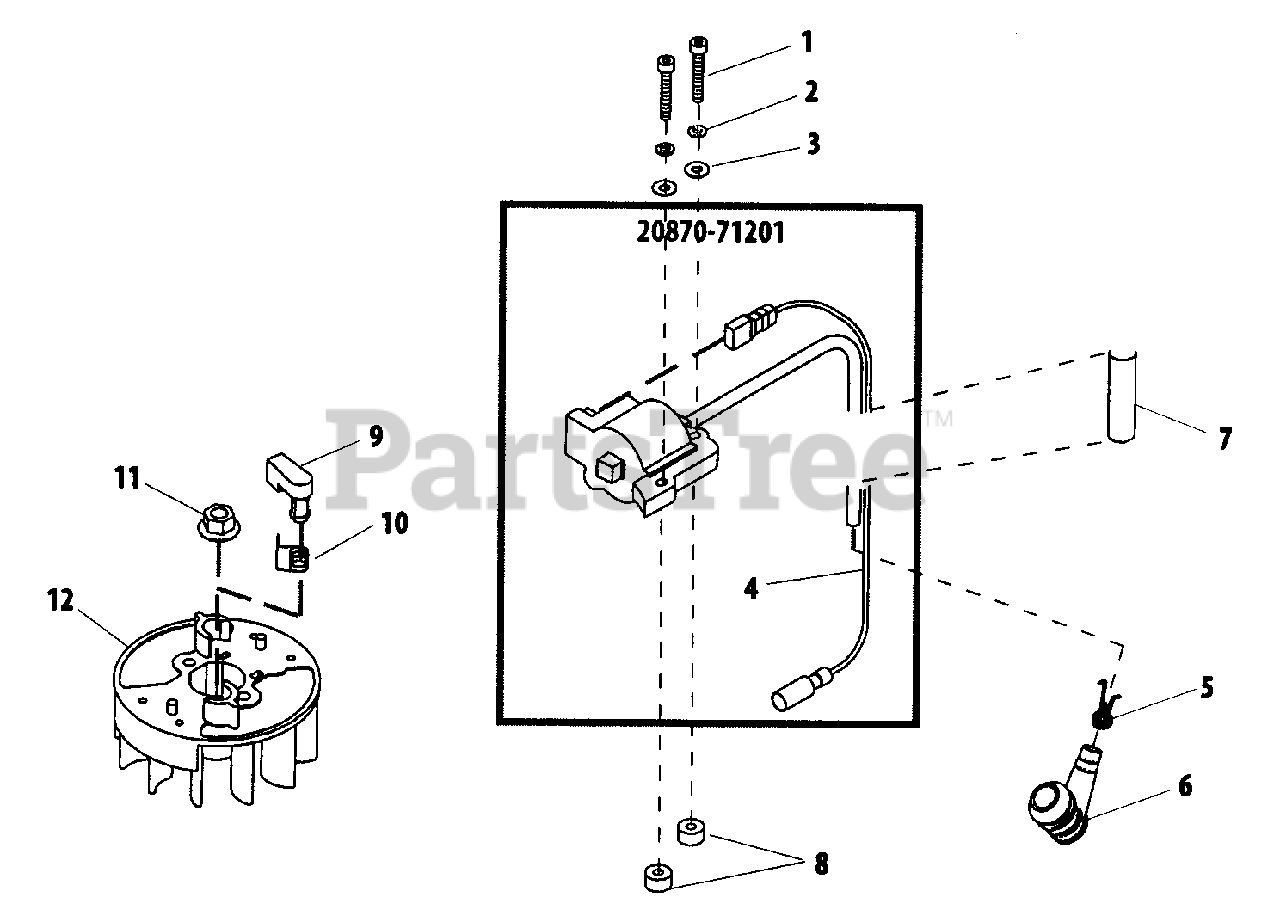

Flywheel Parts Diagram

  • Title
1

Echo 01020-04260

SCREW - 4X26
(Superseded to Discontinued)

$

$

Not available

2

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

3

Echo 01613-04080

WASHER - 4
(Superseded to 90060300004)

$0.99

$

Usually ships in 2-4 days

0

20870-71201

Echo 20870-71201

IGNITION COIL ASSY
(Superseded to 20870-71202)

$86.99

$

In Stock, only 1 left!

0

4

Echo 20870-71221

WIRE
(Superseded to V485001930)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 12

0

6

Echo 22160-72220

CAP, SPARK PLUG
(Superseded to A427000060)

$5.99

$

In Stock, Qty 12

0

7

Echo 20016-71651

TUBE
(Superseded to V475005140)

$0.99

$

In Stock, Qty 12

0

8

Echo 70030-71620

INSULATOR
(Superseded to V322000040)

$0.99

$

In Stock, only 3 left!

0

9

Echo 20870-71120

PAWL, STARTER
(Superseded to A514000190)

$1.99

$

In Stock, only 4 left!

0

10

Echo 20870-71130

SPRING
(Superseded to V452000620)

$0.99

$

In Stock, Qty 5

0

11

Echo 20035-71220

NUT - 8
(Superseded to V265000140)

$0.99

$

In Stock, Qty 8

0

12

Echo 20870-71110

FLYWHEEL
(Superseded to A409000720)

$38.99

$

Usually ships in 2-4 days

0
