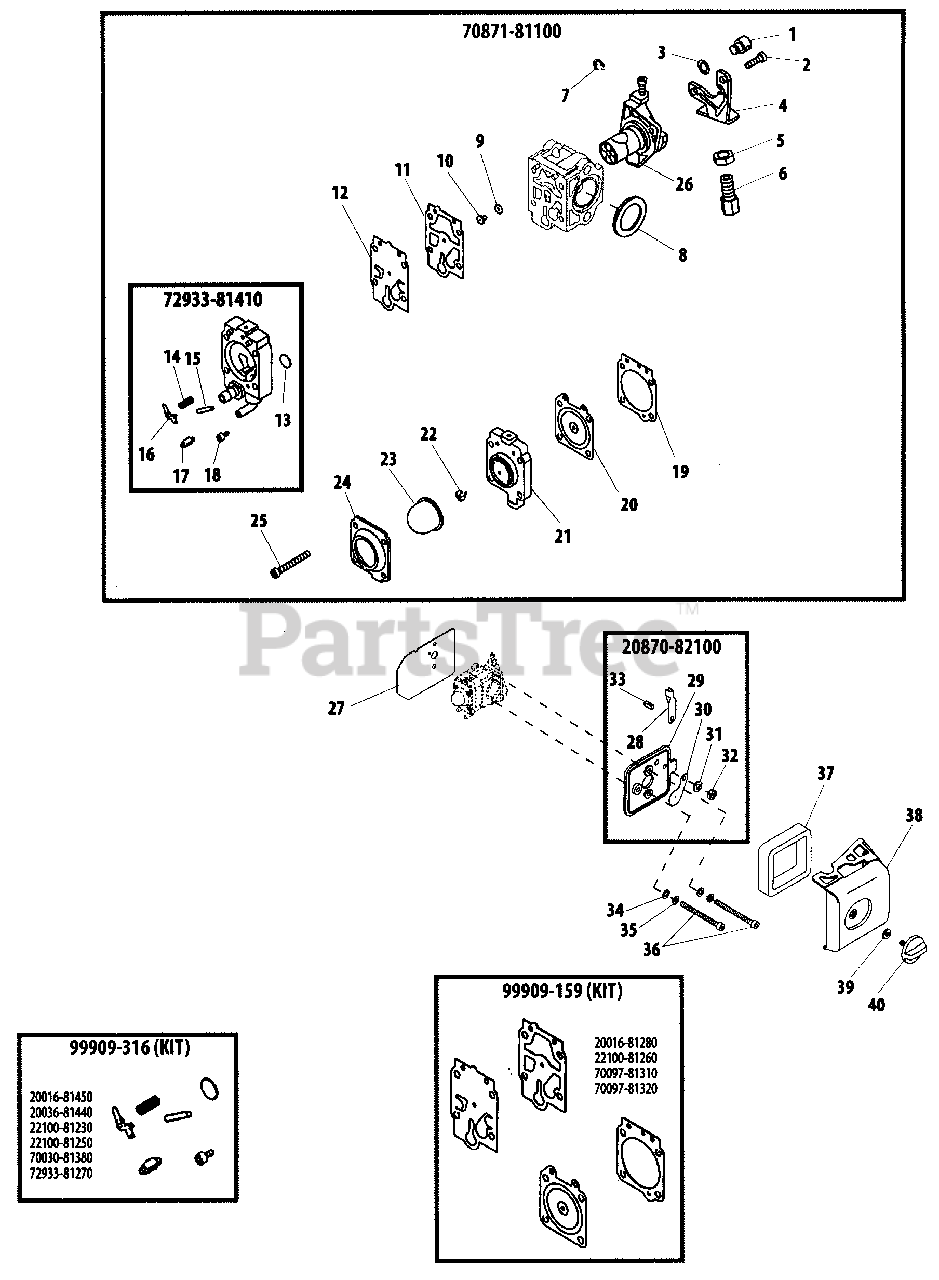

HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Carburetor Parts Diagram

Hedge Trimmer, Single-Sided

Carburetor Parts Diagram

  • Title
70871-81100

Echo 70871-81100

CARBURETOR
(Superseded to A021002690)

$73.99

$

In Stock, only 1 left!

0

1

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

2

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

3

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

4

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

6

Echo 20089-81110

NUT, CABLE ADJUST

$

$

Not available

7

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

8

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

9

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

10

Echo 72934-81230

JET
(Superseded to 12318444330)

$3.49

$

In Stock, only 4 left!

0

11

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

12

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

72933-81410

Echo 72933-81410

BASE, PURGE
(Superseded to 72933-81411)

$13.99

$

Usually ships in 2-4 days

0

13

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

14

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

16

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

17

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

18

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 1 left!

0

20

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

21

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

Usually ships in 2-4 days

0

22

Echo 99909-207

VALVE, CHECK

$2.49

$

In Stock, only 3 left!

0

23

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

24

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

25

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

26

Echo 99909-34739

THROTTLE VALVE ASSY

$23.99

$

Usually ships in 2-4 days

0

27

Echo 20870-82411

GASKET
(Superseded to V103001180)

$4.49

$

In Stock, only 4 left!

0

20870-82100

Echo 20870-82100

AIR FILTER CASE ASSY
(Superseded to A023000220)

$20.99

$

Usually ships in 2-4 days

0

28

Echo 20870-82120

LEVER, CHOKE
(Superseded to A242000120)

$1.99

$

In Stock, only 3 left!

0

29

Echo 20870-82111

CASE, AIR FILTER
(Superseded to A225000520)

$6.99

$

Usually ships in 2-4 days

0

30

Echo 20115-82120

PLATE, CHOKE

$

$

Currently unavailable

31

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, only 4 left!

0

32

Echo 11524-06211

NUT - 6
(Superseded to V264000110)

$1.99

$

In Stock, Qty 5

0

33

Echo 20110-82140

SHAFT, CHOKE
(Superseded to E140000090)

$4.49

$

In Stock, only 1 left!

0

34

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

35

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

36

Echo 01020-05600

SCREW - 5X60
(Superseded to 90010505060)

$2.49

$

In Stock, Qty 17

0

37

Echo 20870-82210

FILTER, AIR
(Superseded to A226000730)

$2.49

$

In Stock, Qty 20+

0

38

Echo 20870-82312

COVER, AIR FILTER
(Superseded to A232000931)

$8.99

$

Usually ships in 2-4 days

0

39

Echo V323000080

WASHER - VINYL

$0.99

$

In Stock, Qty 13

0

40

Echo 20870-33120

THUMBSCREW
(Superseded to V299000410)

$6.49

$

In Stock, only 4 left!

0

99909-316

Echo 99909-316

REPAIR KIT
(Superseded to 70870-98030)

$42.99

$

Usually ships in 2-4 days

0

99909-159

Echo 99909-159

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, only 2 left!
