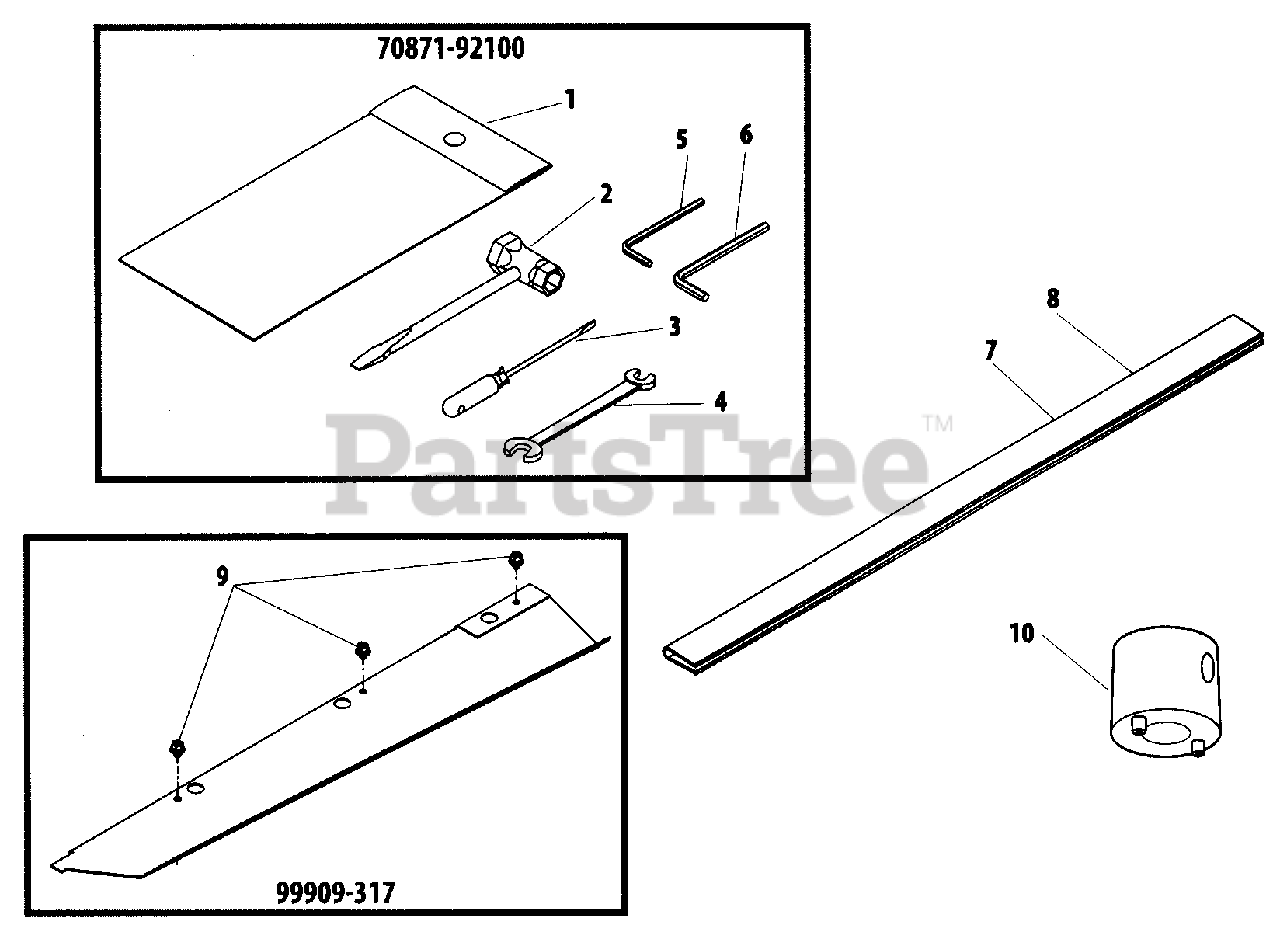

HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Accessories Parts Diagram

Hedge Trimmer, Single-Sided

Accessories Parts Diagram

  • Title

70871-92100

Echo 70871-92100

TOOL KIT
(Superseded to P021030581)

$5.49

$

Usually ships in 2-4 days

0

1

Echo 19610-02600

BAG, TOOL
(Superseded to 19639-01700)

$2.99

$

Usually ships in 2-4 days

0

2

Echo 22150-91410

T-WRENCH
(Superseded to X602000170)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 22150-91160

SCREWDRIVER
(Superseded to Discontinued)

$

$

Not available

4

Echo 22000-91120

SPANNER - 8X10mm
(Superseded to X600000020)

$0.99

$

In Stock, only 3 left!

0

5

Echo 09026-04001

HEX KEY - 4mm
(Superseded to X605000100)

$1.99

$

In Stock, Qty 7

0

6

Echo 09026-05001

HEX KEY - 6mm
(Superseded to X605000070)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 22910-13310

COVER, BLADE - 30" (76cm)
(Superseded to 19601-01602)

$5.49

$

Usually ships in 2-4 days

0

8

Echo 72914-13310

COVER, BLADE - 40" (102cm)
(Superseded to 19601-01700)

$7.99

$

Usually ships in 2-4 days

0

99909-317

Echo 99909-317

DEBRIS DEFLECTOR ASSY
(Superseded to 70870-98010)

$

$

Not available

9

Echo 20870-63120

BOLT - 5X8
(Superseded to V203001130)

Note: OPTIONAL

$0.99

$

In Stock, Qty 5

0

10

Echo 99909-20230

CLUTCH DRUM WRENCH

Note: OPTIONAL

$31.99

$

Usually ships in 2-4 days

0
