  • Title

47

MTD 753-08000

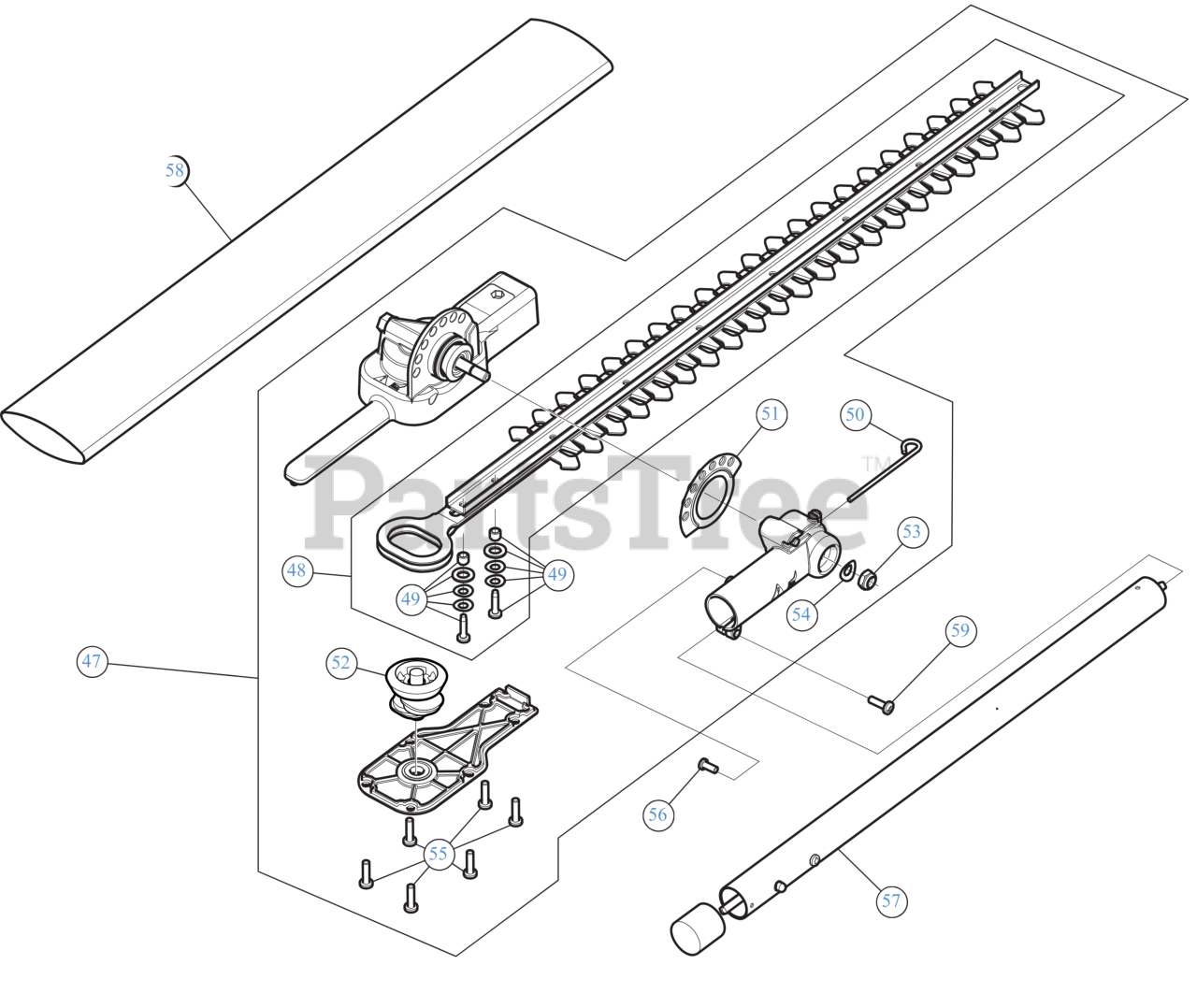

GEARBOX ASSEMBLY

Note: (Incl. 48 - 55)

$113.99

$

Usually ships in 3-6 days

0

48

MTD 753-11146

BLADE ASSEMBLY

Note: (Incl. 49)

$90.99

$

Usually ships in 3-6 days

0

49

MTD 753-11145

BLADE HARDWARE

$2.99

$

Usually ships in 3-6 days

0

50

MTD 753-08002

LOCKING LEVER PIN

$3.49

$

In Stock, Qty 20+

0

51

MTD 753-08003

SPACER DETENT SHM

$3.99

$

Usually ships in 3-6 days

0

52

MTD 753-11147

CAM

$8.99

$

In Stock, only 1 left!

0

53

MTD 753-08005

NUT 5/16-24

$3.49

$

Usually ships in 3-6 days

0

54

MTD 936-0271

SHAKE PROOF WASHER

$4.49

$

In Stock, Qty 10

0

55

MTD 3434

SCREW - 10-24X.625 PAN HEAD
(Superseded to 742-05171)

$24.99

$

Usually ships in 3-6 days

0

56

MTD 7039

SCREW 8-32X.437

$4.99

$

In Stock, only 2 left!

0

57

MTD 753-11151

BOOM ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

58

MTD 753-08006

BLADE COVER

$4.99

$

Usually ships in 3-6 days

0

59

MTD 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, only 4 left!

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
