HT 21i (UT-18016-G) - Homelite Hedge Trimmer Handles - Gearbox - Blade Parts Diagram

Hedge Trimmer

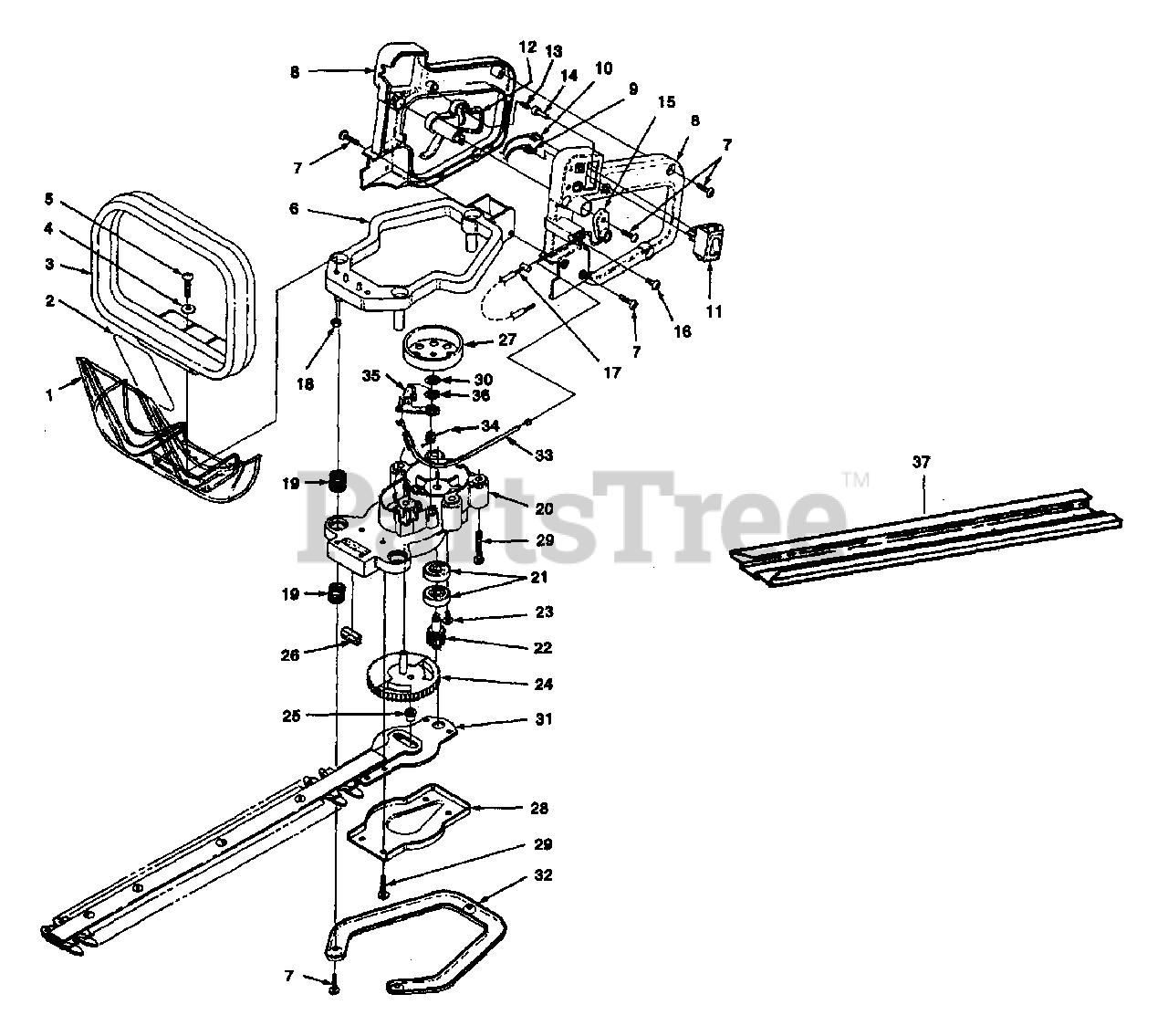

Handles - Gearbox - Blade Parts Diagram

  • Title

1

Homelite 01972

GUARD-Hand
(Superseded to UP07289)

$

$

Not available

2

Homelite 02745

DECAL-Caution

$

$

Not available

Homelite 02916A

DECAL-Warning

$

$

Not available

3

Homelite 00936A

HANDLE-Front

$

$

Not available

4

Homelite 95249

WASHER-Flat (10-24)

$

$

Not available

5

Homelite 82538

SCREW-Thread Form. (10-24 x 3/4 )

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm; Red 262 Locktite Required

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 01007

BASE-Vibration Isolator

$

$

Not available

7

Homelite 82536

SCREW-Thread Form. (#8 x 3/4")

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm

$

$

Not available

8

Homelite A09232

HANDLE Assembly

$

$

Not available

9

Homelite A00942

LEAD-Electrical

$

$

Not available

10

Homelite A00943

LEAD-Ground

$

$

Not available

11

Homelite 02497

SWITCH
(Superseded to 985703001)

$

$

Not available

12

Homelite 08918

TRIGGER

$

$

Not available

13

Homelite 08920

SPRING

$

$

Not available

14

Homelite 08919

BUTTON-Lock

$

$

Not available

15

Homelite 00959A

LEVER, Trigger

$

$

Not available

16

Homelite 82541

SCREW-Thread Form. (#10 x 1/2")

Note: Torque Specs. 15-25 In/Lbs, 1.7-2.9 Nm

$1.99

$

In Stock, only 3 left!

0

17

Homelite 01973

CABLE-Throttle

$

$

Not available

18

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

19

Homelite 01009

SPRING-Compression

$

$

Not available

20

Homelite A01526A

GEAR BOX ASSEMBLY

$

$

Not available

Homelite UP00037

GEAR BOX BASE ASSEMBLY

$

$

Not available

21

Homelite 98843

BEARING-Ball

$

$

Not available

22

Homelite A01313

PINION & SCREW ASSEMBLY
(Superseded to UP07968)

$

$

Not available

23

Homelite 82541

SCREW-Thread Form. (#10 x 1/2")

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm

$1.99

$

In Stock, only 3 left!

0

24

Homelite A01312

GEAR & PIN ASSEMBLY
(Superseded to UP07969)

$29.99

$

Usually ships in 3-7 days

0

25

Homelite 00955

BUSHING

$

$

Not available

26

Homelite 00935

BLADE-Seal

$

$

Not available

27

Homelite 00949B

DRUM-Clutch
(Superseded to 00949C)

$

$

Not available

28

Homelite 00954

COVER-Gear Box

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 82537

SCREW-Thread Form. (#10 x 7/8")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 07487

WASHER

$

$

Not available

31

Homelite 07210

BLADE ASSY. (17")
(Superseded to A00956A)

$99.99

$

Usually ships in 3-7 days

0

Homelite A01841A

BLADE ASSY. (21")

$

$

Not available

32

Homelite 01013

BRACE

$

$

Not available

33

Homelite 08924

BRAKE

$

$

Not available

34

Homelite 08923

SPRING-Torsion
(Superseded to PS00291)

$

$

Not available

35

Homelite A08928

BRAKE ARM

$

$

Currently unavailable

36

Homelite 09153

PUSH NUT

$

$

Currently unavailable

37

Homelite 0892201

GUARD-Blade (17")

$

$

Not available

Homelite 0892202

GUARD-Blade (21")

$

$

Not available
