HT 21 - Jonsered Hedge Trimmer (2003-01) ENGINE Parts Diagram

Hedge Trimmer

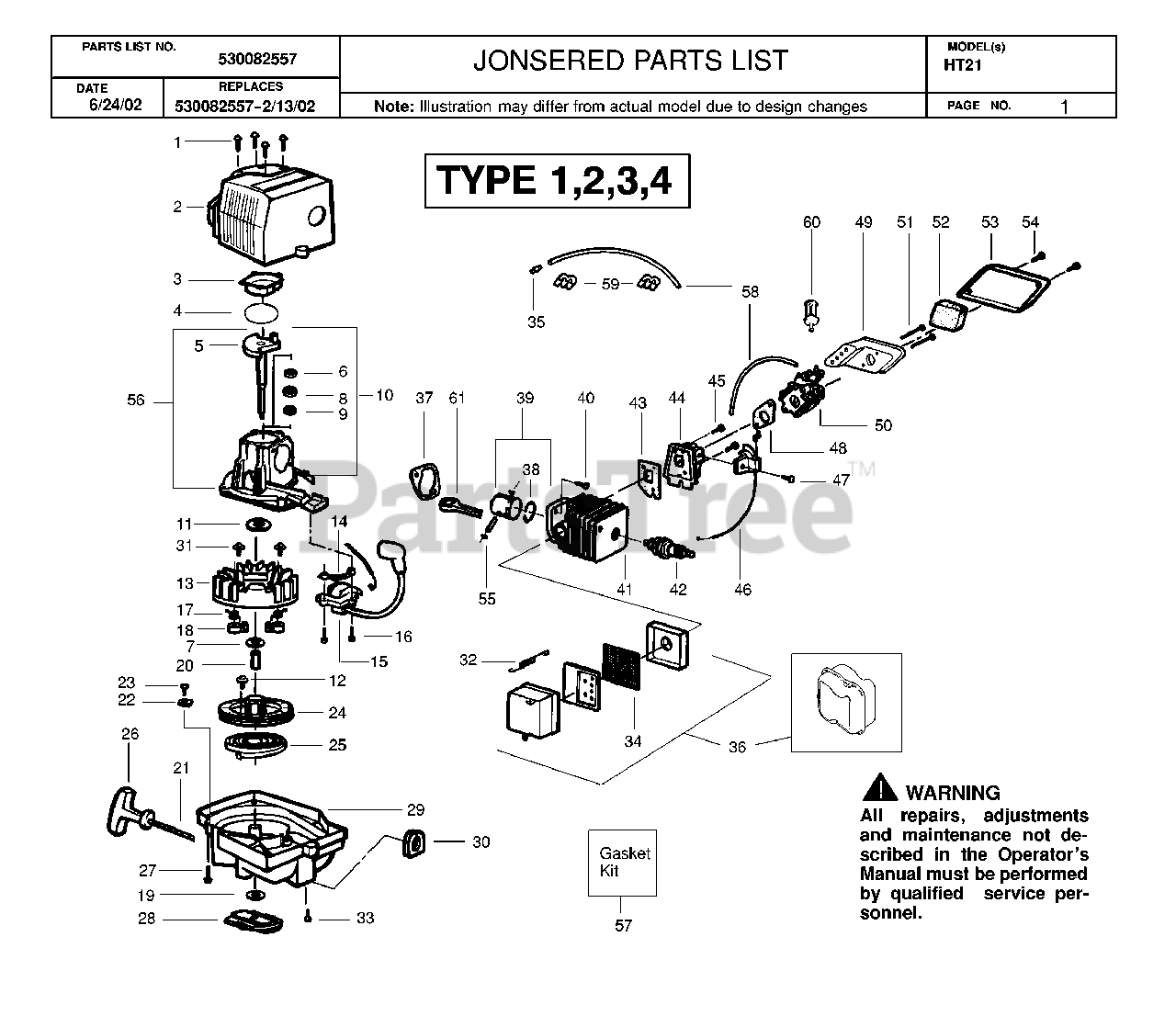

ENGINE Parts Diagram

  • Title
1

Jonsered 530016386

SCREW

Note: NEW PART NUMBER FOR THIS IPL

$8.99

$

In Stock, only 1 left!

0

$

$

Not available

3

Jonsered 530029929

COVER-CRANKCASE

$3.99

$

Usually ships in 3-10 days

0

4

Jonsered 530019181

GASKET, CRANKCASE

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 530014307

CRANKSHAFT

$18.99

$

Usually ships in 3-10 days

0

6

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

7

Jonsered 530015129

No Description Available

$

$

Not available

8

Jonsered 530071615

KIT-CRANKCASE SEAL

$7.49

$

Usually ships in 3-10 days

0

9

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

10

Jonsered 530012491

CRANKCASE
(Superseded to 530071627)

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

11

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 530039149

FLYWHEEL
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

14

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

15

Jonsered 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

16

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530016191

No Description Available

$

$

Not available

18

Jonsered 530049284

STARTER DOG
(Superseded to 530054061)

$

$

Not available

19

Jonsered 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

20

$

$

Not available

21

$7.49

$

In Stock, Qty 20+

0

22

$0.99

$

Usually ships in 3-10 days

0

23

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

24

Jonsered 530069353

STARTER PULLEY

$

$

Not available

25

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

26

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

27

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 4 left!

0

28

$

$

Not available

$

$

Not available

30

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

32

$4.99

$

In Stock, Qty 5

0

$4.99

$

In Stock, only 1 left!

0

34

Jonsered 530036180

SPARK ARRESTOR

$

$

Not available

35

Jonsered 530023877

FUEL LINE FITTING

$5.99

$

In Stock, only 4 left!

0

530069659

$

$

Not available

530071574

Jonsered 530071574

KIT-SPARK MUFFLER

$9.99

$

Usually ships in 3-10 days

0

37

Jonsered 530019223

GASKET - CYLINDER

$4.99

$

In Stock, only 4 left!

0

530029924

Jonsered 530029924

PISTON RING

$

$

Not available

530036404

Jonsered 530036404

PISTON RING

$

$

Not available

530069613

Jonsered 530069613

PISTON KIT 18CC

$

$

Not available

530069621

Jonsered 530069621

PISTON KIT

$36.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 7

0

530069614

Jonsered 530069614

CYLINDER-18CC

$2.99

$

Usually ships in 3-10 days

0

530069619

Jonsered 530069619

CYLINDER
(Superseded to 530012353)

$

$

Not available

42

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

Note: NEW PART NUMBER FOR THIS IPL

$4.99

$

In Stock, Qty 20+

0

43

$3.99

$

In Stock, only 1 left!

0

44

Jonsered 530049024

CARB ADAPTOR

$6.91

$

Usually ships in 3-10 days

0

45

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

46

Jonsered 530014384

THROTTLE WIRE

$

$

Not available

47

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

48

Jonsered 530019194

GASKET - CARBURETOR

$6.49

$

In Stock, only 4 left!

0

49

$3.99

$

Usually ships in 3-10 days

0

530035306

Jonsered 530035306

CARBURETOR
(Superseded to 530035305)

$

$

Not available

530069682

Jonsered 530069682

KIT-CARB ASSY WT-379
(Superseded to 530071633)

$53.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

52

Jonsered 530029934

AIR FILTER ELEMENT

$

$

Not available

53

Jonsered 530036193

No Description Available

$

$

Not available

54

Jonsered 530015635

SCREW-10-14X5/8 PHIL.FI

$5.99

$

In Stock, only 4 left!

0

55

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

56

Jonsered 530071573

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

57

Jonsered 530069622

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

58

Jonsered 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 9

0

59

$6.49

$

In Stock, Qty 5

0

60

Jonsered 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

61

Jonsered 530069615

CONNECTING ROD ASSEMBLY

$24.99

$

Usually ships in 3-10 days

0

530086908

Jonsered 530086908

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

530086909

Jonsered 530086909

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available
