HT 21 - Jonsered Hedge Trimmer (2002-08) CARBURETOR DETAILS Parts Diagram

Hedge Trimmer

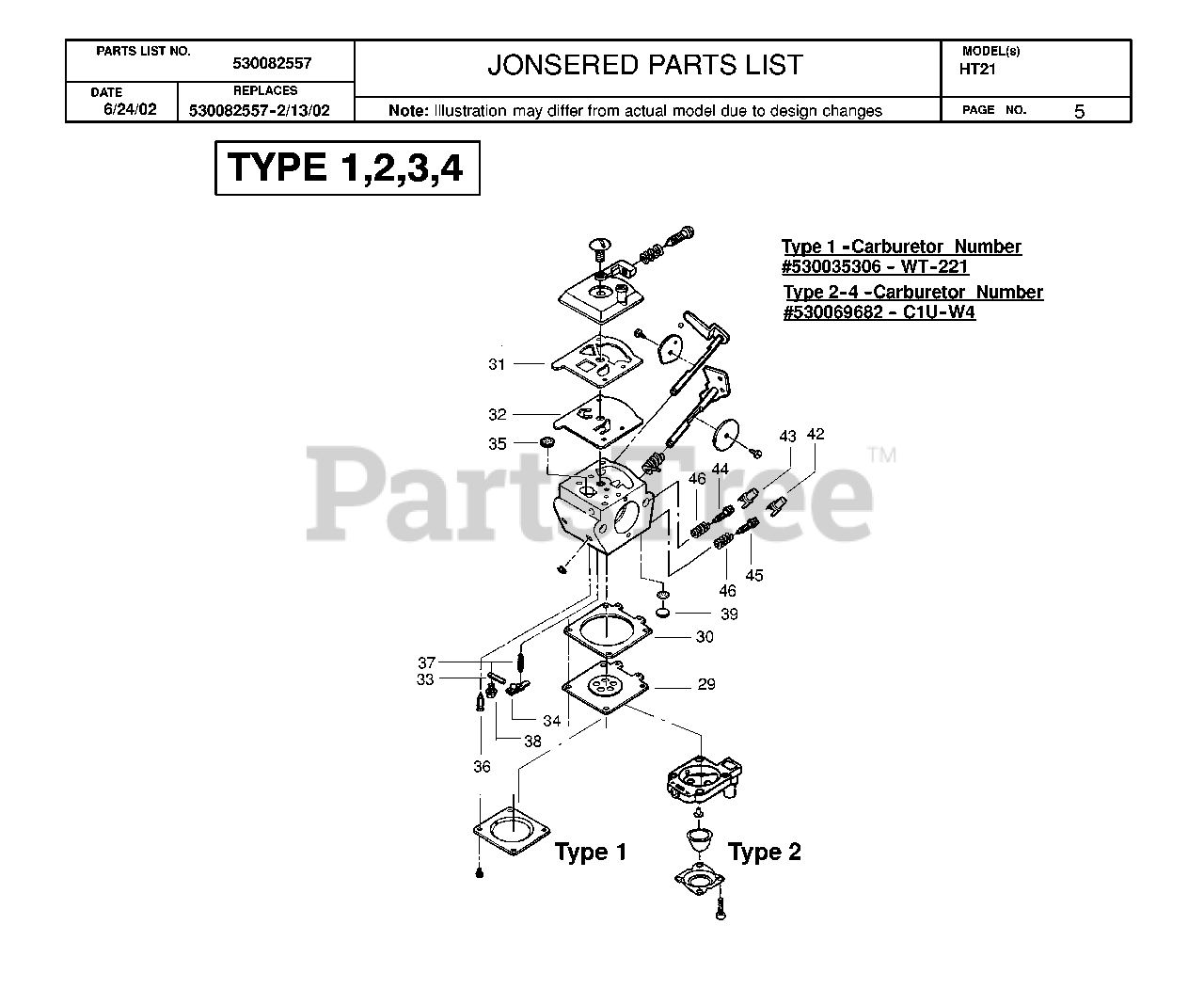

CARBURETOR DETAILS Parts Diagram

  • Title
29

Jonsered 530035014

DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

30

$4.99

$

Usually ships in 3-10 days

0

31

Jonsered 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

32

Jonsered 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

33

Jonsered 530035028

PIN
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

34

Jonsered 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

35

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$

$

Not available

37

Jonsered 530035139

No Description Available
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

38

Jonsered 530035236

SCREW-METERING LEVER PIN

$2.49

$

Usually ships in 3-10 days

0

39

Jonsered 530035162

WELCH PLUG

$

$

Not available

530069844

Jonsered 530069844

GASKET/DIAPHRAGM KIT

$20.99

$

In Stock, only 3 left!

0

530069866

Jonsered 530069866

No Description Available

$17.99

$

Usually ships in 3-10 days

0

530035312

Jonsered 530035312

CARBURETOR KIT

$30.99

$

Usually ships in 3-10 days

0

530069656

Jonsered 530069656

REPAIR KIT

$18.99

$

Usually ships in 3-10 days

0

530069969

Jonsered 530069969

No Description Available

$26.99

$

In Stock, only 3 left!

0

42

Jonsered 530038479

LIMITER CAP-HIGH

Note: NEW PART NUMBER FOR THIS IPL

$3.99

$

Usually ships in 3-10 days

0

43

Jonsered 530038478

LIMITER CAP-LOW

Note: NEW PART NUMBER FOR THIS IPL

$3.99

$

In Stock, Qty 19

0

530035407

Jonsered 530035407

No Description Available

$

$

Not available

530035443

Jonsered 530035443

No Description Available

$

$

Not available

530035408

Jonsered 530035408

No Description Available

$

$

Not available

530035444

Jonsered 530035444

No Description Available

$

$

Not available

530035293

Jonsered 530035293

NEEDLE SPRING

$4.99

$

Usually ships in 3-10 days

0

530035445

Jonsered 530035445

No Description Available

$

$

Not available
