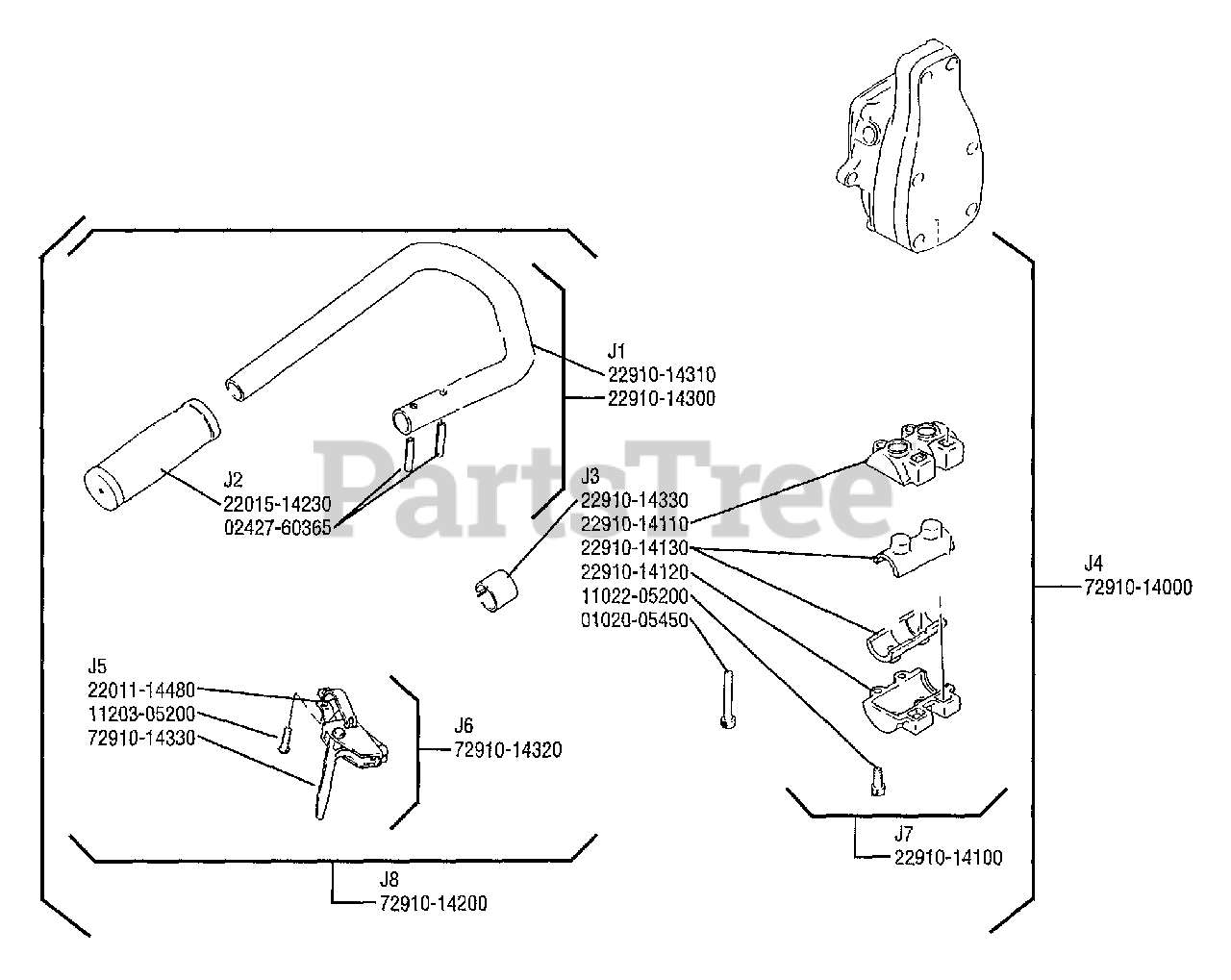

HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Handle Assembly Parts Diagram

Hedge Trimmer, Single-Sided

Handle Assembly Parts Diagram

  • Title
J1-22910-14310

Echo 22910-14310

HANDLE
(Superseded to Discontinued)

$

$

Not available

J1-22910-14300

Echo 22910-14300

HANDLE COMPLETE
(Superseded to Discontinued)

$

$

Not available

J2-22015-14230

Echo 22015-14230

GRIP, LEFT
(Superseded to C403000410)

$11.99

$

In Stock, only 1 left!

0

J2-02427-60365

Echo 02427-60365

PIN
(Superseded to Discontinued)

$

$

Not available

J5-22011-14480

Echo 22011-14480

BAND ASSY

$2.49

$

Usually ships in 2-4 days

0

J5-11203-05200

Echo 11203-05200

SCREW
(Superseded to 9157805020)

$0.99

$

Usually ships in 2-4 days

0

J5-72910-14330

Echo 72910-14330

BODY ASSY

$8.49

$

Usually ships in 2-4 days

0

J3-22910-14330

Echo 22910-14330

COLLAR, THROTTLE LEVER

$0.99

$

Usually ships in 2-4 days

0

J3-22910-14110

Echo 22910-14110

BRACKET A
(Superseded to Discontinued)

$

$

Not available

J3-22910-14130

Echo 22910-14130

CUSHION
(Superseded to Discontinued)

$

$

Not available

J3-22910-14120

Echo 22910-14120

BRACKET B
(Superseded to Discontinued)

$

$

Not available

J3-11022-05200

Echo 11022-05200

BOLT
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

J3-01020-05450

Echo 01020-05450

BOLT
(Superseded to 90010505045)

$1.49

$

Usually ships in 2-4 days

0

J4-72910-14000

Echo 72910-14000

HANDLE ASSY

$74.99

$

Usually ships in 2-4 days

0

J6-72910-14320

Echo 72910-14320

THROTTLE LEVER ASSY
(Superseded to Discontinued)

$

$

Not available

J7-22910-14100

Echo 22910-14100

BRACKET ASSY
(Superseded to Discontinued)

$

$

Not available

J8-72910-14200

Echo 72910-14200

HANDLE ASSY, USE COMPONENTS
(Superseded to Discontinued)

$

$

Not available
