HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Flywheel Assembly Parts Diagram

Hedge Trimmer, Single-Sided

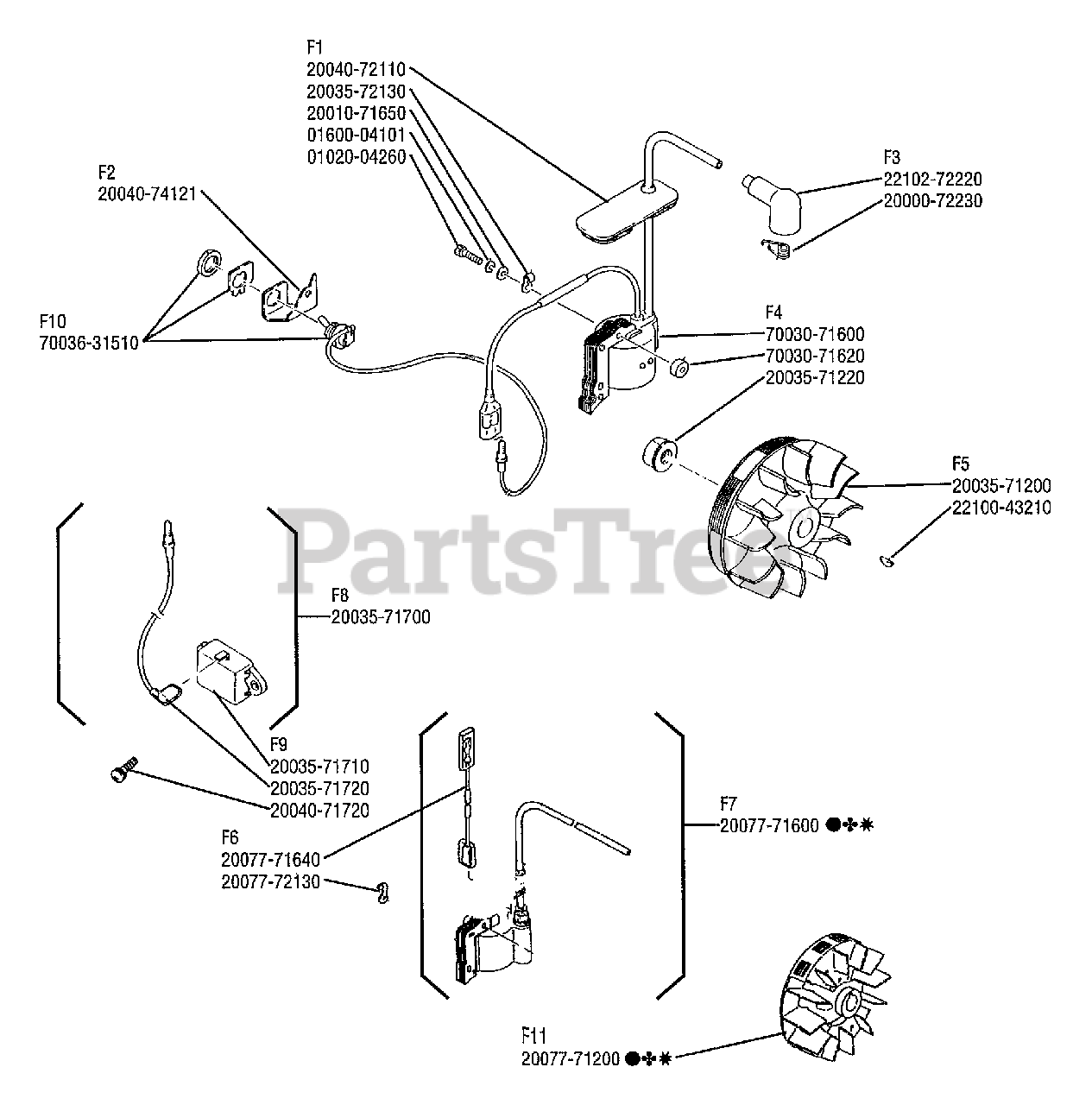

Flywheel Assembly Parts Diagram

  • Title
F1-20040-72110

Echo 20040-72110

GROMMET
(Superseded to V135000060)

$2.49

$

Usually ships in 2-4 days

0

F1-20035-72130

Echo 20035-72130

CLAMP
(Superseded to Discontinued)

$

$

Not available

F1-20010-71650

Echo 20010-71650

WASHER
(Superseded to V302000010)

$0.99

$

In Stock, Qty 6

0

F1-01600-04101

Echo 01600-04101

WASHER, SPRING
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

F1-01020-04260

Echo 01020-04260

BOLT
(Superseded to Discontinued)

$

$

Not available

F2-20040-74121

Echo 20040-74121

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

F3-22102-72220

Echo 22102-72220

CAP, PLUG
(Superseded to A427000100)

$2.49

$

In Stock, Qty 19

0

F3-20000-72230

Echo 20000-72230

SPRING, SPARK PLUG
(Superseded to A426000050)

$1.49

$

In Stock, Qty 12

0

F4-70030-71600

Echo 70030-71600

COIL ASSY
(Superseded to Discontinued)

$

$

Not available

F4-70030-71620

Echo 70030-71620

INSULATOR, UNIT
(Superseded to V322000040)

$0.99

$

In Stock, only 3 left!

0

F4-20035-71220

Echo 20035-71220

NUT
(Superseded to V265000140)

$0.99

$

In Stock, Qty 8

0

F5-20035-71200

Echo 20035-71200

ROTOR
(Superseded to 20077-71200)

$57.99

$

Usually ships in 2-4 days

0

F5-22100-43210

Echo 22100-43210

KEY
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

F6-20077-71640

$2.99

$

Usually ships in 2-4 days

0

F6-20077-72130

Echo 20077-72130

CLAMP
(Superseded to V490000550)

$0.99

$

Usually ships in 2-4 days

0

F7-20077-71600

Echo 20077-71600

COIL W/WIRE
(Superseded to A411000690)

Note: PR 86 & PR 108

$

$

Not available

F8-20035-71700

Echo 20035-71700

UNIT ASSY
(Superseded to Discontinued)

$

$

Not available

F9-20035-71710

Echo 20035-71710

UNIT
(Superseded to 20035-71700)

$

$

Not available

F9-20035-71720

Echo 20035-71720

CORD
(Superseded to Discontinued)

$

$

Not available

F9-20040-71720

Echo 20040-71720

SCREW PM SW L, USE 11238-04120
(Superseded to 11238-04120)

$0.99

$

In Stock, Qty 16

0

F11-20077-71200

Echo 20077-71200

FLYWHEEL

Note: PR 86 & PR 108

$57.99

$

Usually ships in 2-4 days

0

F10-70036-31510

Echo 70036-31510

SWITCH
(Superseded to Discontinued)

$

$

Not available
