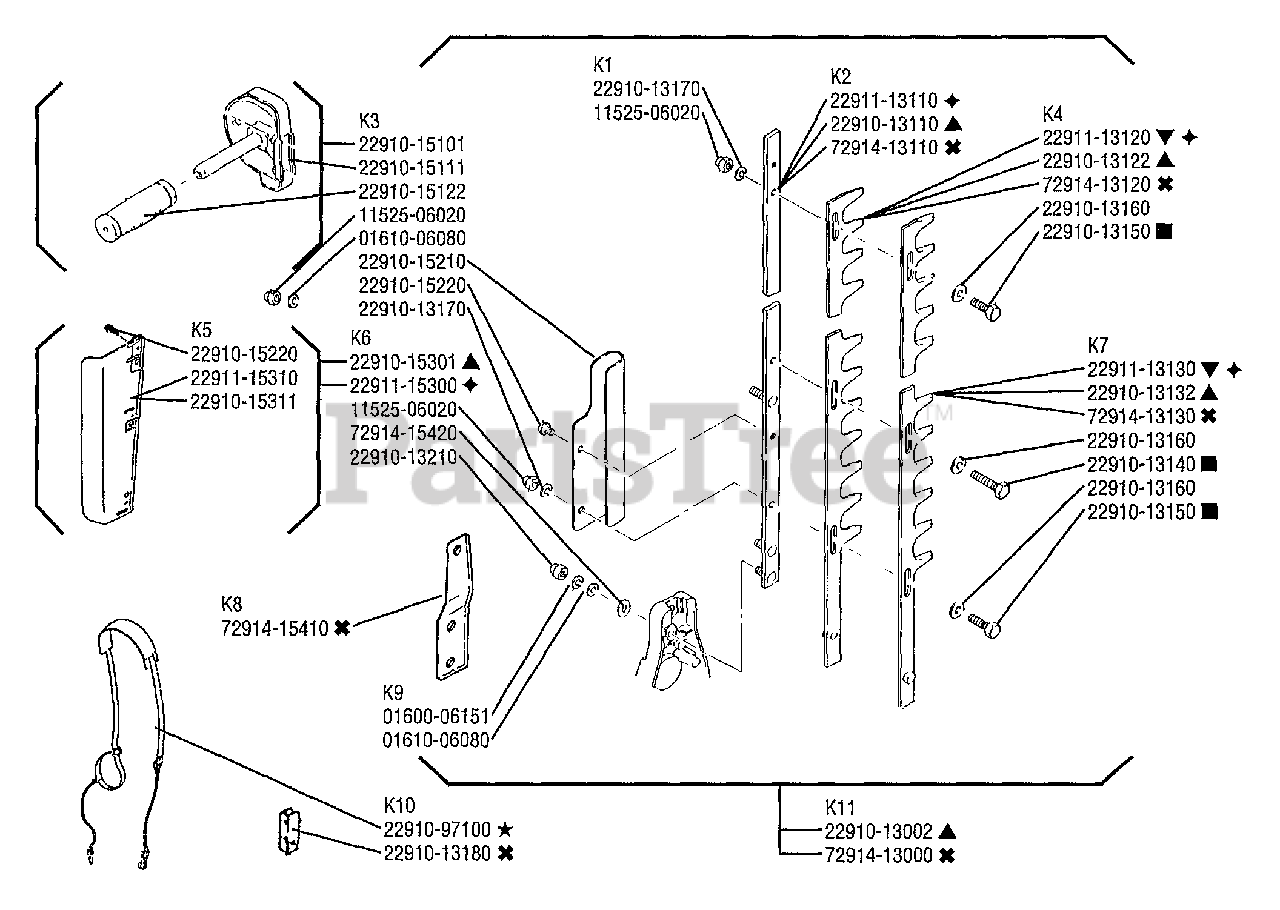

HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Cutter Assembly Parts Diagram

Hedge Trimmer, Single-Sided

Cutter Assembly Parts Diagram

  • Title

K1-22910-13170

Echo 22910-13170

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

K1-11525-06020

Echo 11525-06020

U-NUT
(Superseded to Discontinued)

$

$

Not available

K2-22911-13110

Echo 22911-13110

20" GUIDE BAR, HEDGE TRIMMER

Note: 20" Blade

$40.99

$

Usually ships in 2-4 days

0

K2-22910-13110

Echo 22910-13110

30" GUIDE BAR, HEDGE TRIMMER

Note: 30" Blade

$43.99

$

Usually ships in 2-4 days

0

K2-72914-13110

Echo 72914-13110

40" GUIDE BAR, HEDGE TRIMMER

Note: 40" Blade

$85.99

$

Usually ships in 2-4 days

0

K3-22910-15101

Echo 22910-15101

HANDLE, FRONT COMPLETE
(Superseded to Discontinued)

$

$

Not available

K3-22910-15111

Echo 22910-15111

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

K3-22910-15122

Echo 22910-15122

GRIP
(Superseded to Discontinued)

$

$

Not available

K3-11525-06020

Echo 11525-06020

U-NUT
(Superseded to Discontinued)

$

$

Not available

K3-01610-06080

Echo 01610-06080

WASHER, REPLACES 01600-06080
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

K3-22910-15210

Echo 22910-15210

PROTECTOR
(Superseded to Discontinued)

$

$

Not available

K3-22910-15220

Echo 22910-15220

SCREW

$0.99

$

Usually ships in 2-4 days

0

K3-22910-13170

Echo 22910-13170

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

K4-22911-13120

Echo 22911-13120

20" BLADE, UPPER
(Superseded to Discontinued)

Note: 20" Blade, SB 28

$

$

Not available

K4-22910-13122

Echo 22910-13122

30" BLADE, UPPER
(Superseded to Discontinued)

Note: 30" Blade

$

$

Not available

K4-72914-13120

Echo 72914-13120

40" BLADE, UPPER

Note: 40" Blade

$112.99

$

Usually ships in 2-4 days

0

K4-22910-13160

Echo 22910-13160

WASHER, CUTTER
(Superseded to Discontinued)

$

$

Not available

K4-22910-13150

Echo 22910-13150

BOLT, STEP S
(Superseded to Discontinued)

Note: SB 25

$

$

Not available

K5-22910-15220

Echo 22910-15220

SCREW

$0.99

$

Usually ships in 2-4 days

0

K5-22911-15310

Echo 22911-15310

PLATE
(Superseded to Discontinued)

$

$

Not available

K5-22910-15311

Echo 22910-15311

$

$

Currently unavailable

K6-22910-15301

Echo 22910-15301

Note: 30" Blade

$

$

Currently unavailable

K6-22911-15300

Echo 22911-15300

Note: 20" Blade

$

$

Currently unavailable

K6-11525-06020

Echo 11525-06020

U-NUT
(Superseded to Discontinued)

$

$

Not available

K6-72914-15420

Echo 72914-15420

WASHER 40"
(Superseded to Discontinued)

$

$

Not available

K6-22910-13210

Echo 22910-13210

CAP, NUT

$0.99

$

Usually ships in 2-4 days

0

K7-22911-13130

Echo 22911-13130

20" BLADE, LOWER

Note: 20" Blade, SB 28

$68.99

$

Usually ships in 2-4 days

0

K7-22910-13132

Echo 22910-13132

30" BLADE, LOWER

Note: 30" Blade

$70.99

$

Usually ships in 2-4 days

0

K7-72914-13130

Echo 72914-13130

40" BLADE, LOWER
(Superseded to 72914-13000)

Note: 40" Blade

$

$

Not available

K7-22910-13160

Echo 22910-13160

WASHER, CUTTER
(Superseded to Discontinued)

$

$

Not available

K7-22910-13140

Echo 22910-13140

BOLT, STEP L
(Superseded to Discontinued)

Note: SB 25

$

$

Not available

K7-22910-13160

Echo 22910-13160

WASHER, CUTTER
(Superseded to Discontinued)

$

$

Not available

K7-22910-13150

Echo 22910-13150

BOLT, STEP S
(Superseded to Discontinued)

Note: SB 25

$

$

Not available

K8-72914-15410

Echo 72914-15410

HOLDER 40"

Note: 40" Blade

$3.49

$

Usually ships in 2-4 days

0

K9-01600-06151

Echo 01600-06151

WASHER, SPRING
(Superseded to 90060500006)

$0.99

$

In Stock, only 2 left!

0

K9-01610-06080

Echo 01610-06080

WASHER, REPLACES 01600-06080
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

K10-22910-97100

Echo 22910-97100

STRAP ASSY, BLUE ONLY
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

K10-22910-13180

Echo 22910-13180

GUIDE
(Superseded to Discontinued)

Note: 40" Blade

$

$

Not available

K11-22910-13002

Echo 22910-13002

30" BLADE ASSY
(Superseded to 72910-13002)

Note: 30" Blade

$

$

Not available

K11-72914-13000

Echo 72914-13000

40" BLADE ASSY
(Superseded to Discontinued)

Note: 40" Blade

$

$

Not available
