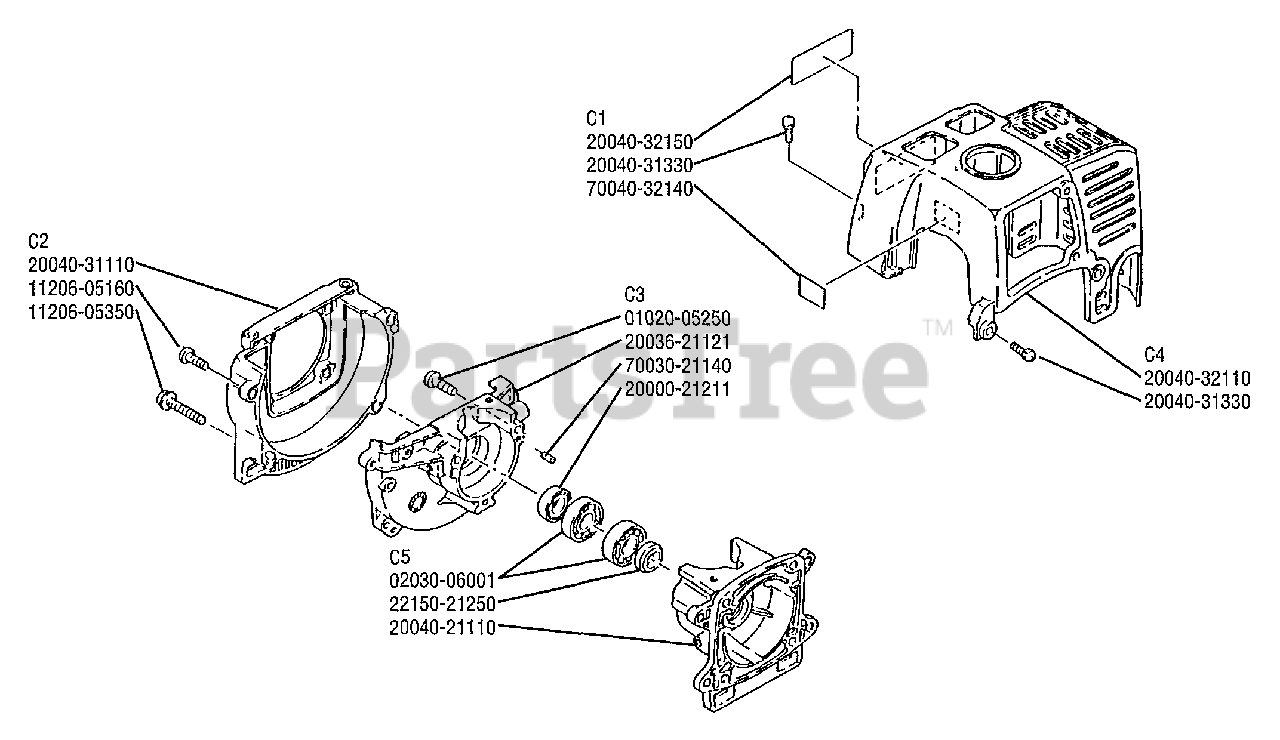

HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Crankcase Parts Diagram

Hedge Trimmer, Single-Sided

Crankcase Parts Diagram

  • Title

C2-20040-31110

Echo 20040-31110

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

C2-11206-05160

Echo 11206-05160

SCREW
(Superseded to 9157405016)

$0.99

$

In Stock, Qty 10

0

C2-11206-05350

Echo 11206-05350

SCREW
(Superseded to 9157405035)

$0.99

$

In Stock, Qty 9

0

C1-20040-32150

Echo 20040-32150

LABEL, NAME PLATE

$1.49

$

Usually ships in 2-4 days

0

C1-20040-31330

Echo 20040-31330

SCREW
(Superseded to V252000150)

$0.99

$

Usually ships in 2-4 days

0

C1-70040-32140

Echo 70040-32140

$

$

Currently unavailable

C3-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

C3-20036-21121

Echo 20036-21121

CRANKCASE M, USE 20036-21124
(Superseded to 20036-21122)

$54.99

$

Usually ships in 2-4 days

0

C3-70030-21140

Echo 70030-21140

PIN, DOWEL
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

C3-20000-21211

Echo 20000-21211

SEAL, OIL
(Superseded to V505000080)

$2.99

$

In Stock, Qty 13

0

C4-20040-32110

Echo 20040-32110

COVER, CYLINDER

$20.99

$

Usually ships in 2-4 days

0

C4-20040-31330

Echo 20040-31330

SCREW
(Superseded to V252000150)

$0.99

$

Usually ships in 2-4 days

0

C5-02030-06001

Echo 02030-06001

BEARING, BALL
(Superseded to 90080036001)

$9.49

$

In Stock, only 1 left!

0

C5-22150-21250

Echo 22150-21250

OIL SEAL
(Superseded to V505000140)

$3.49

$

In Stock, only 3 left!

0

C5-20040-21110

Echo 20040-21110

PTO, CRANKCASE
(Superseded to Discontinued)

$

$

Not available
