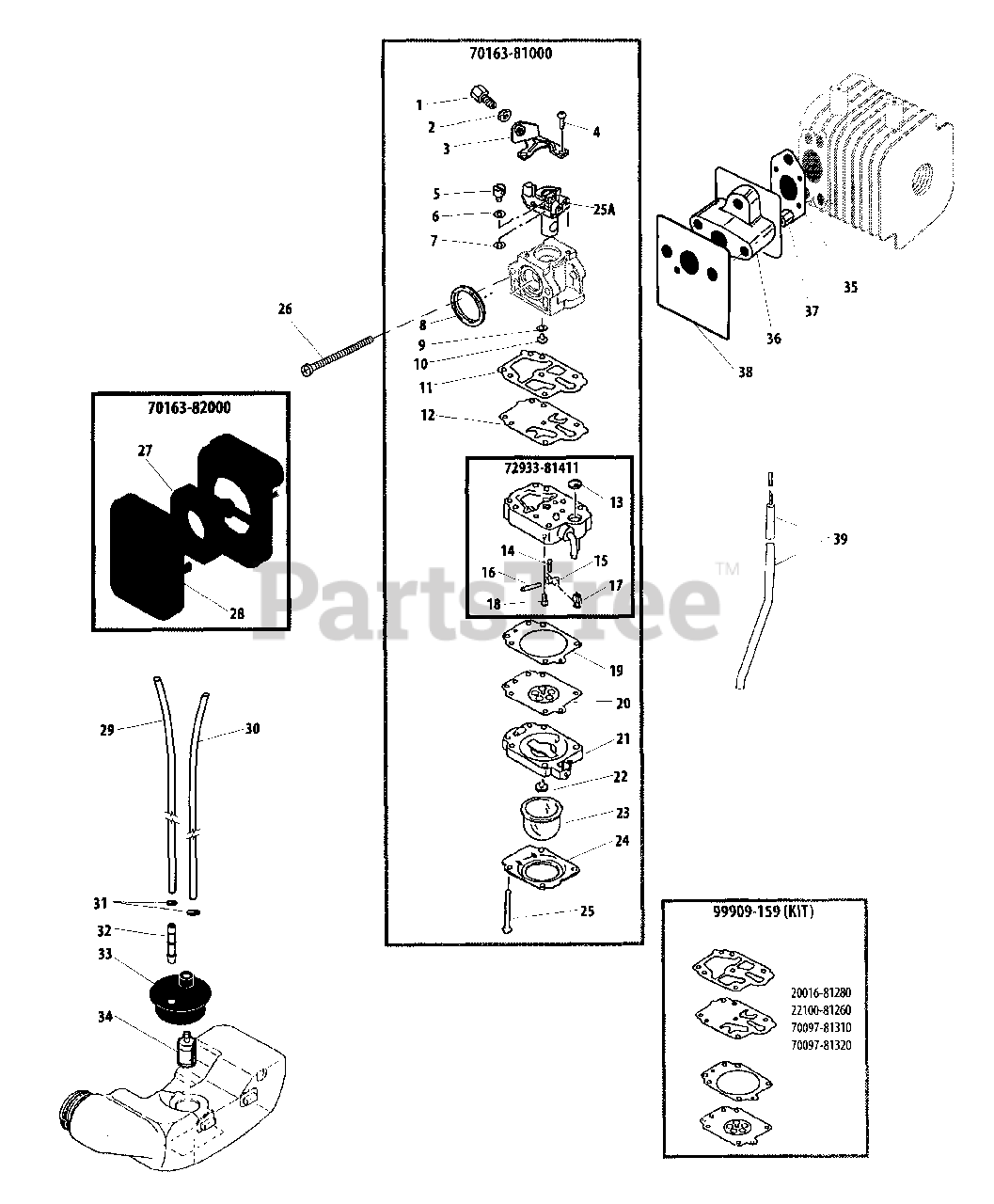

HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Carburetor -- EPA & CARB Changes Parts Diagram

Hedge Trimmer, Single-Sided

Carburetor -- EPA & CARB Changes Parts Diagram

  • Title
70163-81000

Echo 70163-81000

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

Echo 20089-81110

NUT, CABLE ADJUST

$

$

Not available

2

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

3

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

4

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

5

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

7

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

8

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

9

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

10

Echo 70163-81231

JET, MAIN - 37
(Superseded to P003003450)

$7.49

$

Usually ships in 2-4 days

0

11

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

12

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

72933-81411

Echo 72933-81411

BASE, PURGE
(Superseded to P003003690)

$13.99

$

Usually ships in 2-4 days

0

13

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

14

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

16

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

17

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

18

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

20

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 5

0

21

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

22

Echo 99909-207

VALVE, CHECK

$2.49

$

In Stock, only 2 left!

0

23

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

24

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

25

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

25A

Echo 99909-34685

THROTTLE VALVE ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 11206-05700

SCREW - 5X70

$

$

Not available

70163-82000

Echo 70163-82000

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 70163-81760

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

28

Echo 20079-82150

COVER, AIR FILTER
(Superseded to 13031312110)

$12.99

$

Usually ships in 2-4 days

0

29

Echo 70163-83310

PIPE - RETURN

$0.99

$

In Stock, Qty 8

0

30

Echo 70163-85311

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

31

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

32

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

33

Echo 70163-85350

GROMMET
(Superseded to Discontinued)

$

$

Not available

34

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

35

$0.99

$

Usually ships in 2-4 days

0

36

Echo 70163-12210

INSULATOR
(Superseded to Discontinued)

$

$

Not available

37

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

38

Echo 70163-83410

GASKET
(Superseded to Discontinued)

$

$

Not available

39

Echo 70163-83110

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

99909-159

Echo 99909-159

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, Qty 6

0
