HT 20 - Shindaiwa Hedge Trimmer, Single-Sided Carburetor Parts Diagram

Hedge Trimmer, Single-Sided

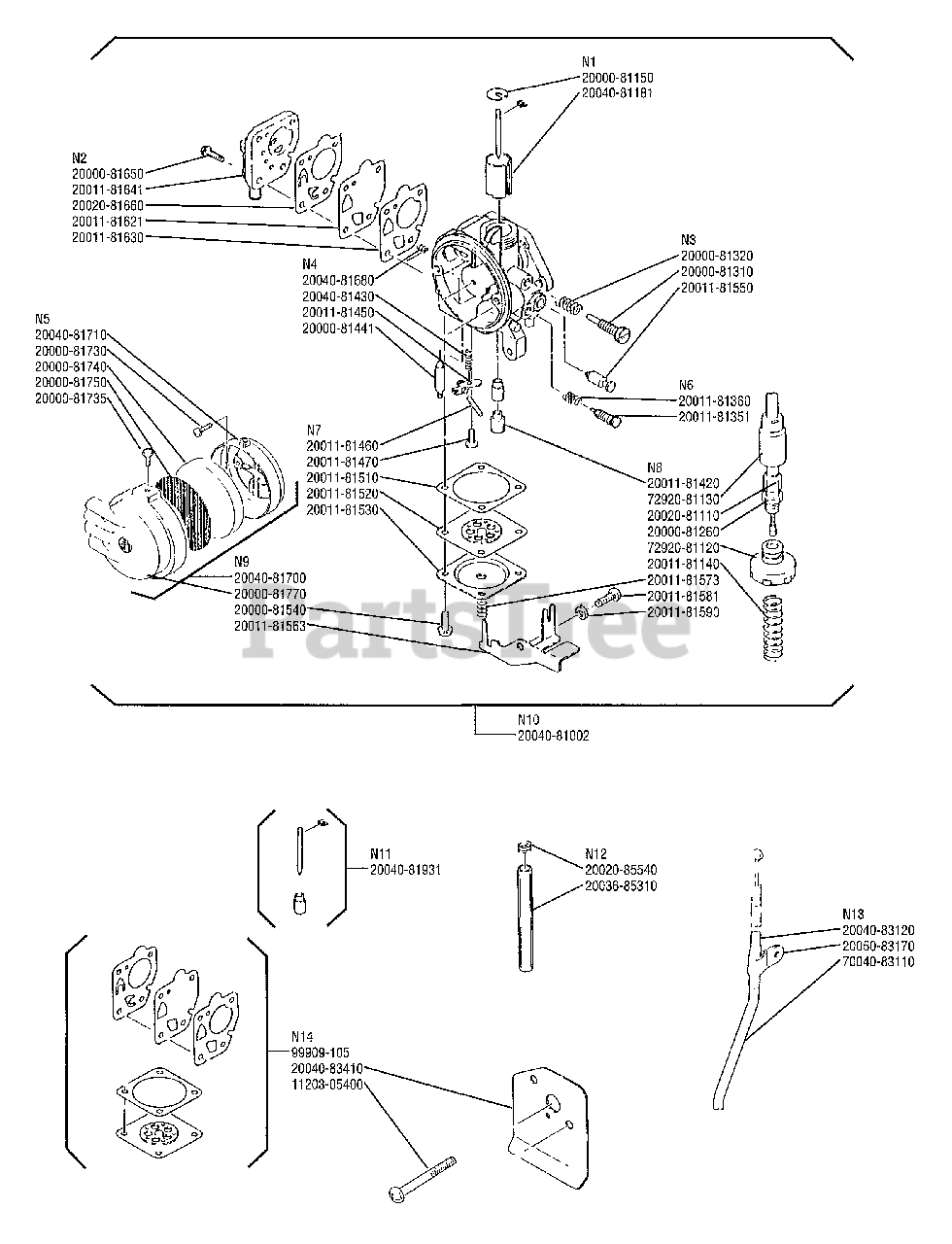

Carburetor Parts Diagram

  • Title
N1-20000-81150

Echo 20000-81150

SPRING RECEIVER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

N1-20040-81181

Echo 20040-81181

THROTTLE VALVE
(Superseded to Discontinued)

$

$

Not available

N3-20000-81320

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

N3-20000-81310

Echo 20000-81310

SCREW, SLOW STOP
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

N3-20011-81550

Echo 20011-81550

VALVE, OVERFLOW
(Superseded to P004001360)

$10.99

$

In Stock, only 4 left!

0

N4-20040-81680

Echo 20040-81680

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

N4-20040-81430

Echo 20040-81430

SPRING
(Superseded to 12433149930)

$1.99

$

In Stock, only 1 left!

0

N4-20011-81450

Echo 20011-81450

LEVER
(Superseded to 20011-81451)

$4.99

$

Usually ships in 2-4 days

0

N4-20000-81441

Echo 20000-81441

NEEDLE, VALVE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

N6-20011-81360

Echo 20011-81360

SPRING
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

N6-20011-81351

Echo 20011-81351

SCREW, MAIN ADJUST
(Superseded to P004001300)

$5.49

$

In Stock, only 4 left!

0

N7-20011-81460

Echo 20011-81460

PIN
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

N7-20011-81470

Echo 20011-81470

SCREW
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

N7-20011-81510

Echo 20011-81510

GASKET
(Superseded to 20011-81910)

$2.99

$

In Stock, Qty 13

0

N7-20011-81520

Echo 20011-81520

DIAPHRAGM
(Superseded to 12434122830)

$14.99

$

In Stock, only 2 left!

0

N7-20011-81530

Echo 20011-81530

COVER
(Superseded to 12432421330)

$4.49

$

In Stock, only 1 left!

0

N8-20011-81420

Echo 20011-81420

HOLDER
(Superseded to P004001320)

$3.99

$

Usually ships in 2-4 days

0

N8-72920-81130

Echo 72920-81130

ADJUSTER CAP
(Superseded to 12417411120)

$1.49

$

In Stock, Qty 20+

0

N8-20020-81110

Echo 20020-81110

CABLE ADJUSTER
(Superseded to 12415813411)

$8.49

$

In Stock, only 1 left!

0

N8-20000-81260

Echo 20000-81260

NUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

N8-72920-81120

Echo 72920-81120

BODY CAP
(Superseded to 12411346630)

$6.49

$

In Stock, only 1 left!

0

N8-20011-81140

Echo 20011-81140

SPRING, THROTTLE
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

N8-20011-81573

Echo 20011-81573

SPRING
(Superseded to P004001400)

$0.99

$

In Stock, only 3 left!

0

N8-20011-81581

Echo 20011-81581

SCREW
(Superseded to P004001410)

$0.99

$

In Stock, Qty 5

0

N8-20011-81590

Echo 20011-81590

COLLAR
(Superseded to P004001420)

$0.99

$

In Stock, only 1 left!

0

N9-20040-81700

Echo 20040-81700

AIR FILTER ASSY
(Superseded to Discontinued)

$

$

Not available

N9-20000-81770

Echo 20000-81770

COVER, AIR CLEANER
(Superseded to A232001340)

$5.49

$

In Stock, Qty 8

0

N9-20000-81540

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

N9-20011-81563

Echo 20011-81563

TICKLER LEVER
(Superseded to P004001370)

$4.49

$

In Stock, only 1 left!

0

N5-20040-81710

Echo 20040-81710

CLEANER BODY
(Superseded to Discontinued)

$

$

Not available

N5-20000-81730

Echo 20000-81730

SCREW
(Superseded to V252000220)

$0.99

$

In Stock, only 1 left!

0

N5-20000-81740

Echo 20000-81740

FILTER
(Superseded to A226000670)

$3.49

$

In Stock, Qty 20+

0

N5-20000-81750

Echo 20000-81750

NET A
(Superseded to A230000030)

$2.99

$

In Stock, only 2 left!

0

N5-20000-81735

Echo 20000-81735

SCREW
(Superseded to V252000230)

$0.99

$

In Stock, Qty 7

0

N2-20000-81650

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

N2-20011-81641

Echo 20011-81641

PUMP BODY W/ CHECK BALL
(Superseded to P004001440)

$12.99

$

In Stock, only 1 left!

0

N2-20020-81660

Echo 20020-81660

PUMP VALVE
(Superseded to P004001880)

$7.99

$

In Stock, Qty 8

0

N2-20011-81621

Echo 20011-81621

DIAPHRAGM
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

N2-20011-81630

Echo 20011-81630

GASKET
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

N10-20040-81002

Echo 20040-81002

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

N11-20040-81931

Echo 20040-81931

JET NEEDLE KIT
(Superseded to Discontinued)

$

$

Not available

N12-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

N12-20036-85310

Echo 20036-85310

FUEL TUBE
(Superseded to Discontinued)

$

$

Not available

N13-20040-83120

Echo 20040-83120

TUBE
(Superseded to Discontinued)

$

$

Not available

N13-20050-83170

Echo 20050-83170

CABLE CLAMP
(Superseded to C487000300)

$0.99

$

Usually ships in 2-4 days

0

N13-70040-83110

Echo 70040-83110

THROTTLE CABLE
(Superseded to Discontinued)

$

$

Not available

N14-99909-105

Echo 99909-105

GASKET/DIAPHRAGM KIT TK
(Superseded to 70036-98020)

$31.99

$

In Stock, only 1 left!

0

N14-20040-83410

Echo 20040-83410

GASKET, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

N14-11203-05400

Echo 11203-05400

SCREW
(Superseded to Discontinued)

$

$

Not available
