HT 1950 - Paramount Hedge Trimmer, Electric HEDGE TRIMMER Parts Diagram

Hedge Trimmer, Electric

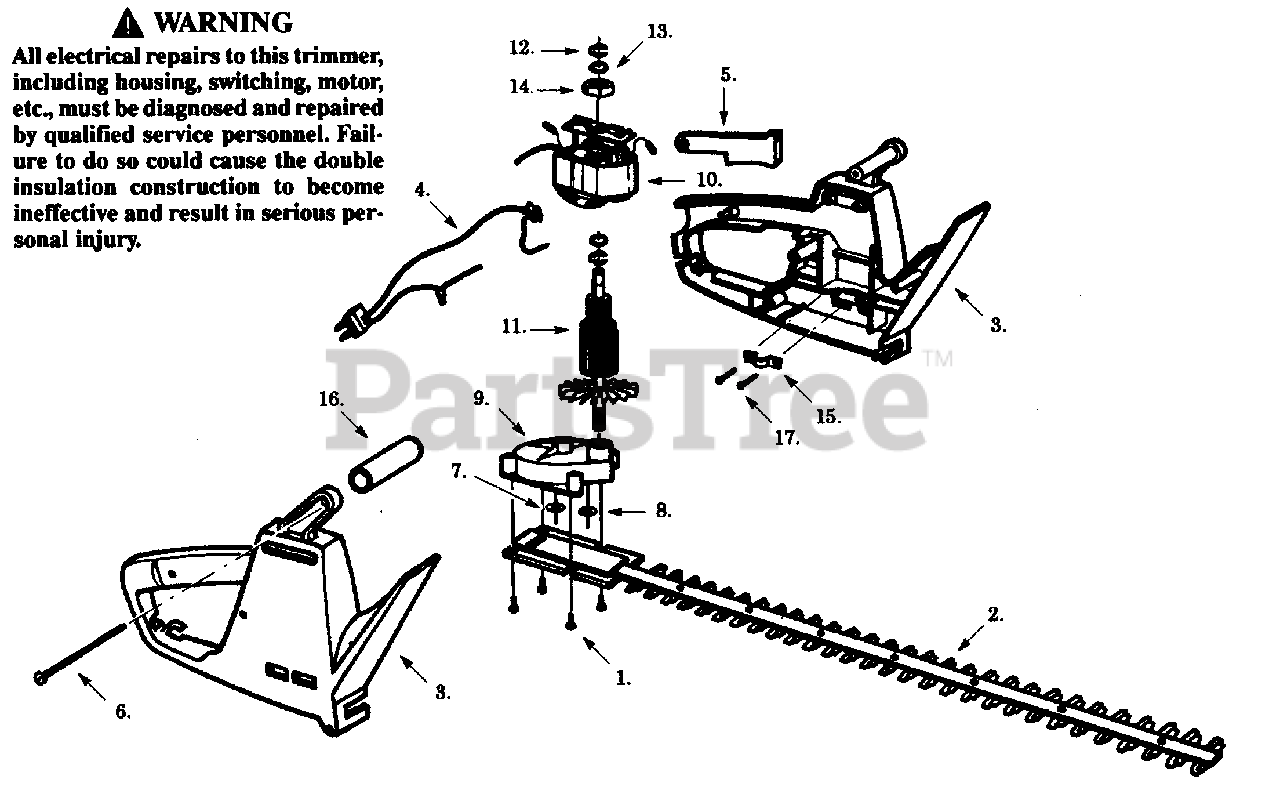

HEDGE TRIMMER Parts Diagram

  • Title

1

Poulan 534101640

Screw

$1.49

$

Usually ships in 3-10 days

0

2

Poulan 530036312

Blade Ass'y. - HT1450

$53.99

$

Usually ships in 3-10 days

0

Poulan 530036313

Blade Ass'y. - HT1750

$

$

Not available

Poulan 530036316

Blade Ass'y. - HT1950

$

$

Not available

Poulan 530036317

Blade Ass'y. - HT2250

$55.99

$

Usually ships in 3-10 days

0

3

Poulan 534014568

Housing Set

$

$

Not available

4

Poulan 534101360

Switch/Plug Ass'y.

$

$

Not available

5

Poulan 534101380

Trigger Switch

$

$

Not available

6

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530015965

Washer

$1.49

$

Usually ships in 3-10 days

0

8

Poulan 534812100

Drive Washer

$

$

Not available

9

Poulan 530014503

Gear Box Ass'y. (Inc. Gear Assy)

$

$

Not available

10

Poulan 534100680

Field Ass'y.

$

$

Not available

11

Poulan 530036407

Armature Ass'y.

$

$

Not available

12

Poulan 530036314

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

13

Poulan 534228804

Washer

$1.49

$

Usually ships in 3-10 days

0

14

Poulan 534101130

Bearing

$

$

Not available

15

Poulan 534101120

Clamp

$1.49

$

Usually ships in 3-10 days

0

16

Poulan 534101430

Cushon Handle

$

$

Not available

17

Poulan 530015533

Screw

$3.99

$

Usually ships in 3-10 days

0

Poulan 534068496

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 534036635

Warning Decal

Note: Not Shown.

$

$

Not available

Poulan 534061522

Carton for model:, HT1450 & HT1750 (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 534061524

Carton for model:, HT1950 & HT2250 (Not a serviceable part)

Note: Not Shown.

$

$

Not available
