HT 18410 (82819) - Snapper 41" Yard Tractor, 18hp Spindle Assembly (41" & 48" Outboard) (48" Center) Parts Diagram

41" Yard Tractor, 18hp

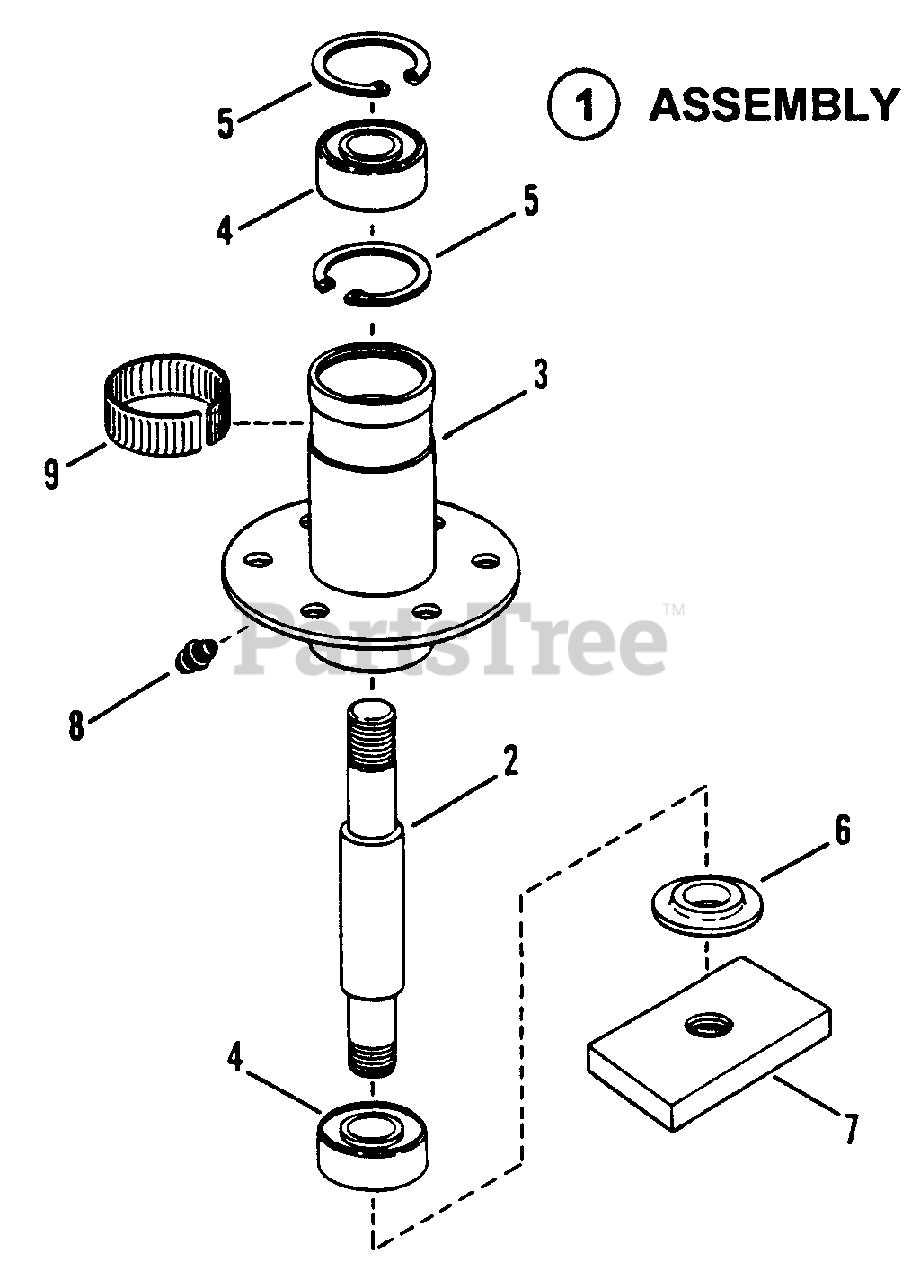

Spindle Assembly (41" & 48" Outboard) (48" Center) Parts Diagram

  • Title

1

Snapper 7051473

ASSEMBLY, Spindle
(Superseded to 7051473YP)

Note: (Incl. Items 2A, 3A & 4-8; 41" & 48" Outboard; Replaces 59622)

$162.99

$

Usually ships in 2-12 days

0

Snapper 7051528

ASSEMBLY, Spindle

Note: (Incl. Items 2B, 3B & 4-8; 48" center; Replaces 57343)

$

$

Not available

2

Snapper 7027632

SPINDLE, (6.06" Long)
(Superseded to 7027632YP)

Note: (41" & 48" Outboard)

$52.99

$

In Stock, only 1 left!

0

2

Snapper 7027641

SPINDLE, (7.25" Long)

Note: (48" Center)

$

$

Not available

3

Snapper 7051472

HOUSING, Spindle (4.25" Tall)
(Superseded to 7051472YP)

Note: (41" & 48" Outboard; Replaces 47825)

$92.99

$

Usually ships in 2-12 days

0

3

Snapper 7051527

HOUSING, Spindle (4.59" Tall)
(Superseded to 7051527YP)

Note: (48" Center; Replaces 47839)

$45.99

$

Usually ships in 2-12 days

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 17

0

7

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

Note: (Order separately)

$8.49

$

In Stock, Qty 5

0
