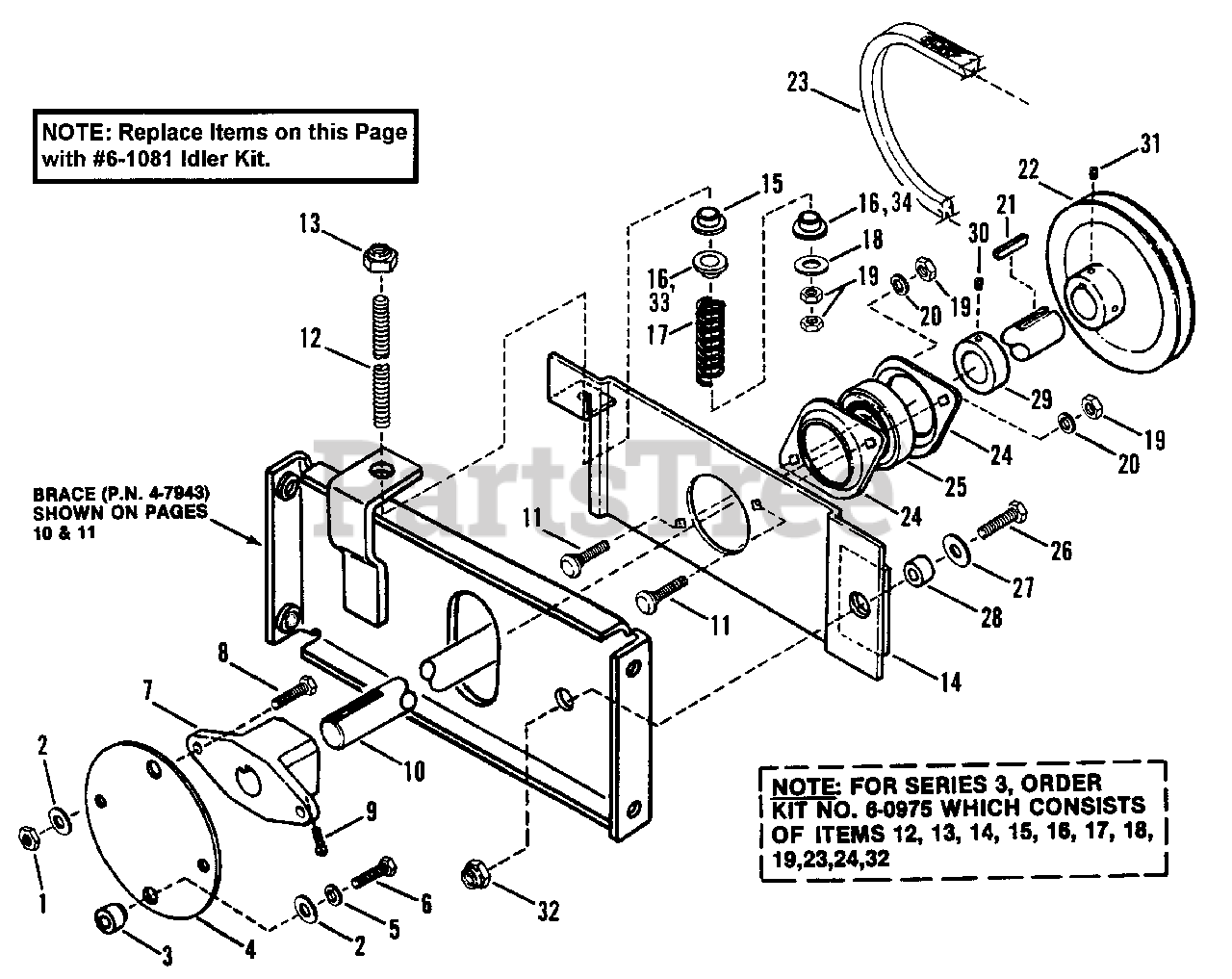

HT 18410 (82819) - Snapper 41" Yard Tractor, 18hp Drive Shaft Assembly Parts Diagram

41" Yard Tractor, 18hp

Drive Shaft Assembly Parts Diagram

  • Title

1

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade B or 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

2

Snapper 7032070

WASHER, 13/32" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

3

Snapper 7014803

SPACER, Flex Coupling
(Superseded to 7014803YP)

$45.99

$

In Stock, only 1 left!

0

4

Snapper 7014338

DISC, Flex Coupling
(Superseded to 7014338YP)

$74.99

$

In Stock, Qty 9

0

5

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

6

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" H.H.C.
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7018626

HUB, Flex Coupling
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

8

Snapper 7090138

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7090848

SCREW, 5/16-18 x 1/2" Square Head, Cup Point Set
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

10

Snapper 7034733

SHAFT, Drive

Note: Was 47968 (Replaces 27672)

$

$

Not available

11

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 16488

ROD, 5/16-18 x 8" Threaded

$

$

Currently unavailable

13

Snapper 7090851

NUT, 5/16-18 Hex Nyloc

$

$

Not available

14

Snapper 7061081

MOUNT, Bearing

Note: Was 40645 or 38344)

$

$

Not available

15

Snapper 7013321

BUSHING, Nylon
(Superseded to 7013321YP)

Note: (Series 4)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7016490

WASHER, Flange

Note: (Series 4)

$

$

Not available

17

Snapper 7023799

SPRING, Belt Tension
(Superseded to 7023799YP)

Note: (Replaces 15965)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7011763

WASHER, 5/16" Flat
(Superseded to 7011763SM)

Note: (Series 4)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7091511

NUT, 5/16-18 Hex, Gr. B or 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7013431

KEY, Pulley, 3/16 x 3/16 x 1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7023372

PULLEY, Drive, 4-1/4" O.D.
(Superseded to 7023372YP)

$52.99

$

Usually ships in 2-12 days

0

23

Snapper 7023900

BELT, Traction Drive
(Superseded to 7023900YP)

Note: (Replaces 15967)

$23.99

$

Usually ships in 2-12 days

0

24

Snapper 7016240

FLANGETTE
(Superseded to 7016240YP)

Note: (Replaces 13931)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7015971

BEARING
(Superseded to 7015971YP)

$

$

Not available

26

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

Note: (Series 4)

$3.99

$

In Stock, only 3 left!

0

27

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848 (Series 4)

$5.49

$

In Stock, only 2 left!

0

28

Snapper 7021740

SPACER, 5/8" O.D.

Note: (Series 4)

$

$

Not available

29

Snapper 7014625

COLLAR, Lock
(Superseded to 7014625YP)

Note: (Includes item 30)

$11.99

$

In Stock, Qty 11

0

30

Snapper 7090776

SCREW, 1/4-20 x 1/4" Socket Hd.
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0

31

Snapper 7090201

SCREW, 5/16-18 x 5/16" Socket Head
(Superseded to 7090201SM)

$

$

Not available

32

Snapper 91061

NUT, 5/16-24 Hex Nyloc

$

$

Currently unavailable

33

Snapper 22350

SPRING BUSHING, Upper

$

$

Currently unavailable

34

Snapper 22351

SPRING BUSHING, Lower

$

$

Currently unavailable

61081

Snapper 7061081

Idler Kit

Note: (To replace items on this page)

$

$

Not available

60975

Snapper 60181

Kit, Series 3

Note: Was 60975 (Consists of items 12-19, 23, 24, 32)

$

$

Currently unavailable

47943

Snapper 7047943

Brace
(Superseded to 7047943YP)

$69.99

$

Usually ships in 2-12 days

0
