HT 1700 - Paramount Hedge Trimmer, Electric HEDGE TRIMMER ASSEMBLY Parts Diagram

Hedge Trimmer, Electric

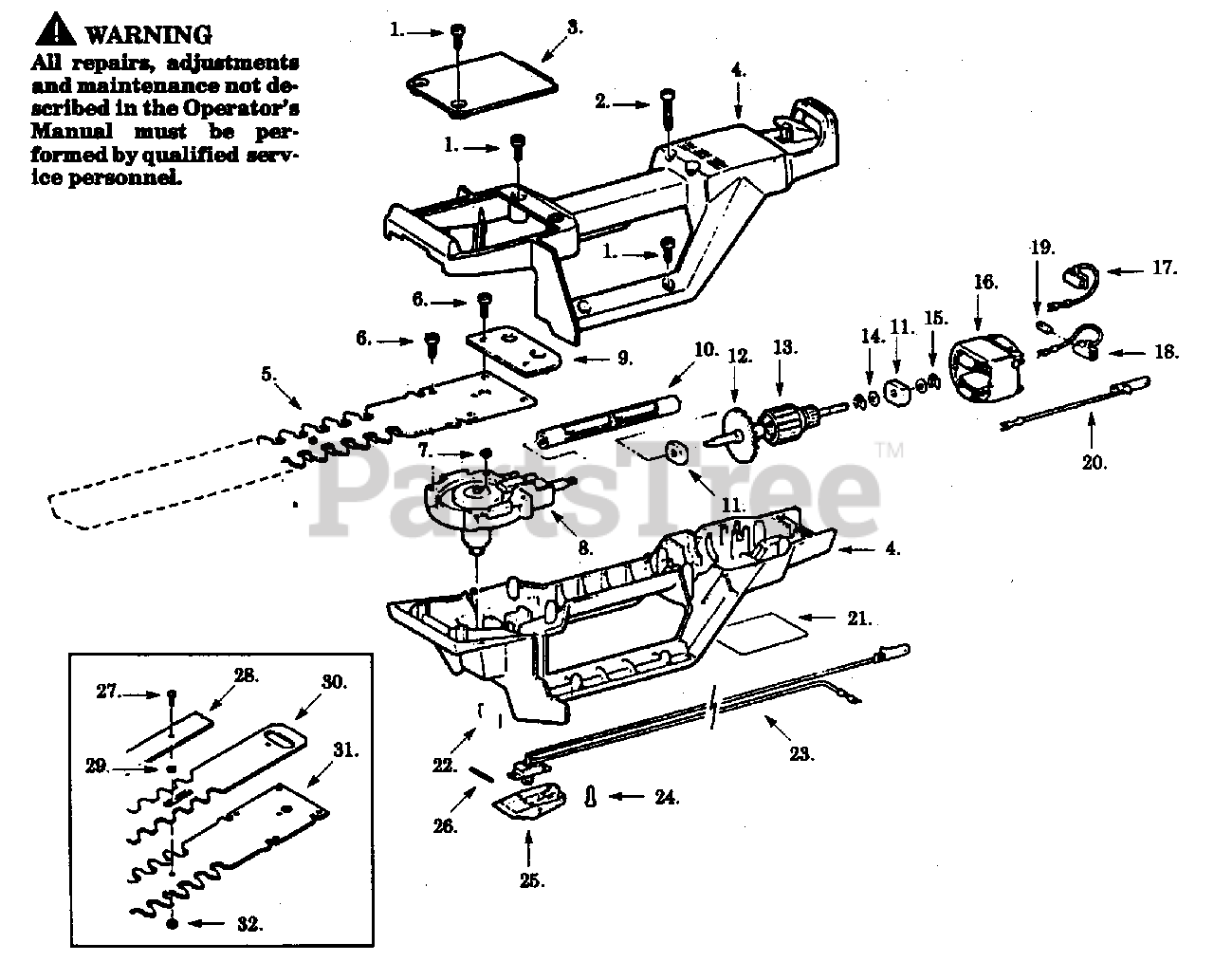

HEDGE TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534790302

Screw

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 534790300

Screw

$

$

Not available

3

Poulan 534891302

Gear Box Cover

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534878402

Housing Set

$21.99

$

Usually ships in 3-10 days

0

5

Poulan 534908801

Blade Ass'y.-14" Model HT1400

$

$

Not available

5

Poulan 534908802

Blade Ass'y.-17" Model HT1700

$

$

Not available

5

Poulan 534908803

Blade Ass'y.-19" Model HT1900

$

$

Not available

5

Poulan 534908804

Blade Ass'y.-22" Model HT2200

$

$

Not available

6

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 534812100

Washer

$

$

Not available

8

Poulan 534930201

Gear Box Ass'y.

$60.99

$

Usually ships in 3-10 days

0

9

Poulan 534934900

Plate

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 534810300

Drive Shaft

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 534808400

Bearing

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534811501

Impeller Fan

$

$

Not available

13

Poulan 534946800

Armature/Fan Ass'y.

$27.99

$

Usually ships in 3-10 days

0

14

Poulan 534494606

Washer

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

16

Poulan 534294702

Field Ass'y.

$24.99

$

Usually ships in 3-10 days

0

17

Poulan 534935502

Brush Holder/Wire Ass'y.

$

$

Not available

18

Poulan 534935501

Brush Holder/Wire Ass'y.

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 534200018

Brush

$

$

Not available

20

Poulan 534866301

Lead Wire Ass'y.

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534878500

Warning Label-14" Model HT1400

$

$

Not available

21

Poulan 534878600

Warning Label-17" Model HT1700

$

$

Not available

21

Poulan 534878700

Warning Label-19" Model HT1900 (Not a serviceable part)

$

$

Not available

21

Poulan 534878800

Warning Label-22" Model HT2200

$

$

Not available

22

Poulan 534879800

Danger Label (Not a serviceable part)

$

$

Not available

23

Poulan 534935301

Switch/Wire Terminal Ass'y.

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 534826801

Screw

$

$

Not available

25

Poulan 534811700

Switch Cap

$1.49

$

Usually ships in 3-10 days

0

26

Poulan 534814200

Groove Pin

$1.49

$

Usually ships in 3-10 days

0

27

Poulan 534817900

Screw

$

$

Not available

28

Poulan 534805901

Retaining Plate-14" Model HT1400

$

$

Not available

28

Poulan 534805902

Retaining Plate-17" Model HT1700

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 534805903

Retaining Plate-19" Model HT1900

$

$

Not available

28

Poulan 534805904

Retaining Plate-22" Model HT2200

$

$

Not available

29

Poulan 534812202

Spacer

$17.99

$

Usually ships in 3-10 days

0

30

Poulan 534805801

Cutting Blade-14" Model HT1400

$

$

Not available

30

Poulan 534805802

Cutting Blade-17" Model HT1700

$

$

Not available

30

Poulan 534805803

Cutting Blade-19" Model HT1900

$

$

Not available

30

Poulan 534805804

Cutting Blade-22" Model HT2200

$

$

Not available

31

Poulan 534805701

Stationary Blade-14" Model HT1400

$20.99

$

Usually ships in 3-10 days

0

31

Poulan 534805702

Stationary Blade-17" Model HT1700

$23.99

$

Usually ships in 3-10 days

0

31

Poulan 534805703

Stationary Blade-19" Model HT1900

$

$

Not available

31

Poulan 534805704

Stationary Balde-22" Model HT2200

$

$

Not available

32

Poulan 534393502

Nut

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534886060

Operator Manual

Note: Not Shown.

$

$

Not available
