HSS928 A AWD (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) ENGINE BED (2) Parts Diagram

28" Snow Blower, Made in Japan

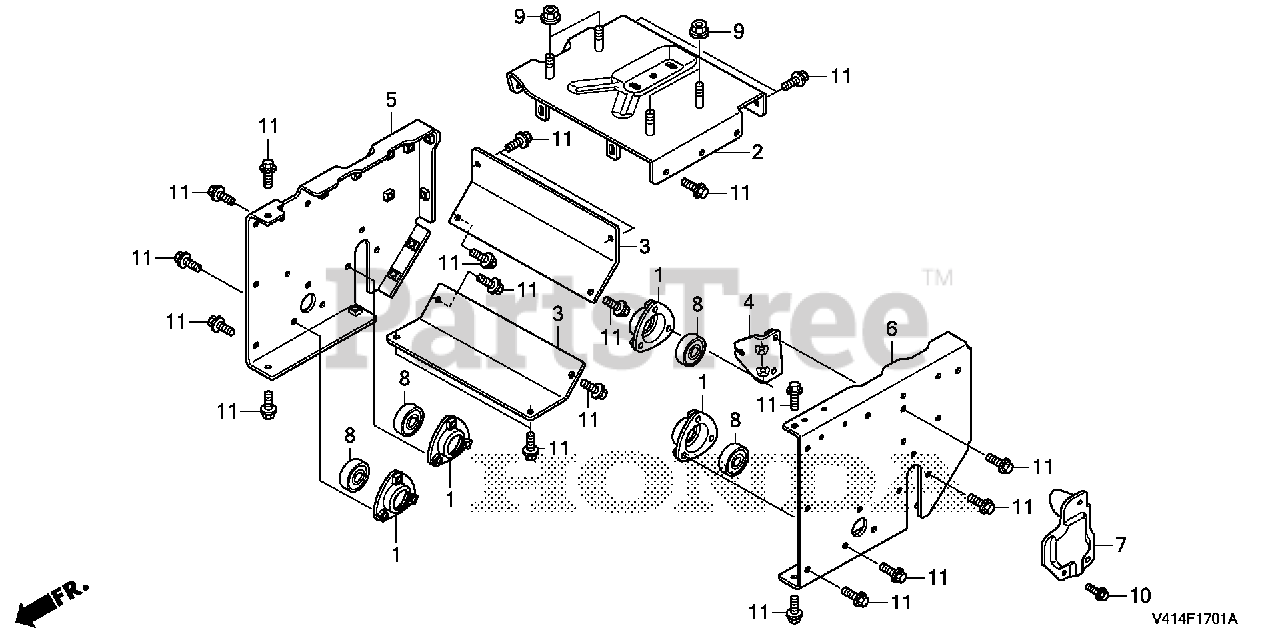

ENGINE BED (2) Parts Diagram

  • Title

1

Honda 23380-V45-A00

HOLDER, BEARING

$18.99

$

Usually ships in 3-6 days

0

2

Honda 51110-V45-A20

BED, ENGINE

Note: Use up to Frame SN 1016792.

$47.99

$

Usually ships in 3-6 days

0

2

Honda 51110-V45-A21

BED, ENGINE

Note: Use from Frame SN 1016793.

$57.99

$

Usually ships in 3-6 days

0

3

Honda 51114-V45-A00

STAY A, ENGINE BED

$36.99

$

Usually ships in 3-6 days

0

4

Honda 51142-V45-A00

STAY, CHANGE CABLE

$4.99

$

Usually ships in 3-6 days

0

5

Honda 51171-V45-B00

STAY, R. ENGINE BED

$37.99

$

Usually ships in 3-6 days

0

6

Honda 51181-V45-B00

STAY, L. ENGINE BED

$37.99

$

Usually ships in 3-6 days

0

7

Honda 61158-V45-A00

BRACKET, MOTOR COVER

$8.99

$

Usually ships in 3-6 days

0

8

Honda 91051-V45-A00

BEARING, RADIAL BALL (6203-19.05)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90303-428-900

NUT, FLANGE (10MM)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0

11

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0
