HSS928 A ATD (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) CRAWLER (2) Parts Diagram

28" Snow Blower, Made in Japan

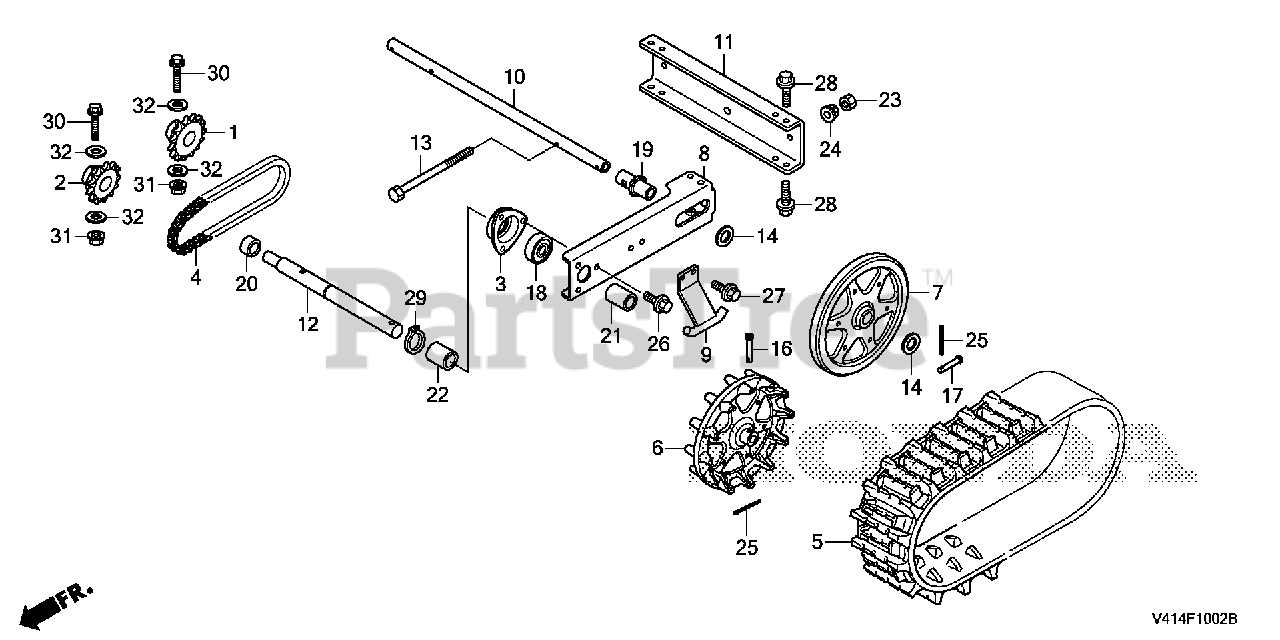

CRAWLER (2) Parts Diagram

  • Title

1

Honda 23121-V45-A00

SPROCKET, DRIVE (15T)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 23281-V45-A00

SPROCKET, DRIVEN (13T)

$10.99

$

Usually ships in 3-6 days

0

3

Honda 23380-V45-A00

HOLDER, BEARING

$18.99

$

Usually ships in 3-6 days

0

4

Honda 23851-V45-A01

CHAIN, DRIVE

$9.99

$

In Stock, only 2 left!

0

5

Honda 42755-V45-A01

CRAWLER (58.5X21)

$191.99

$

Usually ships in 3-6 days

0

6

Honda 42756-V45-A00ZA

SPROCKET, CRAWLER *NH314* (CONDUCT GRAY)

$51.99

$

Usually ships in 3-6 days

0

7

Honda 42757-V45-A00ZA

ROLLER, CRAWLER *NH314* (CONDUCT GRAY)

$19.99

$

In Stock, only 3 left!

0

8

Honda 42762-V45-A00

PLATE, CRAWLER

$33.99

$

Usually ships in 3-6 days

0

9

Honda 42772-V45-A00

GUIDE, CRAWLER

$27.99

$

Usually ships in 3-6 days

0

10

Honda 42773-V45-A00

PIPE, CRAWLER

$49.99

$

Usually ships in 3-6 days

0

11

Honda 42783-V45-A00

BAR, CRAWLER PLATE

$45.99

$

Usually ships in 3-6 days

0

12

Honda 44321-V45-A00

SHAFT, FR. AXLE

$17.99

$

In Stock, only 2 left!

0

13

Honda 90124-V45-A00

BOLT, HEX. (8X110)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90509-V45-A10

WASHER, PLAIN (22.5MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90755-V45-A00

PIN (6X34)

$0.99

$

In Stock, Qty 20+

0

17

Honda 90759-V45-A00

PIN, SPECIAL (6X29)

$1.49

$

In Stock, Qty 10

0

18

Honda 91051-V45-A00

BEARING, RADIAL BALL (6203-19.05)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 91553-V45-A00

COLLAR, CRAWLER PIPE

$8.49

$

Usually ships in 3-6 days

0

20

Honda 91559-V45-A00

COLLAR, CRAWLER SPROCKET

$1.99

$

Usually ships in 3-6 days

0

21

Honda 91560-V45-A00

COLLAR B, CRAWLER SPROCKET

$2.49

$

Usually ships in 3-6 days

0

22

Honda 91561-V45-A00

COLLAR C, CRAWLER SPROCKET

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

24

Honda 94071-08080

NUT-WASHER (8MM) (Honda Code 0612713).

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

26

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

27

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95701-08020-07

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 94514-19000

CIRCLIP (OUTER) (19)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 90102-V45-A01

BOLT, FLANGE (6X50)

$0.99

$

In Stock, Qty 10

0

31

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

32

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0
