HSS928 A ATD (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) CONTROL Parts Diagram

28" Snow Blower, Made in Japan

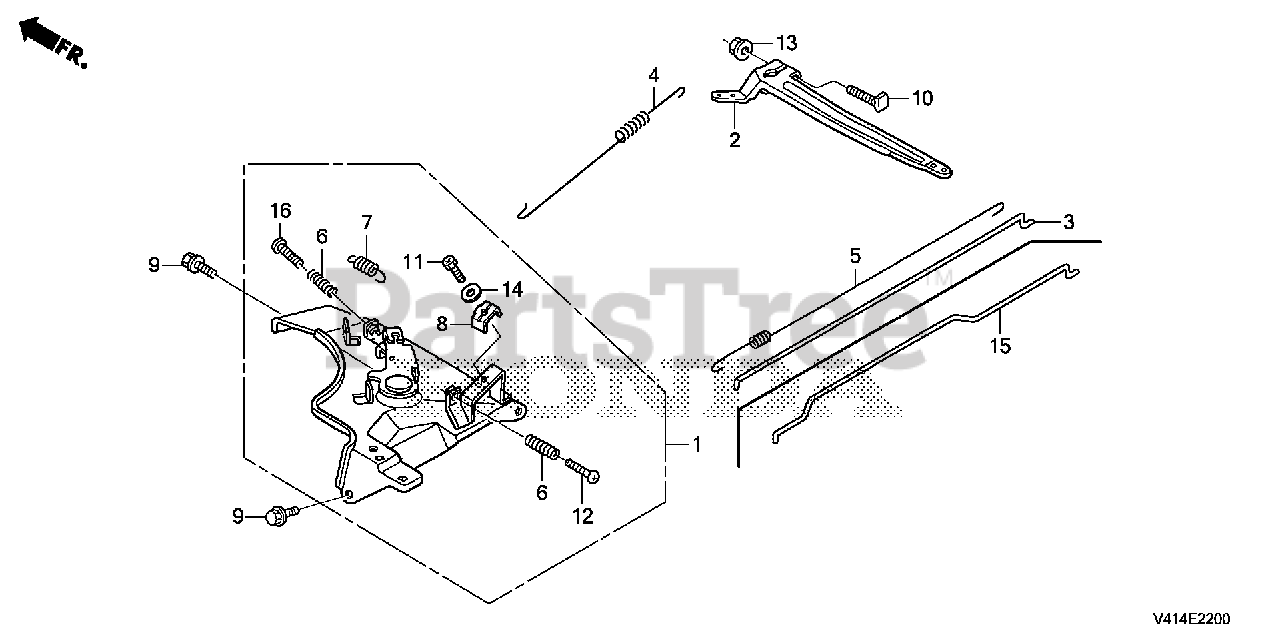

CONTROL Parts Diagram

  • Title

1

Honda 16500-Z1D-305

CONTROL ASSY. (COO)
(Superseded to 16500-Z1D-H10)

$88.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZE2-000

ARM, GOVERNOR (Honda Code 2026003).

$18.99

$

Usually ships in 3-6 days

0

4

Honda 16561-ZE2-000

SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)

$5.99

$

In Stock, only 1 left!

0

5

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN (Honda Code 2026037).

$4.99

$

In Stock, only 1 left!

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

7

Honda 16592-883-310

SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 0743203).

$3.49

$

In Stock, only 2 left!

0

8

Honda 16617-ZE3-J10

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

10

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

11

Honda 92301-05022-0A

BOLT, RECESSED (5X22)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 93500-05032-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X32) (Honda Code 0219923).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

14

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 3 left!

0

15

Honda 16555-ZE2-780

ROD, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

16

Honda 93500-05035-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X35) (Honda Code 0331405).

$1.49

$

In Stock, only 3 left!

0
